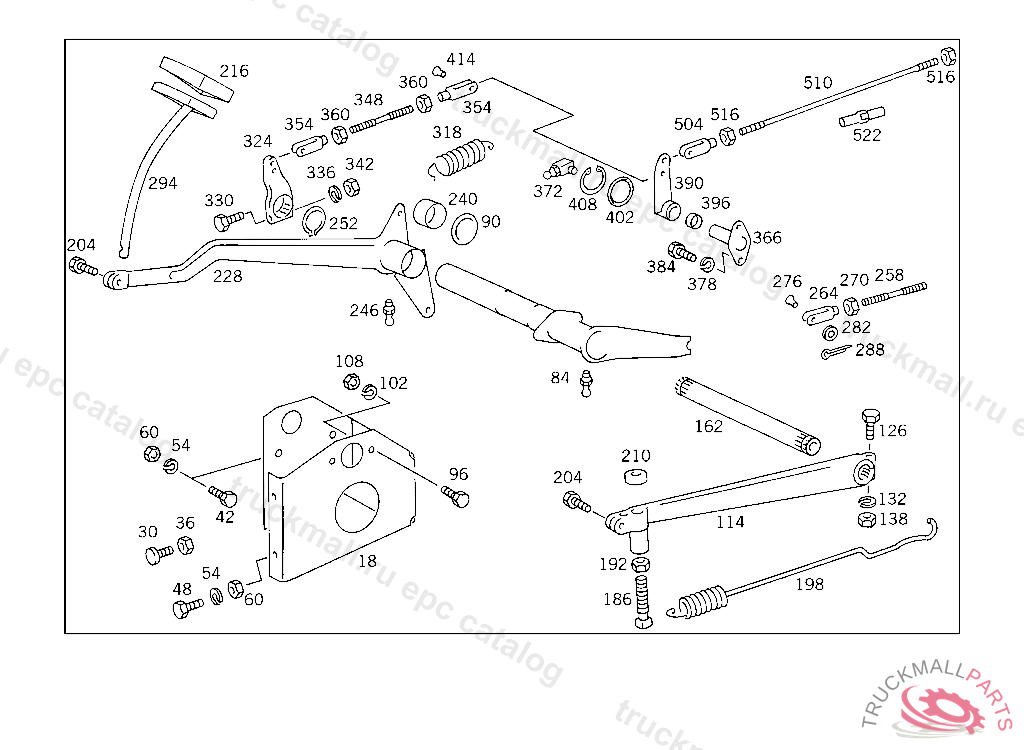

Поз.
Артикул
Описание
18
BEARING BRACKET , USED WITH AIR BRAKE,FROM CHASSIS 209476 ALSO INSTALLED ON 209273,209446,209461,209465,209471,209474.
30
STOP CLUTCH PEDAL STOP
36
NUT TIGHTENER PULLEY TO SUPPORT
36
NUT
42
SCREW BRACKET TO FRAME SIDE MEMBER
48
SCREW BRACKET TO BUMPER,LEFT M 10X25
48
SCREW CLAMP TO EXHAUST PIPE
54
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
60
NUT BATTERY CABLE
60
NUT BRACKET TO SUPPORT AND TO END PIECE
84
GREASE NIPPLE PROTECTIVE TUBE
90
FITTED WASHER ACCELERATOR PEDAL
96
SCREW PIPE CLAMP
96
SCREW STEERING SHAFT BEARING TO CAB M 8X20
102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
108
NUT , Replaced By: N304032008006
114
PEDAL CLUTCH
126
SCREW AIR INTAKE PIPE TO BRACKET
132
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
138
NUT , Replaced By: N304032008006
162
SHAFT CLUTCH PEDAL
186
SCREW CLUTCH PEDAL RELEASE SPRING
192
NUT COMPRESSED AIR LINE THRU FRAME,5 395034
198
SPRING CLUTCH PEDAL
204
SCREW BRACKET TO BUMPER,LEFT M 10X25
204
SCREW CLAMP TO EXHAUST PIPE
210
SEAL WASHER PEDAL PLATE TO PEDAL
216
PAD BRAKE PEDAL
228
PEDAL BRAKE, USED WITH AIR BRAKE,FROM CHASSIS 209476 ALSO INSTALLED ON 209273,209446,209461,209465,209471,209474.
240
BUSHING
246
GREASE NIPPLE PROTECTIVE TUBE
252
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
258
ROD FROM BRAKE PEDAL TO BRAKE VALVE
264
YOKE HYDRAULIC PUMP CONSOLE
270
NUT BATTERY CABLE
270
NUT BRACKET TO SUPPORT AND TO END PIECE
276
PIN PULL ROD TO CLUTCH LEVER
282
WASHER PISTON ROD TO LEVER
288
COTTER PIN PISTON ROD TO BRAKE PEDAL
294
PEDAL PLATE CLUTCH PEDAL, USED WITH AIR BRAKE,FROM CHASSIS 209476 ALSO INSTALLED ON 209273,209446,209461,209465,209471,209474.
294
PEDAL PLATE BRAKE, USED WITH AIR BRAKE,FROM CHASSIS 209476 ALSO INSTALLED ON 209273,209446,209461,209465,209471,209474.
318
SPRING BRAKE PEDAL RELEASE SPRING
324
LEVER CLUTCH
330
SCREW AIR SPRING VALVE TO BRACKET
330
SCREW VALVE TO BRACKET
336
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
342
NUT , Replaced By: N304032008006
348
PULL ROD FROM LEVER AT CLUTCH PEDAL SHAFT TO INTERMEDIATE LEVER I
354
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
360
NUT , Replaced By: N304032008006
366
PIVOT PIN ,13 036670
372
GREASE NIPPLE
378
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
384
SCREW PIPE CLAMP
384
SCREW STEERING SHAFT BEARING TO CAB M 8X20
390
LEVER LEVER I
396
BUSHING MANUAL CONTROL,D 249954
402
WASHER PEDAL BEARING
408
LOCK RING
414
PIN SHIFT LEVER TO PIVOT PIN
504
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
510
PULL ROD FROM INTERMEDIATE LEVER I TO TURNBUCKLE NUT
516
NUT , Replaced By: N304032008006
522
SPANNSCHLOSS. NUT
999
BUSHING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3529920701
999
BEARING CLUTCH PEDAL AND BRAKE PEDAL
999
ROD FROM BRAKE PEDAL TO BRAKE VALVE, FOR USE WITH DAIMLER-BENZ BODY UP TO IDENT NO. 039742 NOT FOR USE WITH DAIMLER-BENZ BODY UP TO IDENT NO. 039676 EXCEPT FOR 031261,033017,033254,039439,039689,039699,039701,039709,039713,039723,039726,039729,039740.
