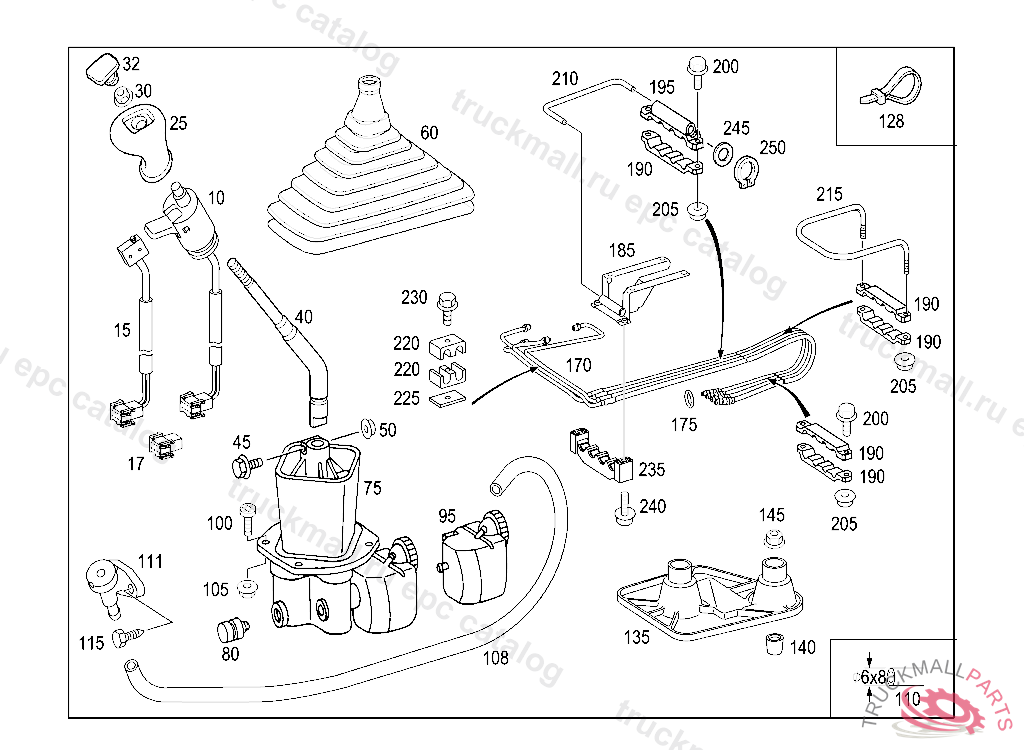

Поз.
Артикул
Описание
10
SWITCH SPLITTER BOX
15
CABLE HARNESS SPLITTER BOX
17
PIN BUSHING HOUSING 4-POLE
25
HANDLE (SHIFT LEVER HANDLE)
30
NUT LINKAGE TO TRANSMISSION AND SHIFTING TUBE
32
COVER SHIFT LEVER KNOB,K 189883
32
EXPANSION PLUG WITH GEAR INDICATOR
40
SHIFT LEVER
40
SHIFT LEVER
45
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
50
NUT
60
BOOT , NO.5C38I I I I II
75
TRANSMISSION CONTROL UNIT SENDER UNIT
75
SHIFT MECHANISM SENDER UNIT, Replaced By: A0002607898
80
PRESSURE SENSOR , Replaced By: A9705420218
80
PRESSURE SENSOR
95
EXPANSION TANK
100
SCREW BRACKET TO COVERING
105
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
105
NUT , Replaced By: N913023006001
105
NUT STRAP TO BRACKET
108
HOSE SHIFT MECHANISM
110
PLASTIC PIPE RISING PIPE 4X6 MM
111
FLANGE AT COWL
115
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
128
LOOM TIE LINE MOUNTING 280 MM
128
CABLE TIE BRANCH-OFF LINE FASTENING FOR RPM SENSOR
135
SLIDE AT CAB FLOOR
140
BUSHING AT CAB FLOOR
145
NUT COVERING TO CAB FIRE WALL
170
OIL PIPE CONTROL UNIT TO ENGINE SEPARATION PIONT
175
SEAL RING LINE CONNECTION
185
BRACKET HYDRAULIC LINE MOUNTING PARTS
190
CLAMPING PIECE HYDRAULIC LINE MOUNTING PARTS
195
CLAMPING PIECE HYDRAULIC LINE MOUNTING PARTS
200
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
205
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
210
BRACKET HYDRAULIC LINE MOUNTING PARTS
215
BRACKET HYDRAULIC LINE MOUNTING PARTS
220
CLAMPING PIECE LINE MOUNTING
225
PLATE HYDRAULIC LINE MOUNTING PARTS
230
HEXALOBULAR BOLT. SCREW BATTERY CABLE TO BRACKET M6X40
235
CLAMPING PIECE HYDRAULIC LINE MOUNTING PARTS
240
SCREW , Replaced By: N000000001479
245
SHIM. FITTED WASHER HYDRAULIC LINE MOUNTING PARTS
250
LOCK RING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
