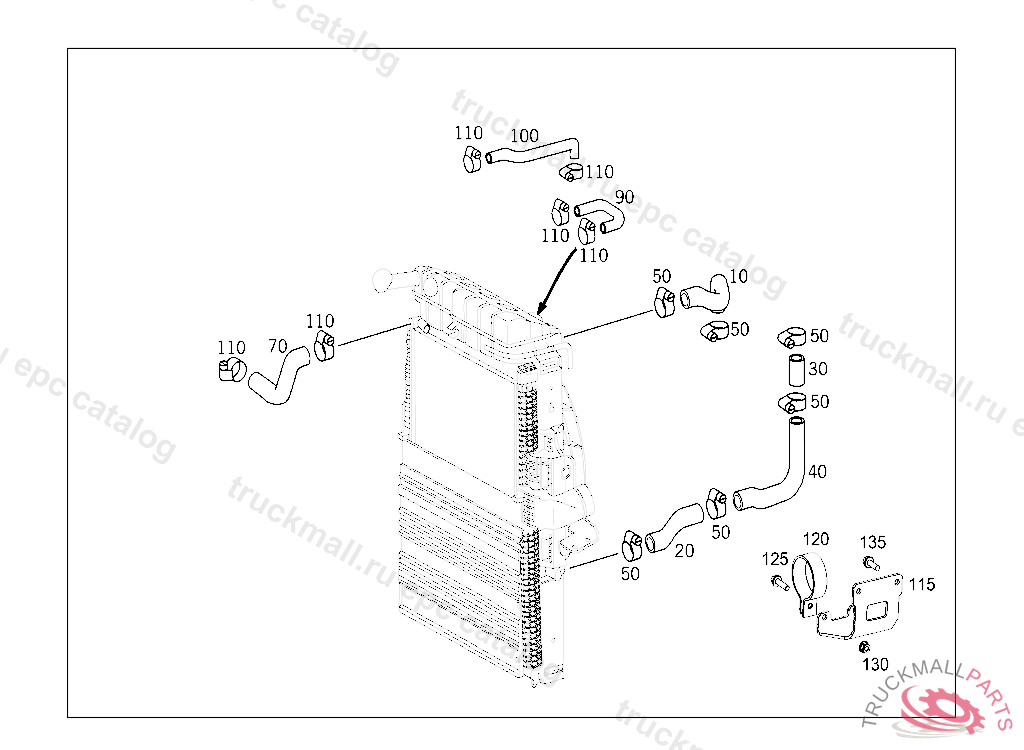

Поз.
Артикул
Описание
10
10
10
20
20
30
HOSE FROM RADIATOR TO WATER PUMP, 415 5 014668 416 5 000515 417 4 972023
40
COOLING WATER PIPE RETURN
40
40
50
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
50
CLAMP HOSE TO RETARDER 60-80X13 MM
70
90
100
110
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
110
CLAMP HOSE TO INTAKE MANIFOLD 25-40X13MM,V 207570
110
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
110
CLAMP25-40X13 MM
115
115
115
115
120
CLAMP60.5 MM,4 613839
125
SCREW SHIFT LEVER TO BRACKET M8X30
125
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
130
NUT HORN TO BRACKET M8
135
SCREW , Replaced By: N910143008002
135
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
