Поз.
Артикул
Описание
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5

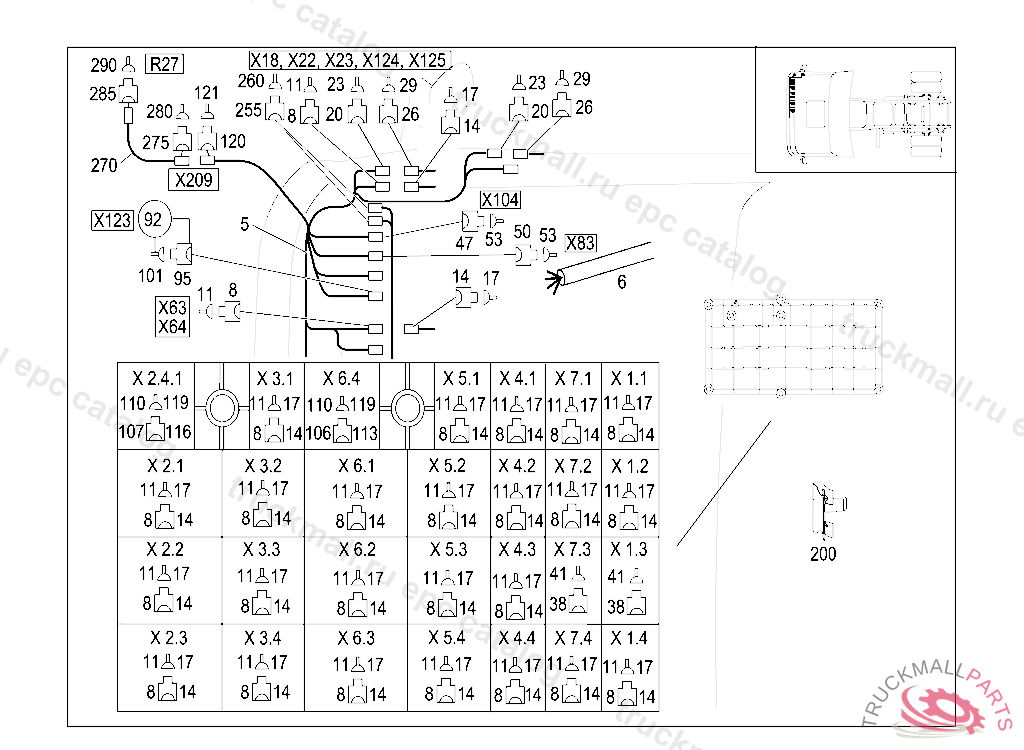

ELECTRICAL WIRING HARNESS . , BM375.850, WHEN ORDERING, SPECIFY THE VARIANT NUMBER XVK.. ...... FROM VEDOC STATE IDENT NO. WHEN ORDERING
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
ELECTRIC CABLE WITH CASING 2X2.5 + 2X1MM2, ORDER BY THE METER
6
ELECTRIC CABLE TWISTED 4X1MM2, ORDER BY THE METER
6
ELECTRIC CABLE TWISTED 2X1MM2, ORDER BY THE METER
6
ELECTRIC CABLE TWISTED 3X0.75MM2, ORDER BY THE METER
6
ELECTRIC CABLE WITH CASING 4X1MM2, ORDER BY THE METER
8
RECEPTACLE HOUSING. PIN BUSHING HOUSING 18-POLE,GREY X1,X2,X3, ST1,ST2, INEVENT OF REPAIR, REPLACE CONNECTOR COMPLETELY
8
RECEPTACLE HOUSING. PIN BUSHING HOUSING21 PIN
11
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
11
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
14
PLUG HOUSING PLUG CONNECTION,WIRING HARNESS FOR ROOF/INSTRUMENT SUPPORT X124, X125, 21 PIN
14
PLUG HOUSING PLUG CONNECTION,WIRING HARNESS FOR DRIVER + CO-DRIV. DOOR/INSTR. SUPPORT X22,X23, 18PIN
17
FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
17
FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
20
PIN BUSHING HOUSING AUTSIDE REARVIEW MIRROR ADJUSTMENT SWITCH 12 PIN, INEVENT OF REPAIR, REPLACE CONNECTOR COMPLETELY
20
RECEPTACLE HOUSING. PIN BUSHING HOUSING 18-POLE,GREY X1,X2,X3, ST1,ST2, INEVENT OF REPAIR, REPLACE CONNECTOR COMPLETELY
20
RECEPTACLE HOUSING. PIN BUSHING HOUSING LIGHT SWITCH 15 PIN
23
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
23
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
26
PLUG HOUSING STEERING COLUMN MOUNTED SWITCH 15 PIN
26
PLUG HOUSING PLUG CONNECTION,WIRING HARNESS FOR DRIVER + CO-DRIV. DOOR/INSTR. SUPPORT X22,X23, 12PIN
26
PLUG HOUSING PLUG CONNECTION,WIRING HARNESS FOR DRIVER + CO-DRIV. DOOR/INSTR. SUPPORT X22,X23, 18PIN
29
FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
29
FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
38
PLUG HOUSING PLUG CONNECTION,WIRING HARNESS FOR DRIVER + CO-DRIV. DOOR/INSTR. SUPPORT X22,X23, 12PIN
41
FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
41
FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
47
PIN BUSHING HOUSING9 PIN
50
PIN BUSHING HOUSING9 PIN
53
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
53
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
92
TS SOCKET PARTS KIT. PARTS KIT PRESSURE SENDER UNIT 7 PIN, TO BE ADAPTED DURING ASSEMBLY
95
SOCKET HOUSING. PLUG SOCKET 7-POLE
101
ROUND PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5.1.0 MM2
101
WIRE SEAL
101
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
101
ROUND PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
101
GASKET. BLIND PLUG
106
PIN BUSHING HOUSING PLUG CONNECTION,WIRING HARNESS FOR ENGINE/INSTRUMENT SUPPORT X2.4, 2PIN
107
PIN BUSHING HOUSING PLUG CONNECTION,WIRING HARNESS FOR ENGINE/INSTRUMENT SUPPORT X2.4, 2PIN
110
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
110
FEMALE CONTACT. CONTACT SPRING4.0 MM2
110
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 4.0-6.0 MM2
110
CONTACT SPRING1-2.5 MM2
113
PLUG HOUSING PLUG CONNECTION,WIRING HARNESS FOR ENGINE/INSTRUMENT SUPPORT X2.4, 2PIN
116
PLUG HOUSING PLUG CONNECTION,WIRING HARNESS FOR ENGINE/INSTRUMENT SUPPORT X2.4, 2PIN
119
FLAT PLUG TERMINAL. FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 4.0-6.0 MM2
120
SOCKET HOUSING. PIN BUSHING HOUSING FRONT MIRROR R 27, 2 PIN
121
CONTACT BUSHINGR 27, 0.75 MM2
200
CLIP ADAPTER LINE FOR TOLL COLLECT
255
PIN BUSHING HOUSING PIN BUSHING 5.3 MM
260
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
270
ELECTRIC CABLE FRONT MIRROR X 209- R 27
275
PIN BUSHING HOUSING CONNECTOR, DASH SUPPORT WIRING HARNESS FRONT MIRROR HEATING X 209, 2 PINCODE A
280
PLUG PINX 209, 0.75 MM2
285
SOCKET HOUSING. PIN BUSHING HOUSING FRONT MIRROR R 27, 2 PIN
290
CONTACT BUSHINGR 27, 0.75 MM2
