Поз.
Артикул
Описание

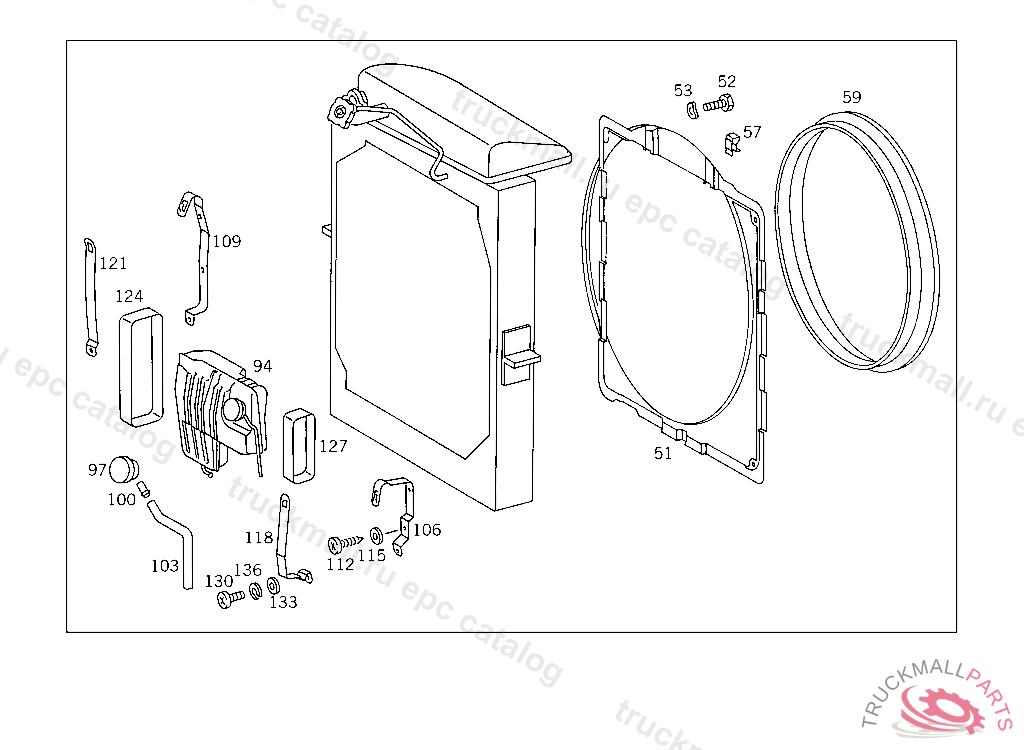

51
FAN SHROUD RADIATOR
52
SCREW COVER PLATE TO BRACKET
53
SPRING WASHER LICENSE PLATE TO BRACKET
57
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
59
BOOT FAN SHROUD TO FAN RING
94
TANK CAB,FRONT,5 129373
94
TANK ,5 129372, Replaced By: A6205000349, +001A6205012882, +001N916017020000
97
RADIATOR CAP
100
DRAIN PIPE
103
HOSE OVERFLOW
103
HOSE , Replaced By: A0139978682
106
BRACKET EXPANSION TANK,LEFT
109
BRACKET EXPANSION TANK,RIGHT
112
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
115
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
118
STRAP EXPANSION TANK,LEFT
121
STRAP EXPANSION TANK,RIGHT
124
SHIM EXPANSION TANK,LEFT
127
SHIM EXPANSION TANK,RIGHT
130
SCREW CLAMP MOUNTING M 6X16
130
SCREW , Replaced By: N000000001146
133
WASHER , Replaced By: N009021006208
136
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
HOSE , Replaced By: A6205012882
