Поз.
Артикул
Описание

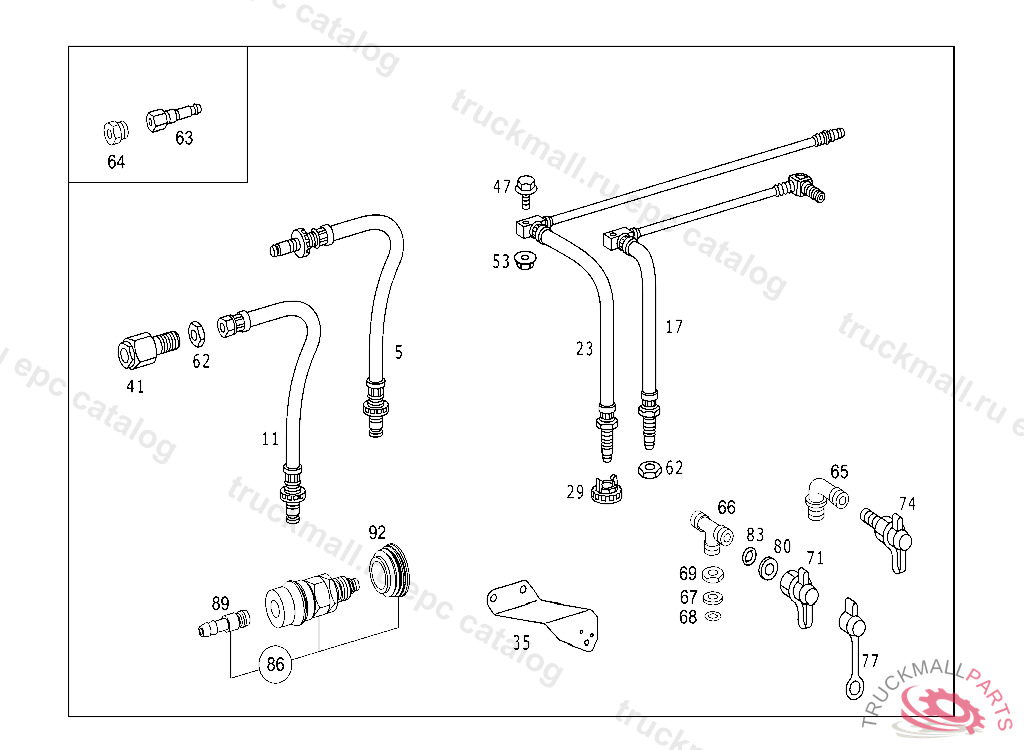

5
BRAKE HOSEVOSS 232
5
5
5
BRAKE HOSE , Replaced By: A0004203048, +002A0009974834
5
5
BRAKE HOSE720MM
11
11
17
17
23
BRAKE HOSE DRUM BRAKE ON FRONT AXLE, LEFT AND RIGHT VOSS 232
23
29
LOCK WITH SQUARE SOCKET
35
BRACKET FRONT AXLE BRAKE HOSE,LEFT
35
BRACKET TO RIGHT FRONT WHEEL BRAKE HOSE
41
CONNECTOR BRAKE HOSE TO BRACKET
47
SCREW , Replaced By: N000000001479
53
NUT BRACKET TO FIRE WALL
62
NUT SHIFTING ROD UNLOCKING HIGH-PRESSURE HOSE
71
TEST CONNECTION
71
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
71
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
74
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
74
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
77
PLUG
80
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
80
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
83
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
83
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
86
COUPLING COMPRESSED-AIR CONNECTION IN CAB
89
COUPLING COMPRESSED-AIR CONNECTION IN CAB
92
CUP COMPRESSED-AIR CONNECTION IN CAB
