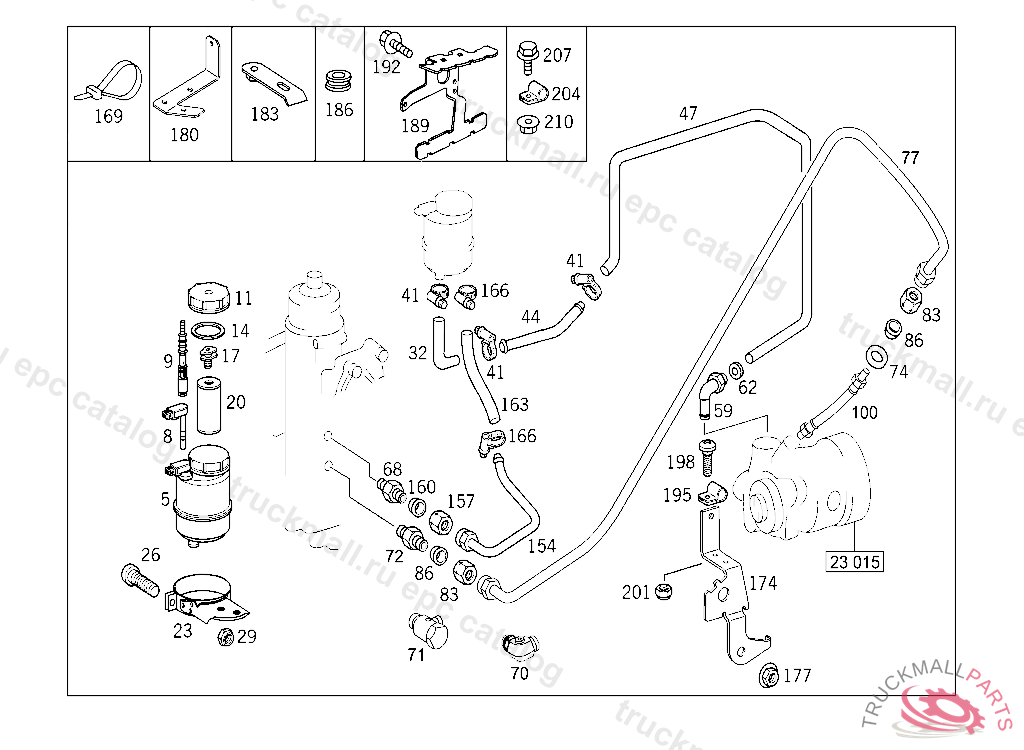

Поз.
Артикул
Описание
5
TANK OIL
5
TANK (OIL TANK BREATHING)
8
OIL DIPSTICK
9
OIL LEVEL CHECK PIPE
11
FILLER CAP , Replaced By: A0004661268
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
23
BRACKET OIL TANK
26
SCREW BRACKET TO CROSS MEMBER
26
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
29
NUT HEATING PIPE TO BRACKET
32
HOSE , Replaced By: A6254660381
32
HOSE FROM OIL TANK TO SUCTION LINE
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
44
44
47
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
47
HOSE SUCTION LINE CONNECTION, ORDER BY THE METER
47
HOSE , Replaced By: A3859971582
59
59
ELBOW FITTING
62
SEAL RING SUCTION LINE TO PUMP
62
68
FITTING BETWEEN THE LINES
70
70
FITTING RETURN HOSE AT STEERING GEAR
71
SCREW CONNECTION DELIVERY LINE TO PUMP
71
72
FITTING DELIVERY LINE TO STEERING GEAR M22 X1.5/16 X 1.5
72
FITTING CONTROL DEVICE CONNECTION: P2
72
SCREW-IN FITTING , Replaced By: A0029971572
74
SEAL RINGTO 006 997 00 72
77
77
77
77
77
83
NUT LINE CONNECTIONS AL 15
83
UNION NUT LINE CONNECTION, Replaced By: N000000006239
86
GLAND , Replaced By: A0019901967
86
SEAL CONE LINE CONNECTION
86
GLAND COMPRESSED AIR LINES
100
HOSE HIGH PRESSURE HOSE
100
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,225537
100
100
HOSE (DELIVERY LINE),FROM PUMP TO STEERING 420 MM,225249
154
154
154
157
UNION NUT LINE CONNECTION
160
GLAND LINE CONNECTION
163
HOSE
163
HOSE FROM RETURN LINE TO OIL TANK
163
HOSE RETURN LINE CONNECTION 500MM, LENGTH AVAILABLE: 2000 MM
166
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
169
CABLE TIE. LOOM TIE , Replaced By: A0019978490
174
174
177
NUT BRACKET TO SIDE MEMBER M12X1.5
180
180
180
183
186
GROMMET LINE PASSAGE AT SIDE MEMBER
189
189
BRACKET AT STEERING GEAR LEFT
192
SCREW SPEED SENSOR TO REAR AXLE
192
SCREW , Replaced By: N910143008000
195
CLAMP LINE MOUNTING
198
HEXAGON HEAD BOLT
201
NUT HORN TO BRACKET M8
204
CLAMP LINE MOUNTING
204
CLAMP LINE MOUNTING
204
PIPE CLAMP LINE MOUNTING 15-20MM
207
SCREW BRACKET AND CLAMP M6X20
210
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
