Поз.
Артикул
Описание
10
10

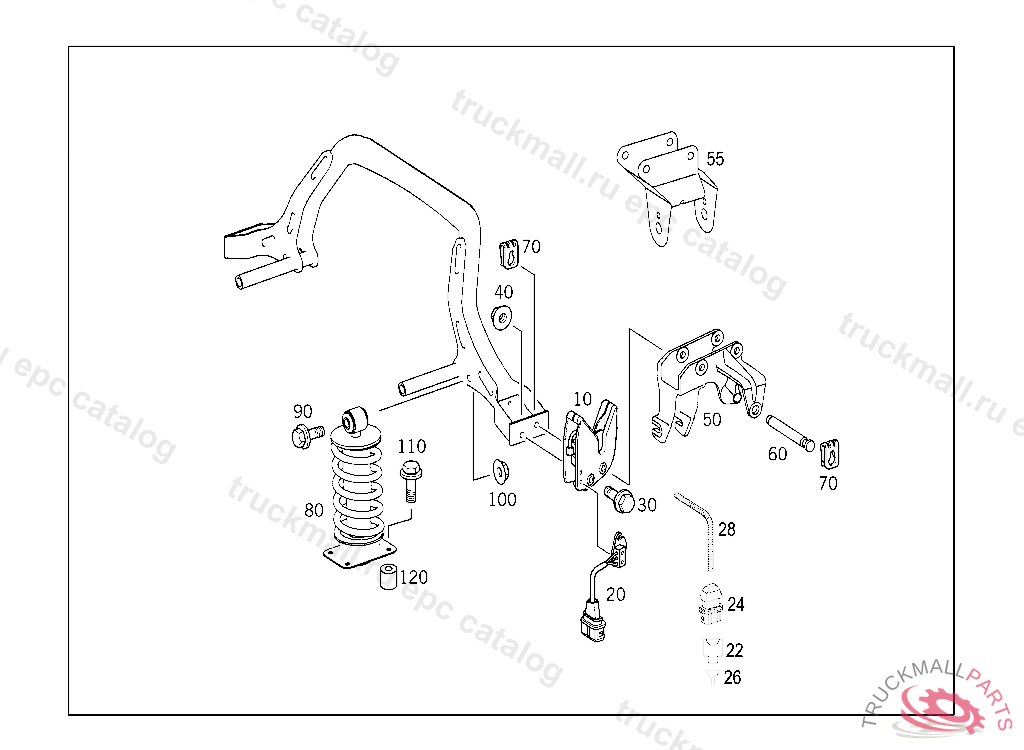

LOCKING MECHANISM CAB,REAR LEFT AND RIGHT, FOR COMPONENT PARTS SEE SPARE PARTS LIST
20
20
22
PLUG HOUSING 3-POLE
24
26
WIRE SEAL
26
FLAT PLUG2.8 , 0.5 - 1.0
28
INSULATING HOSE HOSE LINE PROTECTION 10 MM, ORDER BY THE METER
30
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
30
HEXAGON HEAD BOLT MOUNTING, TORSION BAR, ON SIDE MEMBER M12X1.5X65
40
NUT BRACKET TO SIDE MEMBER M12X1.5
50
50
50
50
55
CONSOLE CAB LOCKING MECHANISM,LEFT
55
CONSOLE CAB LOCKING MECHANISM,RIGHT
60
WASHER LOCK ON SUPPORT
60
PIN LOCK ON SUPPORT
60
70
CLIP STRAP TO SUPPORT
80
80
80
90
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
100
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
110
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
120
SPACER TUBE BRACKET MOUNTING
