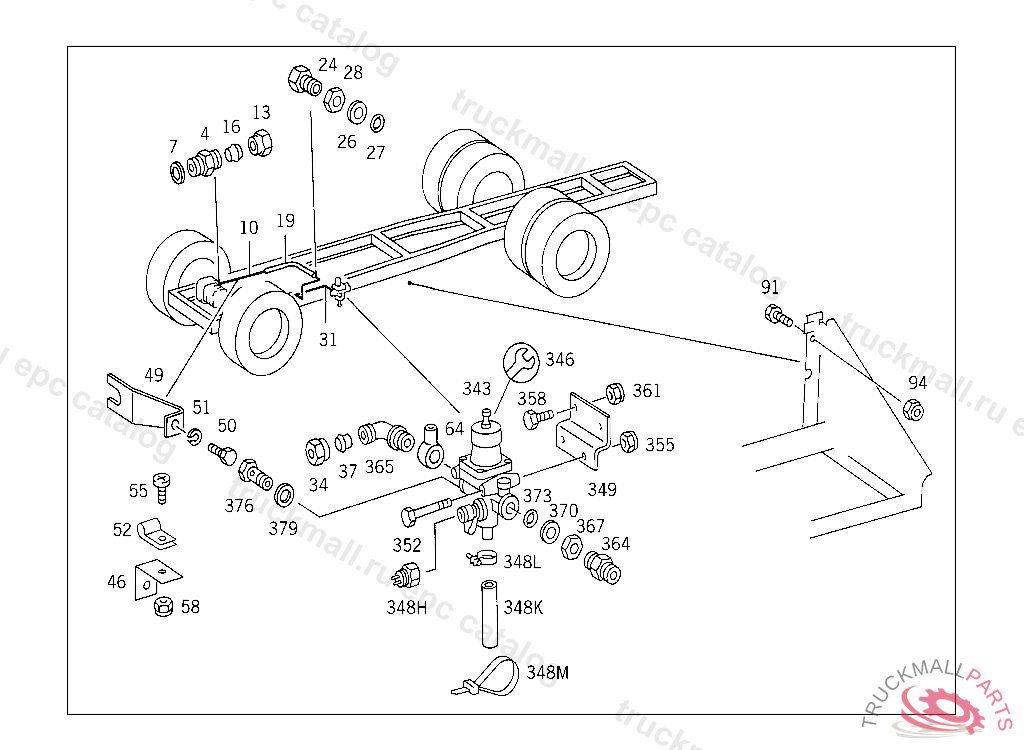

Поз.
Артикул
Описание
4
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
7
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
10
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
10
LINE , Replaced By: A0005516256
10
LINE , Replaced By: A3764202926
13
UNION NUT LINE CONNECTION
16
GLAND LINE CONNECTION
19
BRAKE HOSE FROM AIR COMPRESSOR TO PRESSURE REGULATOR
24
ADAPTER FITTING FITTING TO FRAME SIDE MEMBER
26
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
27
O-RING CHECK VALVE TO AIR RESERVOIR
28
NUT CHECK VALVE TO AIR RESERVOIR
31
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
31
LINE , Replaced By: A0005516256
31
LINE , Replaced By: A3764202036
34
UNION NUT LINE CONNECTION
37
GLAND LINE CONNECTION
46
BRACKET AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
49
BRACKET AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
50
SCREW ,D 091465
51
LOCK WASHER , Replaced By: N912004010102
52
CLAMP DELIVERY AND SUCTION LINES TO STEERING
52
CLAMP , Replaced By: A6739950001
55
SCREW , Replaced By: N304017006016
55
SCREW , Replaced By: N304017006020
58
NUT , Replaced By: N913004006001
64
BANJO UNION1/4"
64
BANJO UNION1/4",683255
91
SCREW SUPPORT TO FRAME M 14X45
94
NUT , Replaced By: N910113014001
343
PRESSURE REGULATORWABCO, Replaced By: A0034313806
343
PRESSURE REGULATORWABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
343
PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION BOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
346
REPAIR KIT SEAL RING BOSCH,209
346
REPAIR KIT DIAPHRAGM PART BOSCH,209
346
REPAIR KIT PRESSURE REGULATOR WABCO
352
SCREW PRESSURE REGULATOR TO BRACKET M 8X75
355
NUT , Replaced By: N913004008001
358
SCREW STEERING SHAFT BEARING TO CAB M 8X20
361
NUT , Replaced By: N913004008001
364
FITTING SHUTTLE VALVE,CONNECTION: "20"
364
FITTING FRONT AXLE II RELAY VALVE,CONNECTION: "24"
365
ELBOW FITTING ,5 433281
367
NUT CHECK VALVE TO AIR RESERVOIR
370
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
373
O-RING CHECK VALVE TO AIR RESERVOIR
376
HOLLOW SCREW HEATING CONNECTION
376
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
379
SEAL RING LINE CONNECTION
379
SEAL RING LINE CONNECTION
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
CONNECTOR 75 DEGREES
999
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
999
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
999
AIR CLEANER COMPLETE TO BOSCH,KNORR
999
BRACKET SWITCH TO FLOOR PLATE,5 220373
999
SWITCH SUPPLY PRESSURE,5 966147
999
SWITCH (FOOT-OPERATED SWITCH),5 220373
999
HEATER PARTS KIT,801061
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
GASKET KITWABCO
999
SWITCH CONTROL SHAFT
999
T-FITTING AIR RESERVOIR,CONNECTION: "31"
999
FITTING AIR RESERVOIR,CONNECTION: "11"
999
LOOM TIE , Replaced By: A0019978390
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
LOOM TIE , Replaced By: A0019978390
999
SEAL RING VALVE TO VALVE
999
SEAL RINGWABCO
999
HOSE PRESSURE REGULATOR,CONNECTION: "30", ORDER BY THE METER
999
SWITCH RELAY VALVE,CONNECTION "2",RIGHT
999
LOOM TIE ELECTRIC CABLE MOUNTING
999
BRACKET CHECK VALVE, Replaced By: A6525244140
999
BRACKET AIR DEHYDRATOR,801061
999
BRACKET
999
HANDLE AT SUPPORT
999
LINE PRESSURE REGULATOR BREATHING
999
VALVE ,801209
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
LOCK RING BELT TIGHTENER
999
SCREW PLUG , Replaced By: N000908012009
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW , Replaced By: N304014008007
999
SCREW PUMP TO BRACKET M 6X20
999
SCREW BEARING BRACKET TO FRONT AXLE
999
SCREW BRACKET TO BATTERY CASE
999
SCREW BRACKET TO SIDE MEMBER
999
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
999
WASHER , Replaced By: N009021008213
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT , Replaced By: N910113010000
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
999
CLAMP
