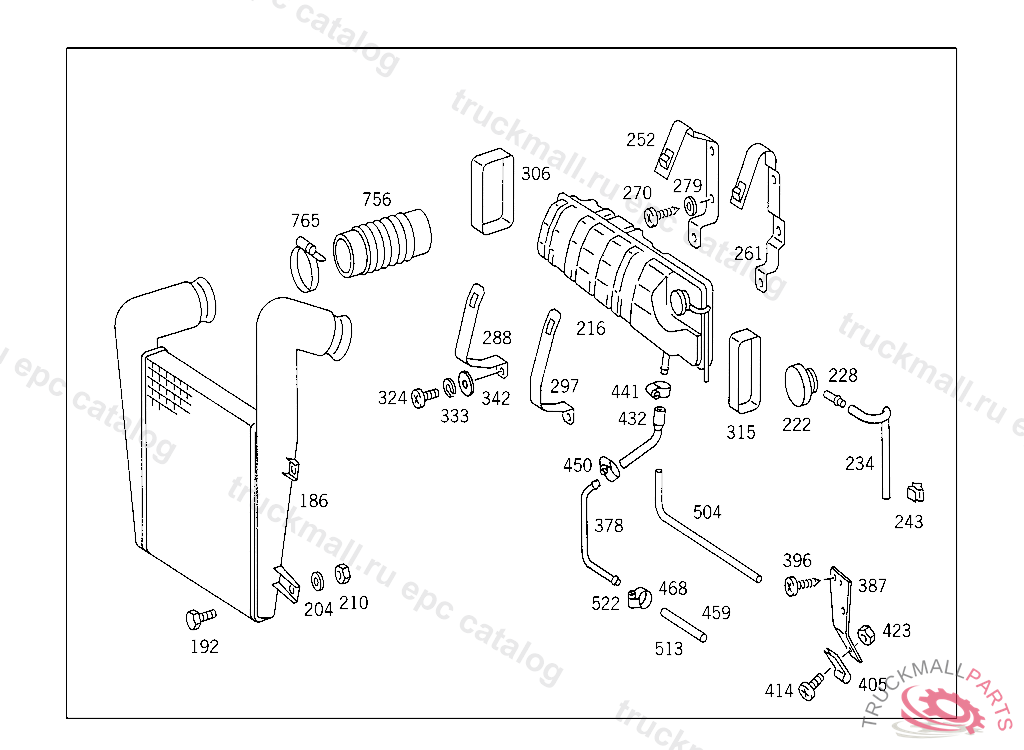

Поз.
Артикул
Описание
186
RADIATOR , NOT USED
186
RADIATOR CHARGING AIR INTERCOOLER TO RADIATOR "BEHR"
192
SCREW , Replaced By: N910105008026
192
SCREW CHARGING AIR INTERCOOLER TO RADIATOR,5 122084
204
WASHER TRAILER PLUG SOCKET TO BRACKET
210
NUT , Replaced By: N913004008001
216
TANK (EXPANSION TANK)
222
RADIATOR CAP
228
DRAIN PIPE EXPANSION TANK
234
HOSE OVERFLOW
243
CLIP CABLE HARNESS TO ROOF RAIL
252
BRACKET EXPANSION TANK
261
BRACKET EXPANSION TANK
270
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
279
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
288
STRAP EXPANSION TANK TO BRACKET
297
STRAP EXPANSION TANK TO BRACKET
306
SHIM EXPANSION TANK TO BRACKET
315
SHIM EXPANSION TANK TO BRACKET
324
SCREW , Replaced By: N007985006581
333
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
342
WASHER , Replaced By: N009021006208
378
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
387
BRACKET DE-AERATION LINE TO CAB
396
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
405
CLAMP ,K 147121, Replaced By: N000000000319
405
CLAMP , Replaced By: N916016008200
405
CLAMP , Replaced By: A3604300143
414
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
423
NUT , Replaced By: N913004006001
432
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
441
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
441
CLAMP , Replaced By: N000000000667
450
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
450
CLAMP , Replaced By: N916017011001
459
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
468
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
468
CLAMP , Replaced By: N916017011001
504
BREATHER PIPE , NOT USED
513
HOSE COOLING WATER LINE TO AIR COMPRESSOR, ORDER BY THE METER
513
HOSE BREATHER LINE BETWEEN RADIATOR AND EXPANSION TANK 560 MM, TO BE ADAPTED DURING ASSEMBLY
522
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
522
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
522
CLAMP , Replaced By: N916017011001
756
HOSE CHARGING AIR INTERCOOLER OUTLET
756
HOSE CHARGING AIR INTERCOOLER OUTLET
756
HOSE , Replaced By: A3765016982
756
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3765010084
765
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
