Mercedes N000933010128 - SCHRAUBE

LPS 1525 MBTC-USA 376.548

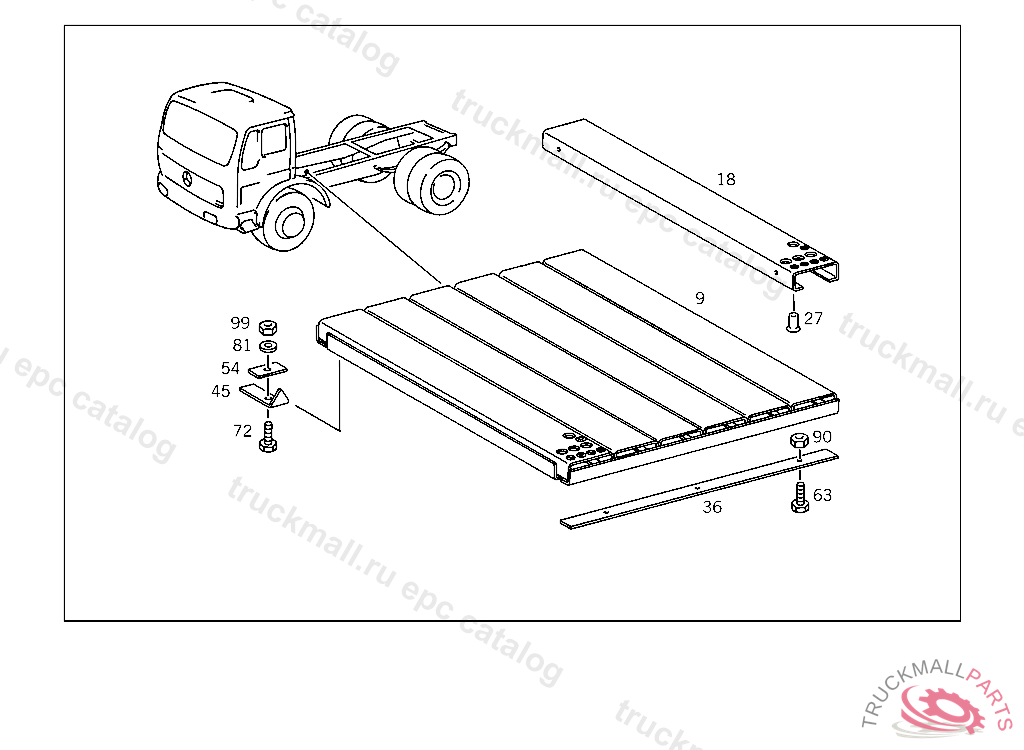

61 SUBSTRUCTURE - 001 STEP AND WORKING PLATFORM IL.1

Поз.
Артикул
Описание
9
A3766100260
FLOOR (WORKING PLATFORM)
18
A6818831001
ROCKER PANEL
18
A3766160360
FLOOR , Replaced By: A6818831001
27
N910003004109
RIVET
36
A3766160197
PAD WORKING PLATFORM TO FRAME
45
A3766160014
BRACKET WORKING PLATFORM TO FRAME
54
A3766160097
PAD WORKING PLATFORM TO FRAME
63
N000933010128
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
72
N000931008373
SCREW SUPPORT TO ENGINE HOOD SUPPORT MOUNTING ANGLE
81
N000125008417
WASHER TRAILER PLUG SOCKET TO BRACKET
90
N913004010008
NUT , Replaced By: N910113010000
99
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
