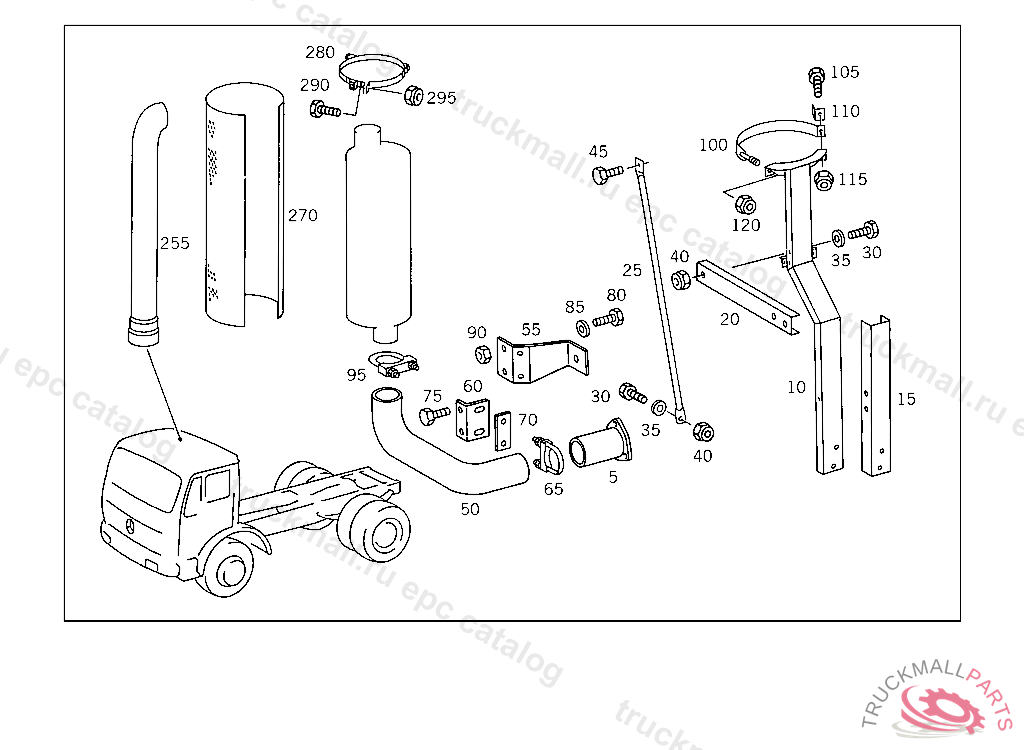

Поз.
Артикул
Описание
5
EXHAUST PIPE FRONT
10
SUPPORT RIGHT
10
SUPPORT RIGHT,801169
15
SUPPORT LEFT,801169
20
SUPPORT
25
BRACKET REINFORCEMENT
30
SCREW BRACKET TO FRAME M 10X28
30
SCREW BRACKET TO BUMPER,LEFT M 10X25
30
SCREW BRACKET TO BUMPER,LEFT M 10X25
35
WASHER GROUND CABLE
35
WASHER REINFORCEMENT TO SUPPORT,801169
35
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
40
NUT , Replaced By: N910113010000
40
NUT , Replaced By: N910113010000
45
SCREW , Replaced By: A0029909804
50
FRONT EXHAUST PIPE
55
BRACKET EXHAUST PIPE TO SUPPORT
60
BRACKET ,801169
65
CLAMP EXHAUST PIPE TO BRACKET
70
PLATE ,801169
75
SCREW BRACKET TO BUMPER,LEFT M 10X25
80
SCREW BRACKET TO SIDE MEMBER M10X30
85
WASHER GROUND CABLE
90
NUT , Replaced By: N910113010000
90
NUT , Replaced By: N910113010000
95
CLAMP EXHAUST PIPE TO BRACKET
100
STRAP EXHAUST MUFFLER TO SUPPORT,801169
100
STRAP EXHAUST MUFFLER TO SUPPORT,801168
105
SCREW BRACKET TO BUMPER,LEFT M 10X25
110
PLATE STRAP TO SUPPORT
115
NUT , Replaced By: N910113010000
120
NUT BRACKET TO RETARDER
255
REAR EXHAUST PIPE ,801169
255
REAR EXHAUST PIPE ,801169
270
PROTECTIVE PLATE EXHAUST MUFFLER,801169
270
PROTECTIVE PLATE EXHAUST MUFFLER,801168
280
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER,801169
280
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER,801168
290
SCREW AIR DUCT TO CAB
290
SCREW AIR DUCT TO CAB
295
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
295
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
PROTECTIVE PLATE
999
CLAMP EXHAUST MUFFLER
999
BRACKET REAR EXHAUST MUFFLER,801168
999
REAR EXHAUST PIPE
999
BRACKET FRONT EXHAUST PIPE
999
BRACKET FRONT EXHAUST MUFFLER,801168
999
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
999
SPACER WASHER BEARING BRACKET TO CAB, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
999
WASHER BRACKET TO FRAME
999
WASHER LEAF SPRING TO STRUT
999
LOCK WASHER FITTING TO BRACKET
