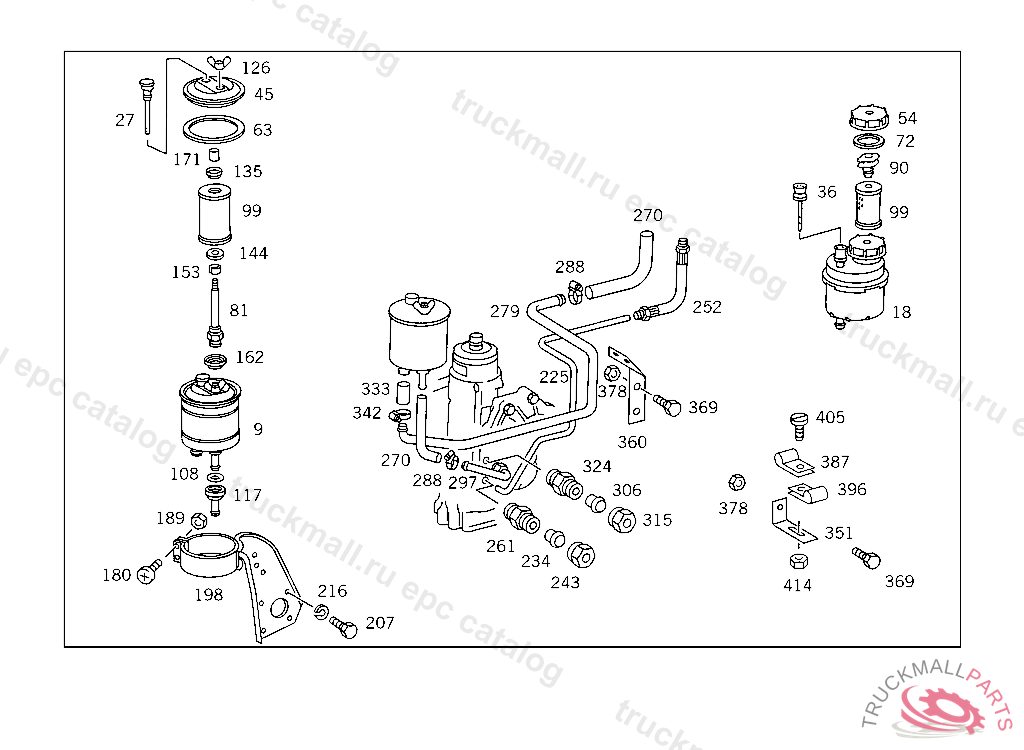

Поз.
Артикул
Описание
9
TANK , Replaced By: A0004664502
18
TANK OIL
27
PIPETO 000 466 38 02
36
OIL DIPSTICK , Replaced By: A0004660867
45
COVERTO 000 466 38 02
54
FILLER CAP
63
SEAL RINGTO 000 466 38 02
72
SEAL RING
81
FILTER CARRIERTO 000 466 38 02
90
BRACKET
99
FILTER
108
SEAL RINGTO 000 466 38 02
117
CONNECTORTO 000 466 38 02
126
NUT , Replaced By: A3259900562
135
CENTERING RINGTO 000 466 38 02
144
WASHER , Replaced By: A9402680552
153
SPACER TUBETO 000 466 38 02
162
COVER PLATETO 000 466 38 02
171
RUBBER SLEEVETO 000 466 38 02
180
SCREW OIL TANK TO BRACKET
189
NUT , Replaced By: N913002006009
198
BRACKET OIL TANK
207
SCREW , Replaced By: N304017010028
216
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
225
TUBE FROM HIGH PRESSURE HOSE TO STEERING
225
225
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
225
234
GLAND , Replaced By: A0019901967
234
SEAL CONE LINE CONNECTION
243
UNION NUT LINE CONNECTION, Replaced By: N000000006239
252
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
252
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
252
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
261
FITTING DELIVERY LINE TO PUMP
270
HOSE , NOT USED
270
HOSE , Replaced By: A6999974082
270
HOSE RETURN, FROM STEERING TO OIL TANK
270
HOSE , Replaced By: A3859971682
279
LINE , NOT USED
288
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
288
CLAMP HOSE TO FITTING AND TO OIL TANK
297
LINE FROM STEERING TO OIL TANK
306
GLAND LINE CONNECTION
315
UNION NUT LINE CONNECTION
324
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
333
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
333
HOSE , Replaced By: A3859971582
342
CLAMP , Replaced By: N000000000667
342
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
342
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
342
CLAMP25-40X13 MM
351
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
360
BRACKET , Replaced By: A6564660040
360
BRACKET DELIVERY AND SUCTION LINES TO FRAME
369
SCREW CONSOLE TO SIDE MEMBER
378
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
387
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
396
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
405
SCREW CLAMP TO BRACKET
414
NUT , Replaced By: N913004006001
999
BOOT STEERING COLUMN PANELLING, BLACK,NO.9051, STATE COLOR WHEN ORDERING
999
BOOT STEERING COLUMN PANELLING, BLACK,NO.9051, NO.8316I I I I IIINO.7C52I I I II IINO.7B90 III III NO.9051II I
999
999
999
999
SCREW STEERING COLUMN PANELLING
999
SCREW STEP SWITCH AM 5X6,5 259580
999
SCREW STEP SWITCH AM 5X10
999
LOCK WASHER STEP SWITCH
