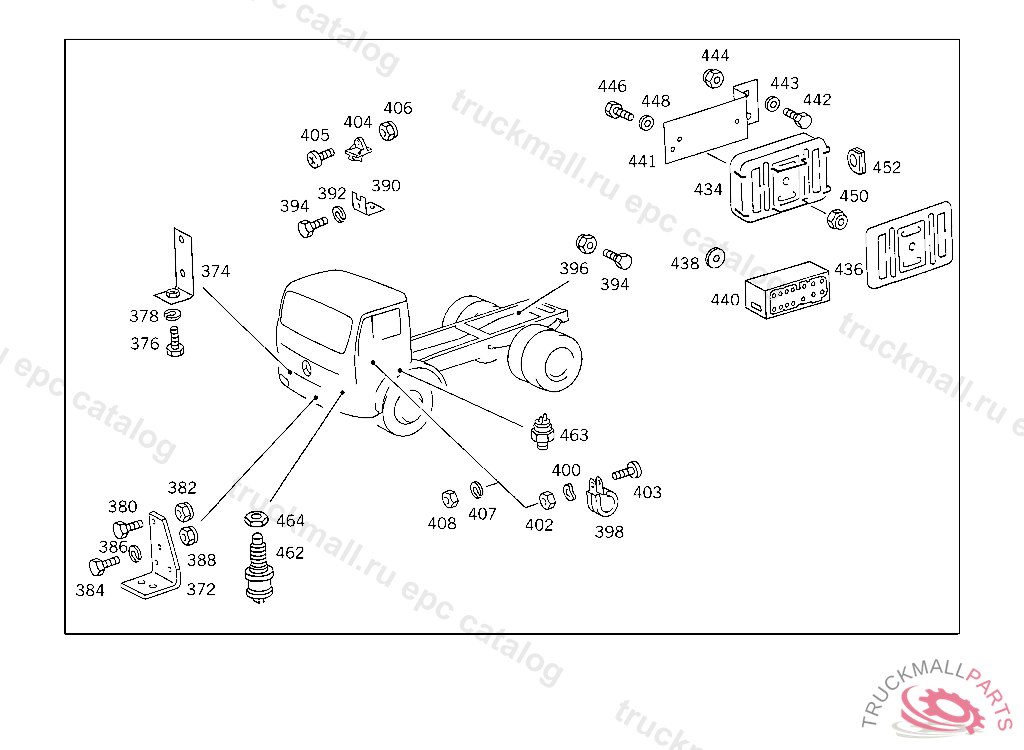

Поз.
Артикул
Описание
372
BRACKET FRAME MOUNTED CABLE HARNESS
372
BRACKET FRAME MOUNTED CABLE HARNESS
374
BRACKET ELECTRIC CABLE TENSILE STRESS RELIEF
376
SCREW , Replaced By: N304017008021
376
SCREW PIPE CLAMP
378
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
380
SCREW BRACKET TO CROSS CONNECTION STRUT
380
SCREW , Replaced By: N304017008034
382
NUT , Replaced By: N913004008001
382
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
384
SCREW CAB FLOOR COVERING M 6X25
386
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
388
NUT BALL PIVOT TO LEVER
390
ANGLE LINE MOUNTING
392
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
394
SCREW END PIECE TO EXHAUST PIPE M 10X25
396
NUT , Replaced By: N910113010000
396
NUT STRAP TO BRACKET
398
CLAMP LINE MOUNTING
400
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
400
SPRING WASHER LICENSE PLATE TO BRACKET
400
SPRING WASHER , Replaced By: N000137008212
400
SPRING WASHER , Replaced By: N000137008204
400
SPRING WASHER ALTERNATOR CONNECTION D+
402
NUT
402
NUT BALL PIVOT TO LEVER
402
NUT , Replaced By: N304032005005
402
NUT IN CASE OF SUBSEQUENT INSTALLATION
403
SCREW BRACKET TO COVERING
403
SCREW , Replaced By: N000000001145
404
BRACKET CABLE HARNESS MOUNTING
405
SCREW CONTROL UNIT TO CAB
406
NUT TWO-WAY VALVE TO BRACKET
407
SPRING WASHER LICENSE PLATE TO BRACKET
408
NUT BALL PIVOT TO LEVER
434
CABLE CONNECTOR FRAME,REAR
434
CABLE CONNECTOR , Replaced By: A0015465441, +001A0009872844
434
CABLE CONNECTOR , Replaced By: A0015463841
434
CABLE CONNECTOR , Replaced By: A0015463341, +001A0105456728
436
COVERING , Replaced By: A0005460581
436
COVERING
440
PLUG REAR CABLE CONNECTOR,5 180266
440
PLUG , Replaced By: A0105456728
442
SCREW END PIECE TO EXHAUST PIPE M 10X25
444
NUT , Replaced By: N910113010000
444
NUT STRAP TO BRACKET
446
SCREW REFLECTOR TO BRACKET
446
SCREW HOOK TO BRACKET
448
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
448
WASHER , Replaced By: N009021005205
450
NUT TWO-WAY VALVE TO BRACKET
452
EXPANSION PLUG TO LOCK TRAILER-PLUG-SOCKET OUTLET
462
SWITCH , Replaced By: A0015452709
462
SWITCH , Replaced By: A0015451109
462
SWITCH , Replaced By: A0005459009
462
SWITCH TORQUE REDUCER
462
SWITCH BRAKE FLUID TELL-TALE LAMP, 415 5 014668 416 5 000515 417 4 972023
462
SWITCH STOP LIGHT
463
SWITCH DUMPER VALVE
464
NUT SWITCH TO BRAKE PEDAL,4 391855
464
NUT SWITCH
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SHIM CONSOLE TO SIDE MEMBER
999
GROMMET
999
DIAGRAM PAPER SET100 PIECES
