Поз.
Артикул
Описание

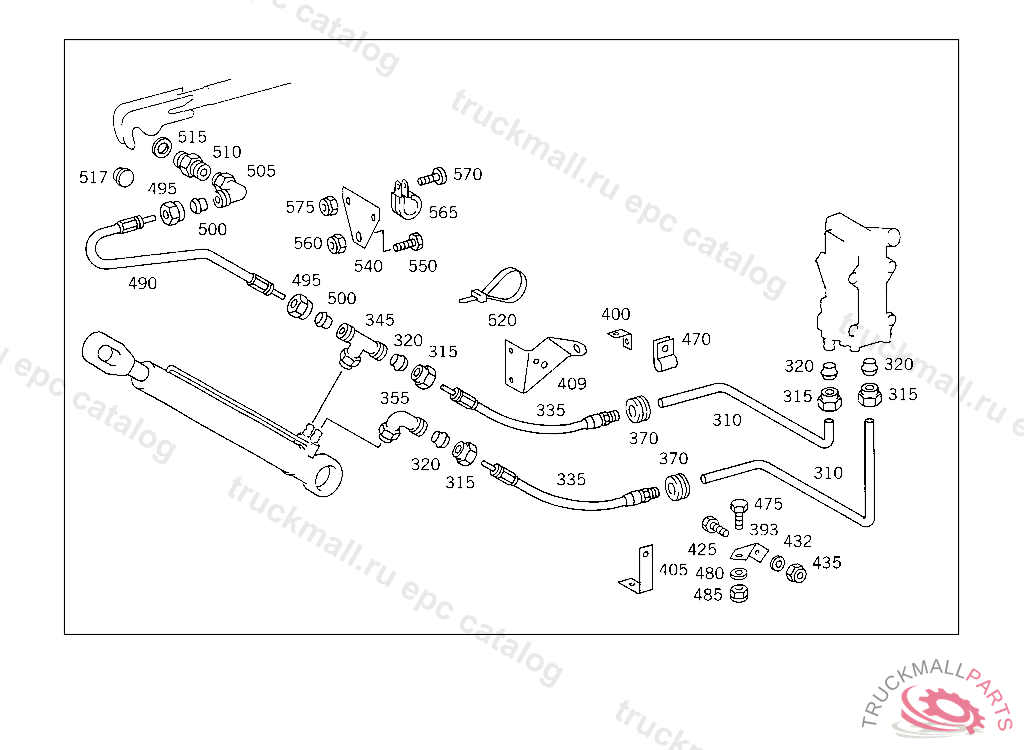

310
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
315
UNION NUT
320
GLAND , Replaced By: A0019901667
320
SEAL CONE
335
HOSE FROM HYDRAULIC LINE TO CYLINDER
345
T-FITTING. FITTING AT INJECTION PUMP
345
T-FITTING EXHAUST-BRAKE POWER CYLINDER
355
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
355
FITTING , Replaced By: A0019909871
370
GROMMET AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET
393
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
393
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
400
ANGLE LINE MOUNTING
405
BRACKET SUCTION LINE
425
SCREW , Replaced By: N304017008021
425
SCREW , Replaced By: N304017008027
425
SCREW , Replaced By: N304017008034
425
SCREW BRACKET TO CROSS CONNECTION STRUT
425
SCREW PIPE CLAMP
425
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
432
WASHER EXHAUST MUFFLER TO STRAP
432
WASHER , Replaced By: N000125008443
435
NUT , Replaced By: N913004008001
435
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
470
CLAMP LINE MOUNTING
475
SCREW LICENSE PLATE TO BRACKET
475
SCREW , Replaced By: N304017006020
475
SCREW COVER PLATE TO BRACKET
480
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
485
NUT , Replaced By: N913004006001
485
NUT PUMP TO BRACKET
490
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
490
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL,5 942826
495
UNION NUT
500
GLAND , Replaced By: A0019901667
500
SEAL CONE
505
FITTING , Replaced By: A0019909871
505
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
510
FITTING 3/2-WAY VALVE,CONNECTION: "30"
515
SEAL RING , Replaced By: N007603010110
515
SEAL RING PNEUMATIC VALVE
520
LOOM TIE LINE MOUNTING
540
BRACKET HIGH PRESSURE HOSE, 415 5 014668 416 5 000515 417 4 972023
550
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
560
NUT STRAP TO BRACKET
560
NUT , Replaced By: N910113010000
565
CLAMP ,K 147121, Replaced By: N000000000319
570
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
575
NUT , Replaced By: N913004006001
575
NUT PUMP TO BRACKET
