Поз.
Артикул
Описание

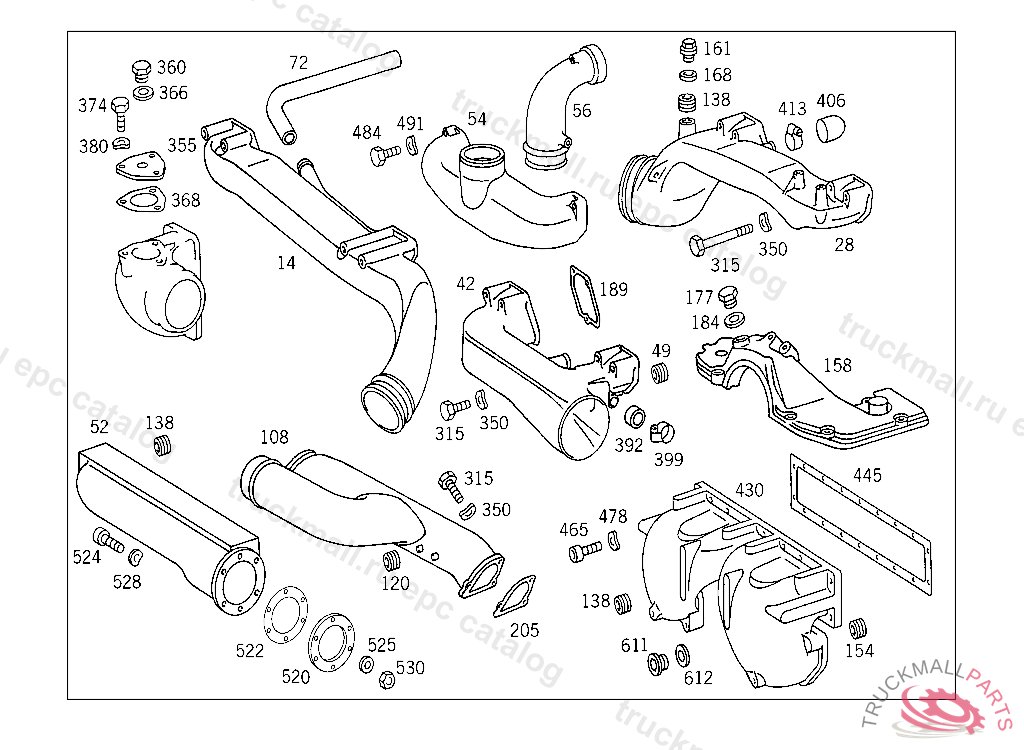

14
INTAKE MANIFOLD , 064695
14
INTAKE MANIFOLD (TRANSVERSE INTAKE PIPE)
14
INTAKE MANIFOLD , 064695
14
INTAKE MANIFOLD (TRANSVERSE INTAKE PIPE)
14
INTAKE MANIFOLD (TRANSVERSE INTAKE PIPE)
14
INTAKE MANIFOLD
14
TRANSVERSE INTAKE PIPE
14
TRANSVERSE INTAKE PIPE
14
INTAKE MANIFOLD
14
INTAKE MANIFOLD ,712470
14
INTAKE MANIFOLD , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 712470, Replaced By: A4411412001
14
INTAKE MANIFOLD , Replaced By: A4411411901
14
INTAKE MANIFOLD , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 712470, Replaced By: A4221402601
14
INTAKE MANIFOLD , Replaced By: A4221402501
14
INTAKE MANIFOLD , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 064694, Replaced By: A4031415501, +001A4030181782
14
INTAKE MANIFOLD , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 064694, Replaced By: A4031415401, +001A4020180682
14
INTAKE MANIFOLD , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 459964, Replaced By: A4411411201, +001A0000701483
14
INTAKE MANIFOLD , Replaced By: A4011411901
14
INTAKE MANIFOLD , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 459964, Replaced By: A4411411001
14
INTAKE MANIFOLD
28
INTAKE MANIFOLD (TRANSVERSE INTAKE PIPE)
28
AIR INTAKE PIPE (TRANSVERSE INTAKE PIPE)
28
INTAKE MANIFOLD (TRANSVERSE INTAKE PIPE)
42
TRANSVERSE INTAKE PIPE
42
INTAKE MANIFOLD (TRANSVERSE INTAKE PIPE)
42
AIR LINE TRANSVERSE CHARGE AIR PIPE
42
INTAKE MANIFOLD (TRANSVERSE INTAKE PIPE)
42
INTAKE MANIFOLD
42
INTAKE MANIFOLD (TRANSVERSE INTAKE PIPE)
42
CHARGING AIR LINE CHARGE AIR LINE TO INTAKE MANIFOLD
42
CHARGING AIR LINE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A4440980507
42
INTAKE MANIFOLD , Replaced By: A4421401801
42
INTAKE MANIFOLD , Replaced By: A4221410201
42
INTAKE MANIFOLD , Replaced By: A4221403401
42
INTAKE MANIFOLD , Replaced By: A4221400101
42
INTAKE MANIFOLD TRANSVERSE CHARGE AIR PIPE
49
THREADED INSERT ,5 462573
52
AIR LINE , Replaced By: A4440900437
52
AIR LINE
54
CHARGING AIR LINE (TRANSVERSE INTAKE PIPE)
56
ELBOW
72
HOSE MOLDED HOSE,064695
72
HOSE MOLDED HOSE
72
HOSE , Replaced By: A4030181782
108
INTAKE MANIFOLD (CHARGE AIR PIPE)
120
THREADED INSERT
138
THREADED INSERT
138
THREADED INSERT
138
THREADED INSERT ,5 462573
138
THREADED INSERTTO 407 140 18 01/23 01
138
THREADED INSERT
138
THREADED INSERT
154
THREADED INSERT
158
COVER , Replaced By: A4230100217
158
COVER , Replaced By: A4230100217
158
COVER
161
SCREW PLUG 4/2-WAY VALVE
168
SEAL RINGTO 001 431 72 14
168
SEAL RING , Replaced By: N007603010110
168
SEAL RING PNEUMATIC VALVE
177
SCREW PLUGROCKINGER,TYP 59 U150
177
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
177
SCREW PLUG OIL FILLING
177
SCREW PLUG BELL HOUSING TO 620 251 07 01,620 251 16 01, 426,427,428,521,522 5 095724 532 5 104253
177
SCREW PLUG
177
SCREW PLUG
184
SEAL RING TO LOCK DELIVERY BEGINNING INSPECTION HOLE TO 423 010 02 17, 38
184
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
184
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
184
SEAL RING
184
SEAL RING
189
GASKET , Replaced By: A4441410480
189
GASKET , Replaced By: A4421410780
189
GASKET TRANSVERSE CHARGE AIR PIPE TO INTAKE MANIFOLD
189
GASKET CHARGE AIR LINE TO CHARGE AIR INTERCOOLER
189
GASKET INTAKE MANIFOLD
205
GASKET , Replaced By: A4421411680
205
GASKET CHARGE AIR PIPE TO INTAKE MANIFOLD
315
COMBINATION BOLT , Replaced By: N914011010015
315
COMBINATION BOLT , Replaced By: N000933010289, +001N000125010518
315
SCREW , Replaced By: N304017010053
315
SCREW , Replaced By: N304014010015
315
SCREW , Replaced By: N304017010030
315
SCREW DUMPER SHAFT,5 515436
315
SCREW
315
SCREW OUTLET TO ENGINE M 10X100
315
SCREW TRANSVERSE INTAKE PIPE TO LONGITUDINAL INTAKE PIPE
315
SCREWM 10X30
315
SCREW PIPE ELBOW TO BRACKET M 10X50
315
SCREW FAN TO WATER PUMP M 8X80
315
HEXAGON HEAD BOLT CLAMP TO EXHAUST PIPE M8X130
315
COMBINATION BOLTM 10X165, TO BE ADAPTED DURING ASSEMBLY
315
COMBINATION BOLT TRANSMISSION TO CRANKCASE
315
COMBINATION BOLTM 10X195
315
SCREW CLUTCH TO FLYWHEEL
315
SCREW REAR EXHAUST PIPE TO MUFFLER
350
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
350
SPRING WASHER , Replaced By: N000137008212
350
SPRING WASHER STEERING COLUMN BRACKET TO CAB
355
FLANGE TO LOCK THE BORE MEANT FOR FLAME START SYSTEM
355
FLANGE FLAME START SYSTEM
355
FLANGE , Replaced By: A3760780044
360
SCREW PLUG 4/2-WAY VALVE
360
SCREW PLUG BELL HOUSING TO 620 251 07 01,620 251 16 01, 426,427,428,521,522 5 095724 532 5 104253
366
SEAL RING LINE CONNECTION
366
SEAL RING TEMPERATURE GAUGE SENDER UNIT
368
SEAL , Replaced By: A4420780180
368
SEAL TO LOCK THE BORE MEANT FOR FLAME START SYSTEM
374
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
374
SCREW 4/2-WAY VALVE TO BRACKET
380
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
392
LOCKING CAP TO PLUG INTAKE MANIFOLD AT AIR COMPRESSOR CONNECTION
392
LOCKING CAP TO LOCK COOLING WATER BOTTOM OUTLET
392
LOCKING CAP , Replaced By: A3845067033
392
LOCKING CAP , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4229870145
392
LOCKING CAP
399
CLAMP , Replaced By: A0069970590
399
LOOM TIE
399
LOOM TIE
399
CLAMP , Replaced By: N000000000670
406
LOCKING CAP , Replaced By: A3845067033
413
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
430
AIR LINE AT CHARGING AIR INTERCOOLER
430
CHARGING AIR LINE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 010059, Replaced By: A4440900237
430
AIR LINE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 712470, Replaced By: A4440900737
445
GASKET , Replaced By: A4440980580
445
GASKET CHARGE AIR LINE TO CHARGE AIR INTERCOOLER
465
SCREW STEERING SHAFT BEARING TO CAB M 8X30,5 191030
478
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
484
SCREW END PIECE TO EXHAUST PIPE M 10X25
484
SCREW BRACKET TO CROSS CONNECTION STRUT
484
SCREW SHIFTING DOME TO 000 268 37 01
484
SCREW TRANSVERSE CHARGE AIR PIPE TO INTAKE MANIFOLD M 12X160
484
SCREW
491
WASHER BRACKET TO FRAME
491
WASHER , Replaced By: N000125013008
491
WASHER RADIATOR TO RUBBER MOUNTING
491
WASHER , Replaced By: N000125017016
491
WASHER
520
FLANGE
522
GASKET FLANGE TO CHARGE AIR PIPE
522
GASKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 014038, Replaced By: A4441420380
524
SCREW , Replaced By: N304017008018
524
SCREW CLAMP ON BRACKET
524
SCREW SUPPORT TO FENDER
525
WASHER EXHAUST MUFFLER TO STRAP
525
WASHER , Replaced By: N000125008443
528
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
530
NUT ENGINE MOUNTING M8
530
HEXAGON NUT. NUT , Replaced By: N913023008002
611
SCREW PLUG FUEL TANK BREATHING M 14X1.5
612
SEAL RINGTO 000 553 03 05,000 553 18 05,
