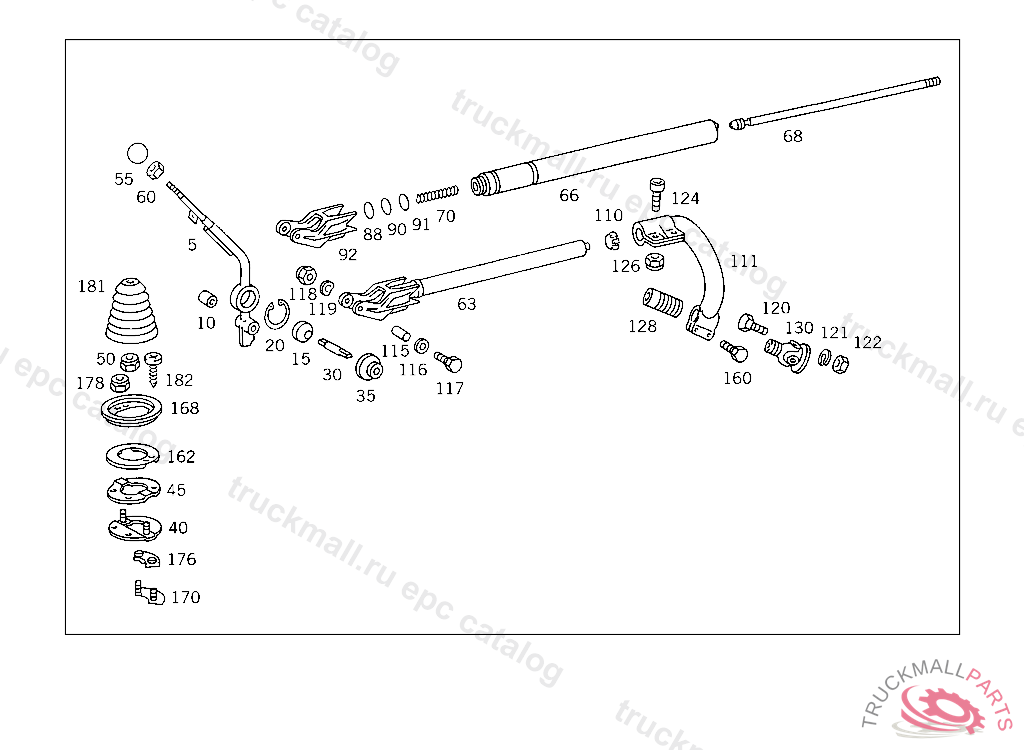

Поз.
Артикул
Описание
5
SHIFT LEVER REMOTE GEARSHIFT MECHANISM,4 291252
5
SHIFT LEVER , Replaced By: A3852605539
10
BUSHING PAWL TO ROD END,5 443047
15
JOINT BEARING SHIFT LEVER BEARING,K040603
15
JOINT BEARING , Replaced By: A0019813931
15
JOINT BEARING SHIFT LEVER BEARING,K040603
20
LOCK RING SHIFT LEVER BEARING
30
PIN SHIFT LEVER BEARING,K040603
35
BOOT , Replaced By: A6202680196
35
BOOT SHIFT LEVER BEARING
40
BRACKET SHIFT LEVER LOWER PART,K040603
45
BRACKET SHIFT LEVER UPPER PART,K040603
50
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
50
NUT , Replaced By: N913004008001
55
HANDLE (GEARSHIFT LEVER KNOB)
60
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
63
SHIFTING ROD (TELESCOPIC SHIFTING ROD),4 291252
66
SHIFTING TUBE (TELESCOPIC TUBE)
66
SHIFTING ROD (TELESCOPIC TUBE)
68
PULL ROD
70
SPRING MECHANICAL RELAESE,4 291252
88
ROUND CORD RING. SEAL RING ROD END
90
SEAL RING8.30 MM,4 291252
91
SEAL RING HYDRAULIC RELEASE
92
YOKE MECHANICAL RELAESE,4 291252
110
WASHER BETWEEN THE SHIFTING RODS
111
SHIFTING ROD REAR,4 291253
111
SHIFTING ROD REAR,4 291252
115
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
116
ROUND CORD RING. SEAL RING ROD END
117
SCREW SHIFTING ROD TO SHIFT LEVER
117
SCREW , Replaced By: N000933010192
118
NUT , Replaced By: N910113010000
118
NUT STRAP TO BRACKET
119
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
120
SCREW SHIFTING ROD TO TRANSMISSION
121
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
122
NUT
124
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
126
NUT STRAP TO BRACKET
126
NUT , Replaced By: N910113010000
128
CONNECTOR , Replaced By: A3812680128
128
CONNECTOR SHIFTING TUBE
130
JOINT SHIFTING ROD TO TRANSMISSION
130
JOINT , Replaced By: A3832680489
130
JOINT SHIFTING ROD TO TRANSMISSION
130
JOINT SHIFTING ROD TO TRANSMISSION
160
SCREW CONNECTOR TO REAR SHIFTING ROD
160
SCREW , Replaced By: N304017010047
162
RUBBER PAD SHIFT LEVER TO CAB FLOOR,K040603
168
BRACKET GEARSHIFT LEVER UPPER PART,4 291252
170
BRACKET GEARSHIFT LEVER LOWER PART,4 291252
176
RUBBER PAD SHIFT LEVER BEARING TO CAB FLOOR
178
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
178
NUT , Replaced By: N913004008001
181
BOOT SHIFTING LEVER
182
SHEET METAL SCREW
999
PLUG SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART
999
BUSHING PAWL TO ROD END,5 443048
999
SCREW CONNECTOR TO REAR SHIFTING ROD
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
