Поз.
Артикул
Описание

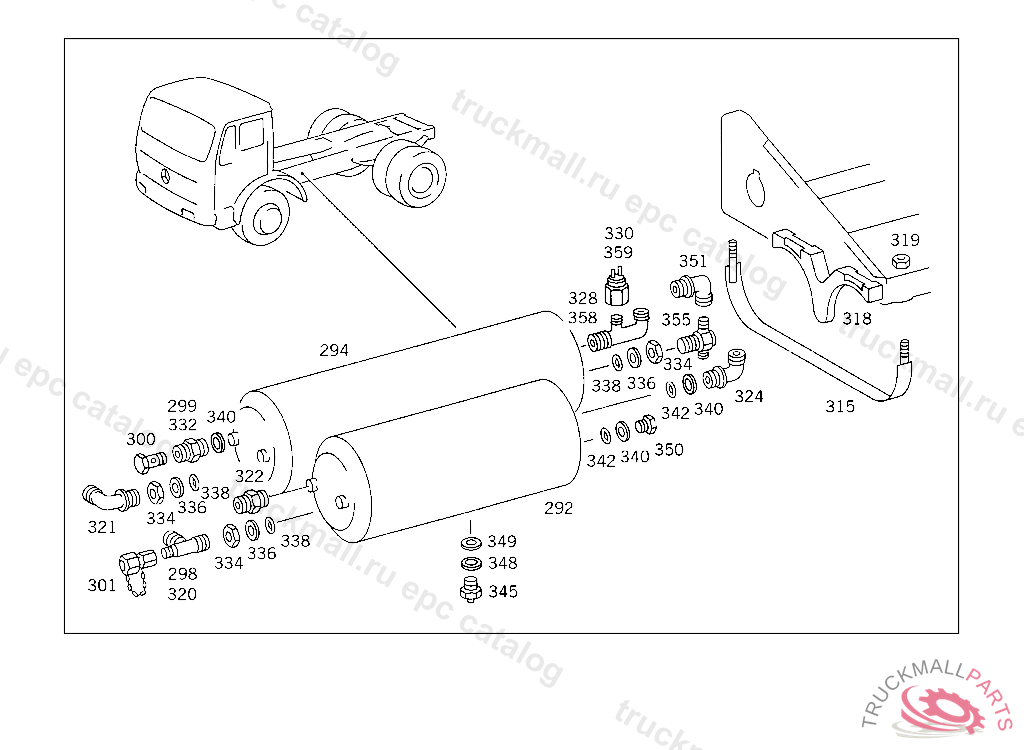

294
RESERVOIR , Replaced By: A0014328901
294
RESERVOIR , Replaced By: A0034323001
300
NUT CHECK VALVE TO AIR RESERVOIR
301
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
301
TEST CONNECTION
301
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
301
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
315
STRAP AIR RESERVOIR,K 125986
315
STRAP , Replaced By: A3354300340
318
BASE AIR RESERVOIR
319
NUT BRACKET TO SUPPORT AND TO END PIECE
320
T-FITTING 3/2-WAY VALVE, CONNECTIONS "P1,R2",4 307219
321
ELBOW FITTING DELIVERY LINE TO PUMP
321
FITTING , Replaced By: A0019902771
322
FITTING AT RIGHT TRISTOP CYLINDER
324
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
324
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
324
T-FITTING RELAY VALVE,CONNECTION: "12"
334
NUT CHECK VALVE TO AIR RESERVOIR
336
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
338
O-RING CHECK VALVE TO AIR RESERVOIR
340
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
340
SEAL RING LINE CONNECTION
342
O-RING CHECK VALVE TO AIR RESERVOIR
345
VALVE. DRAIN VALVE DRAIN
345
VALVE DRAIN, Replaced By: A0004322407
345
VALVE DRAIN, Replaced By: A0004322107
348
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
348
SEAL RING LINE CONNECTION
349
O-RING CHECK VALVE TO AIR RESERVOIR
350
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
350
SCREW PLUG , Replaced By: N000908022011
351
ELBOW FITTING
355
VALVE (CHECK VALVE), 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
355
VALVE (CHECK VALVE), 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
355
VALVE (CHECK VALVE), 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
358
T-FITTING BRAKE BOOSTER ASSEMBLY,4 314611
359
SWITCH SUPPLY PRESSURE,5 966147
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
999
NUT STRAP TO BRACKET
999
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
SCREW , Replaced By: N304017010002
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017008040
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008027
999
SCREW COVER PLATE TO BRACKET
999
SCREW RADIATOR M 10X45
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
BRACKET PULL ROD TO BRACKET ON FRAME, TO BE ADAPTED DURING ASSEMBLY
999
ADHESIVE FOIL GUIDE SIGN
999
BRACKET BUMPER,RIGHT, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
BRACKET PRESSURE GAUGE LINE TO BRACKET
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: A3859900540
999
CONSOLE SPRING LOAD ACCUMULATOR CYLINDER
999
BRACKET SENSOR CABLE TO FRONT AXLE
999
BRACKET AIR RESERVOIR,4 314610
999
BASE BRACKET TO SIDE MEMBER,4 314610
999
BRACKET EXPANSION TANK, NOT FOR USE WITH MERCEDES-BENZ CAB4 314610
999
BRACKET , ON VEHICLES HAVING MERCEDES-BENZ CAB4 314610
999
BRACKET , Replaced By: A3184923441
999
CONSOLE SPRING LOAD ACCUMULATOR BRAKE CYLINDER
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL 2200 MM,4 478329
999
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
999
VALVE CLUTCH SLAVE CYLINDER
999
SPHERICAL PIECE , Replaced By: A3025860242
999
SEAL RING
999
SEAL RINGTO 000 431 24 14
999
SEAL RINGTO 000 431 43 12,000 431 44 12, NO LONGER AVAILABLE
999
SEAL RINGTO 000 431 24 14
999
SEAL RINGTO 000 431 86 14
999
VALVE (OVERFLOW VALVE) GRAU
999
VALVE (OVERFLOW VALVE) WABCO
999
SEAL RINGTO 000 439 95 14,4 847617
999
RESERVOIR
999
RESERVOIR COMPRESSED AIR 10 L.
999
BRAKE MASTER CYLINDERTEVES
999
VALVE , Replaced By: A0044293144
999
VALVE , Replaced By: A0044293244
999
SPRING
999
REPAIR KITWEST 432 199 015 0,432 199 030 0
999
VALVE
999
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0034290844
999
VALVE , Replaced By: A0034290944
999
FITTING AIR RESERVOIR,CONNECTION: "13"
999
REPAIR KITTO 001 429 52 44
999
RESERVOIR5/25L
999
SPRING
999
CUPTO 000 431 24 14
999
CUP
999
SEAL RINGTO 000 431 86 14
999
SEAL RINGTO 000 431 86 14
999
PROTECTIVE CAP
999
VALVE , Replaced By: A0034291644
999
PLUG
999
SPRINGTO 002 430 69 01
999
HOLLOW SCREW CONNECTION "2.1",4 314611
999
WICK PARTS KIT TO 000 431 26 15,WEST 432 199 030 0
999
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
CUPTO 000 431 76 14
999
SEAL RINGTO 002 430 69 01
999
CUPTO 000 431 24 14
999
SEAL RINGTO 002 430 72 01,SCHAEFER
999
SEAL RINGTO 002 430 69 01
999
CUP , Replaced By: A0004318587
999
FELT STRIPTO 000 431 43 12,000 431 44 12
999
SEAL RING
999
BRAKE CYLINDER , Replaced By: A0004312414
999
PROTECTIVE CAPTO 000 431 24 14
999
SEAL RINGTO 000 431 43 12,000 431 44 12
999
CUP , Replaced By: A0015864342
999
CUP , Replaced By: A0004319186
999
PISTONTO 000 431 86 14
999
PROTECTIVE CAPWEST 432 199 015 0,030 0
999
PISTONTO 000 431 43 12,000 431 44 12
999
RESERVOIR WITH WARNING DEVICE,4 314610
999
WASHER ANTI-FREEZE DEVICE DRAIN
999
STRAINERTO 000 431 86 14
999
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
999
ANTI-FREEZE DEVICE
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
999
LEVER
999
BRAKE CYLINDER SPRING LOAD ACCUMULATOR BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
LEVER TOOTHED
999
SCREW PLUG WITH DIPSTICK
999
GUIDE BUSHING
999
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
999
SCREW
999
FILTER BOTTOMTO 000 431 24 14
999
SLIDETO 000 431 50 14,000 431 24 14
999
METAL SPRING BELLOWS , Replaced By: A0004311418
999
VALVE , Replaced By: A3075530107
999
SPACER RING ,4 428462
999
DIAPHRAGM
999
DIAPHRAGM , Replaced By: A0004290745
999
HOLLOW SCREW
999
PROTECTIVE CAP ,5 962906
999
PROTECTIVE CAP , Replaced By: A0004210887
999
PROTECTIVE CAP , Replaced By: A0004217187
