Поз.
Артикул
Описание

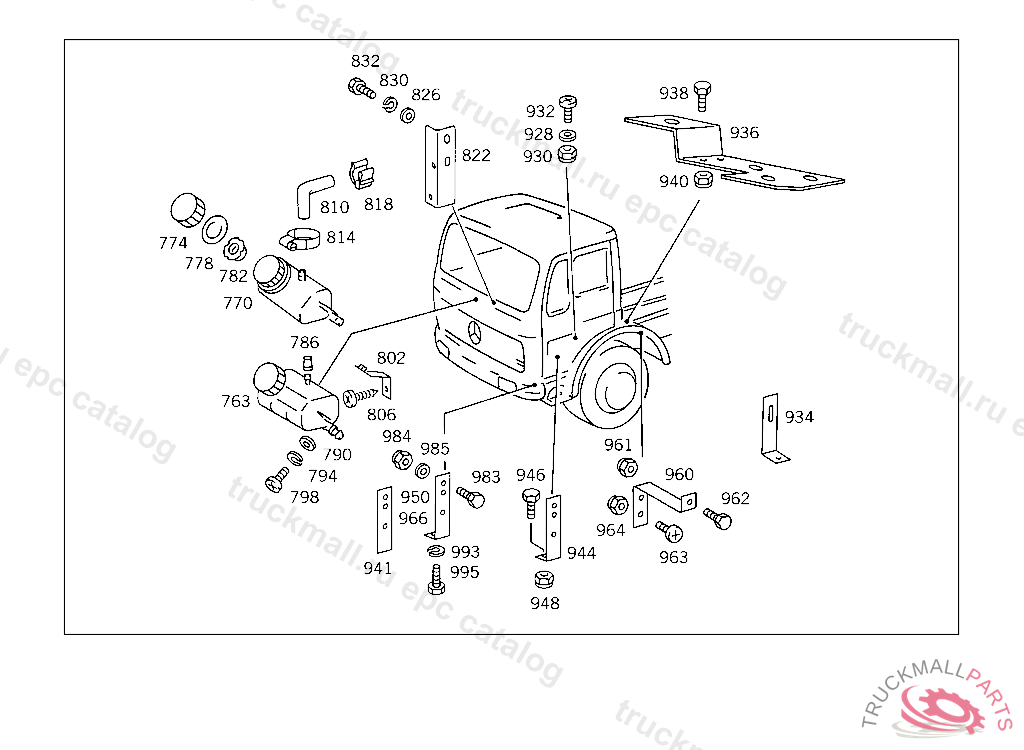

763
RESERVOIR RESERVOIR, 415 5 014668 416 5 000515 417 4 972023
770
RESERVOIR RESERVOIR, 415 5 014668 416 5 000515 417 4 972023
774
LOCKING CAP
774
LOCKING CAP ,4 238841 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0002951915
778
SEAL RING , Replaced By: A0009972940
778
SEAL RING
782
STRAINER
782
STRAINER , Replaced By: A0004314334
786
VALVE , Replaced By: A0009885435
786
CAP RESERVOIR DE-AERATION
790
WASHER COMPRESSED AIR LINE TO BRACKET
790
WASHER , Replaced By: N009021006208
794
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
798
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
802
BRACKET RESERVOIR
802
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 452123, Replaced By: A3872900433
806
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
810
HOSE RESERVOIR DE-AERATION,4 238841 ORDER BY THE METER
814
CLAMP HOSE TO CAB,4 238841
818
CLIP HOSE TO CAB,4 238841
822
ANGLE WIPER MOTOR,4 257007
826
WASHER COMPRESSED AIR LINE TO BRACKET
826
WASHER , Replaced By: N009021006208
830
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
832
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
928
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
930
NUT PUMP TO BRACKET
930
NUT , Replaced By: N913004006001
932
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
934
BRACKET OIL LINE MOUNTING
934
BRACKET , Replaced By: A3464296040
936
BRACKET , Replaced By: A3852953340
936
BRACKET HYDRAULIC LINE
936
BRACKET HYDRAULIC LINE
941
BRACKET , Replaced By: A3124761535
941
BRACKET HEATING WATER LINE
944
BRACKET , Replaced By: A3604292940
944
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
946
SCREW PIPE CLAMP
946
SCREW , Replaced By: N304017008021
948
NUT , Replaced By: N913004008001
948
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
950
BRACKET HIGH PRESSURE HOSE
960
BRACKET HYDRAULIC LINES TO FRAME
961
NUT STRAP TO BRACKET
961
NUT , Replaced By: N910113010000
962
SCREW END PIECE TO EXHAUST PIPE M 10X25
963
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
964
NUT PUMP TO BRACKET
964
NUT , Replaced By: N913004006001
966
BRACKET , Replaced By: A3525422840
966
BRACKET BATTERY CABLE MOUNTING
983
SCREW PIPE CLAMP
983
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
983
SCREW , Replaced By: N304017008021
983
SCREW , Replaced By: N304017008016
984
NUT , Replaced By: N913004008001
984
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
985
WASHER EXHAUST MUFFLER TO STRAP
985
WASHER , Replaced By: N000125008443
993
LOCK WASHER BELL HOUSING TO TRANSMISSION
995
SCREW COVERING TO BEARING BRACKET
999
BOOT , Replaced By: A0005864729
999
BOOTTO 001 295 30 06
999
ROD , Replaced By: A3812910233
999
ROD OVER-CENTER ACTING SPRING
999
ROD OVER-CENTER ACTING SPRING
999
PIN PUSH ROD TO PEDAL,4 247125
999
PIN PUSH ROD TO PEDAL
999
GROMMET , Replaced By: A3149970581
999
BRACKET LINE TO ENGINE FRONT CROSS MEMBER
999
BRACKET LINE TO ENGINE REAR CROSS MEMBER,4 276783
999
BRACKET BRACKET TO CAB FLOOR,4 655107
