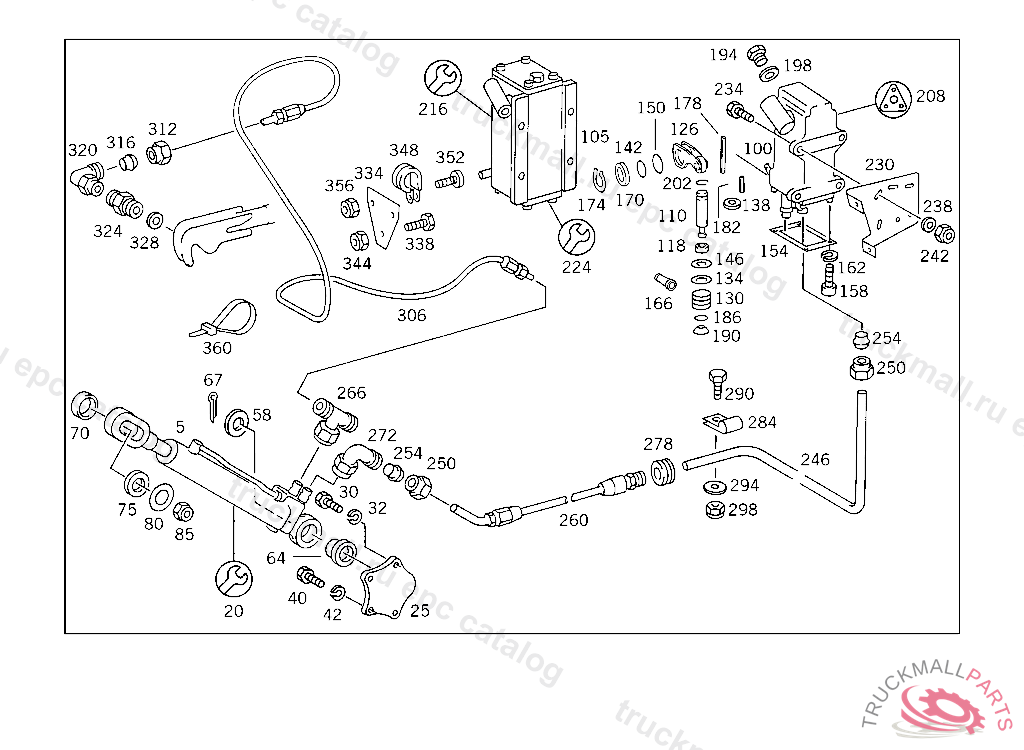

Поз.
Артикул
Описание
5
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER,4 733732
5
CYLINDER , Replaced By: A0015533605
5
CYLINDER , Replaced By: A0015533605
20
GUIDE , Replaced By: A0015534905
20
REPAIR KIT , Replaced By: A0005501535
20
GASKET KIT HYDRAULIC CYLINDER TO 000 553 03 05,000 553 18 05,
20
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
25
BEARING BRACKET HYDRAULIC CYLINDER
30
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
32
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
40
SCREW HYDRAULIC CYLINDER TO BEARING BRACKET M 12X22
42
LOCK WASHER FITTING TO BRACKET
58
WASHER HYDRAULIC CYLINDER TO CAB
64
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
67
COTTER PIN6,3X36 MM
70
WASHER HYDRAULIC CYLINDER TO CAB
75
WASHER HYDRAULIC CYLINDER TO CAB
80
WASHER HYDRAULIC CYLINDER TO CAB
85
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
100
PUMP (HAND PUMP) WEBER
100
PUMP , Replaced By: A0005537901
105
PUMP , Replaced By: A0005536501
110
PISTONTO 000 553 39 01,WEBER
110
PISTONTO 000 553 23 01,000 553 37 01,
118
BOOTTO 000 553 23 01,000 553 37 01,
126
LEVERTO 000 553 37 01,000 553 39 01,WEBER
130
VALVETO 000 553 39 01,WEBER
130
VALVETO 000 553 23 01,000 553 37 01,
134
SEAL RINGTO 000 553 23 01,000 553 37 01,
138
GROMMET12X2 MM,WEBER
142
SEAL RINGTO 000 553 23 01,000 553 37 01,
146
SEAL RINGTO 000 553 23 01,000 553 37 01,,4 250875
150
SEAL RINGTO 000 553 23 01,000 553 37 01,,4 250876
154
GASKETTO 000 553 23 01,000 553 37 01,
158
SCREW , Replaced By: N000000000190
162
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
166
FILTER
170
FITTED WASHER
174
LOCK RING
178
CLAMPING SLEEVE4X28 MM,TO 000 553 23 01,,4 250876
182
CLAMPING SLEEVE4X12 MM,TO 000 553 23 01,
186
SEAL RINGTO 000 553 37 01,000 553 39 01,WEBER,4 250876
190
BUSHINGTO 000 553 37 01,000 553 39 01,WEBER
194
SCREW OIL FILLING TO 000 553 89 01
198
SEAL RINGTO 000 553 23 01,000 553 37 01,
202
SNAP RING
202
SNAP RINGWEBER,TO 000 553 40 01, UP TO IDENT NO. 5 070891,FROM IDENT NO. SEE SA 31 460
208
GASKET KIT HAND PUMP TO 000 553 37 01,000 553 39 01,WEBER
208
GASKET KIT , Replaced By: A0005502583
216
REPAIR KIT VALVE TO 000 553 54 01,POWER-PACKER,4 733732
224
REPAIR KIT PISTON TO 000 553 54 01,POWER-PACKER,4 733732
230
BRACKET HAND PUMP
234
SCREW , Replaced By: N304017010002
238
WASHER , Replaced By: N000125010532
242
NUT , Replaced By: N910113010000
246
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
250
UNION NUT
254
GLAND , Replaced By: A0019901667
260
HOSE FROM HYDRAULIC LINE TO CYLINDER
266
T-FITTING. FITTING AT INJECTION PUMP
272
FITTING , Replaced By: A0019909871
272
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
278
GROMMET AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET
284
CLAMP LINE MOUNTING
290
SCREW COVER PLATE TO BRACKET
294
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
298
NUT PUMP TO BRACKET
298
NUT , Replaced By: N913004006001
306
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
312
UNION NUT
316
GLAND , Replaced By: A0019901667
320
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
320
FITTING , Replaced By: A0019909871
324
FITTING 3/2-WAY VALVE,CONNECTION: "30"
328
SEAL RING , Replaced By: N007603010110
334
BRACKET HIGH PRESSURE HOSE, 415 5 014668 416 5 000515 417 4 972023
338
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
344
NUT , Replaced By: N910113010000
348
CLAMP ,K 147121, Replaced By: N000000000319
352
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
356
NUT PUMP TO BRACKET
356
NUT , Replaced By: N913004006001
360
LOOM TIE LINE MOUNTING
999
GASKET KIT HAND PUMP
999
GUIDETO 001 553 49 05
