Поз.
Артикул
Описание

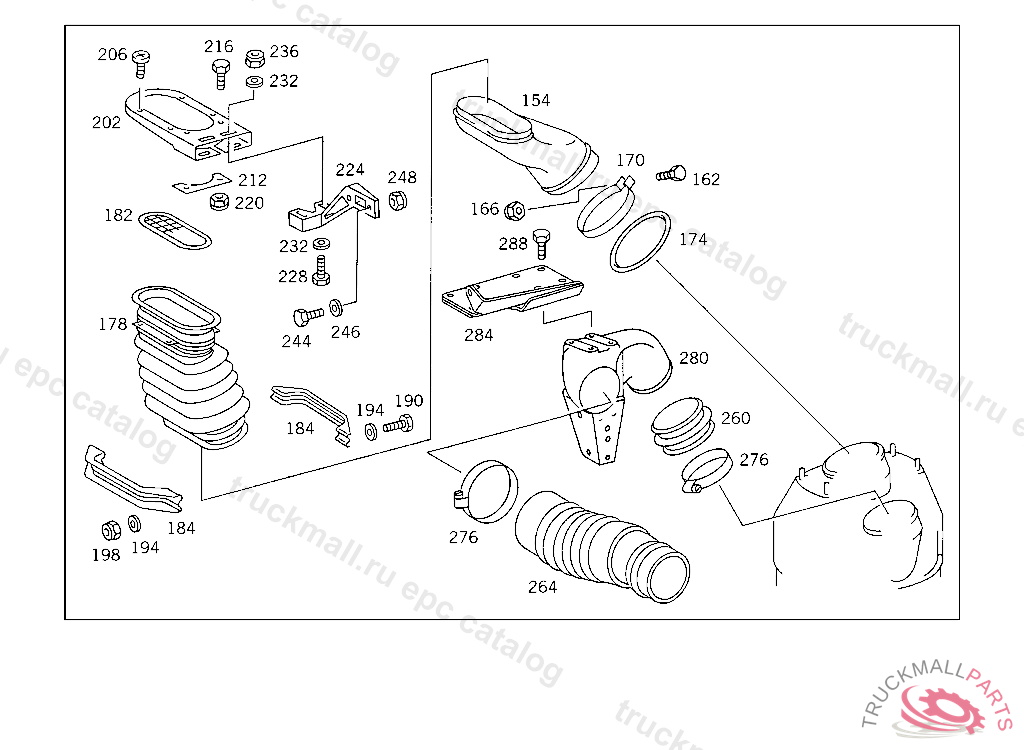

154
PIPE ELBOW (INTAKE PIPE)
154
PIPE ELBOW (INTAKE PIPE)
154
PIPE ELBOW (INTAKE PIPE)
154
PIPE ELBOW (INTAKE PIPE)
162
SCREW SUPPORT TO FENDER
162
SCREW , Replaced By: N304017008018
166
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
166
NUT , Replaced By: N913004008001
166
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
170
CLAMP INTAKE PIPE TO AIR CLEANER
174
SEAL RING INTAKE PIPE TO AIR CLEANER
178
BOOT AIR INTAKE
182
STRAINER BOOT
184
CLAMP BOOT TO INTAKE PIPE
190
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
190
SCREW , Replaced By: N304017008027
194
WASHER , Replaced By: N000125008443
194
WASHER EXHAUST MUFFLER TO STRAP
198
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
198
NUT , Replaced By: N913004008001
198
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
202
BRACKET , Replaced By: A6575280040
202
BRACKET BOOT
206
SCREW BOOT TO BRACKET
212
BRACKET BOOT
216
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
216
SCREW , Replaced By: N304017008016
220
NUT , Replaced By: N913004008001
220
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
220
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
224
SUPPORT BOOT
224
SUPPORT BOOT
224
SUPPORT BOOT
228
SCREW BRACKET TO SUPPORT
232
WASHER STRUT TO CROSS MEMBER
232
WASHER , Replaced By: N007349010007
236
NUT , Replaced By: N910113010000
236
NUT STRAP TO BRACKET
244
SCREW EXHAUST PIPE TO BRACKET
244
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
244
SCREW BRACKET TO SIDE MEMBER
244
SCREW , Replaced By: N304017010002
246
WASHER , Replaced By: N000125010532
246
WASHER RADIATOR TO RUBBER MOUNTING
248
NUT , Replaced By: N910113010000
248
NUT STRAP TO BRACKET
260
HOSE FROM AIR CLEANER TO CAB CONSOLE
264
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
276
CLAMP , Replaced By: N000000000678
276
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
276
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
280
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE
280
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE
284
CONSOLE CAB SUSPENSION,REAR RIGHT
288
SCREW CONSOLE TO CONSOLE
999
SUPPORT AIR CLEANER,4 785295
999
SUPPORT AIR CLEANER
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
BRACKET AIR CLEANER,FRONT RIGHT
999
BRACKET AIR CLEANER,FRONT LEFT,K 000844
999
BRACKET AIR CLEANER,FRONT RIGHT,K 000844
999
MUFFLER AIR CLEANER
999
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE
999
BRACKET AIR CLEANER,REAR RIGHT
999
BRACKET AIR CLEANER,REAR
999
BRACKET AIR CLEANER,REAR
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE,5 343253
999
CONSOLE CAB SUSPENSION,REAR RIGHT,5 742148
999
CONSOLE FRAME
999
STRAP AIR CLEANER
999
SUPPORT , Replaced By: A6565200133
999
SUPPORT , Replaced By: A6565200033
999
STRAP AIR CLEANER TO SUPPORT
999
SUPPORT ,K 000843, Replaced By: A6505200433, +002N000961016009, +002N913004016004
999
SUPPORT ,K 000843, Replaced By: A6505200333, +002N000961016009, +002N913004016004
999
RING WARNING INDICATOR
999
AIR CLEANER
999
FILTER BOWL
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANERMANN & HUMMEL,4 938205
999
AIR CLEANER , Replaced By: A0140948802
999
AIR CLEANER , Replaced By: A0110942602
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANER ,4 256253
999
AIR CLEANER
999
AIR CLEANER ,4 256254
999
AIR CLEANER ,4 256254
999
WARNING INDICATOR AIR CLEANER
