Поз.
Артикул
Описание

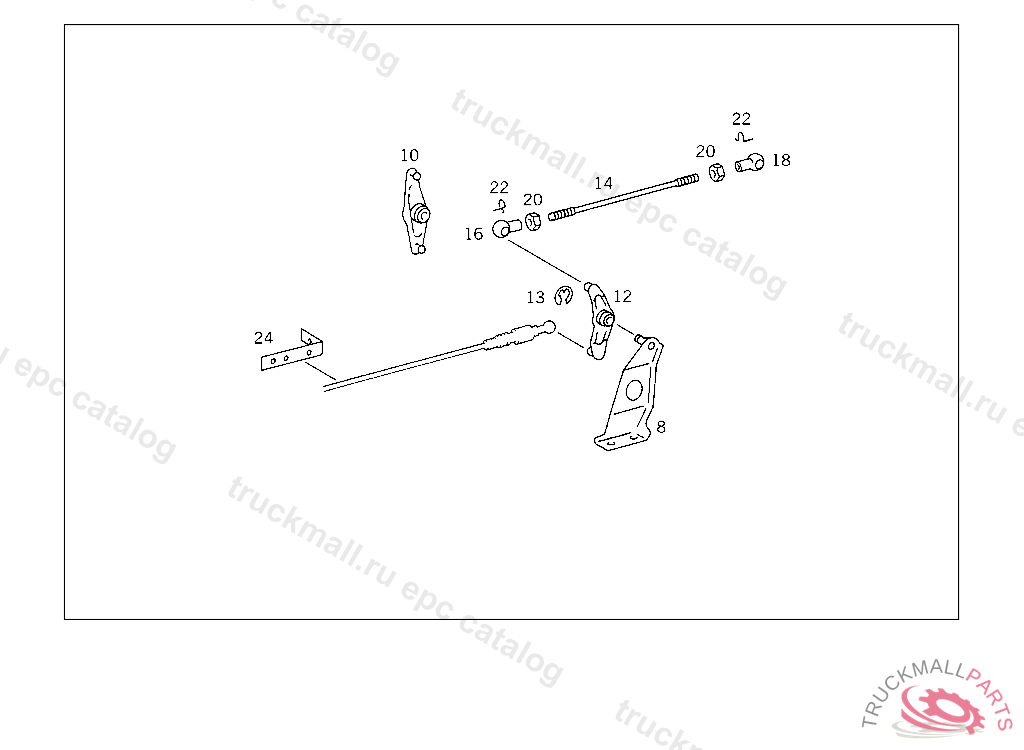

8
BEARING BRACKET INTERMEDIATE BEARING
10
LEVER INTERMEDIATE BEARING
12
LEVER (INTERMEDIATE LEVER)
13
LOCK PLATE INTERMEDIATE BEARING
13
STRAP AIR RESERVOIR TO BRACKET
14
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
16
BALL SOCKET ROD TO BALL PIVOT
18
BALL SOCKET ROD TO BALL PIVOT
20
NUT
22
SECURING CLIP. CIRCLIP
24
BRACKET WIRE CABLE TO RADIATOR MOUNTING CONSOLE
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE FROM RADIATOR TO THERMOSTAT
999
LINE HEATING AND BREATHING
999
FLANGE ENGINE BREATHING
999
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
999
HOSE DE-AERATION, FROM FLANGE TO COOLING WATER EXPANSION TANK
999
CONNECTOR AT WATER PUMP
999
BRACKET OIL DIPSTICK GUIDE TUBE
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
999
SHIM RUBBER MOUNTING TO BRACKET
999
SUPPORT RADIATOR
999
BRACKET RADIATOR MOUNTING,4 428844
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
RADIATOR ,4 428845
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
RADIATOR , Replaced By: A3815010801
999
NUT TURNBUCKLE
999
BRACKET OIL DIPSTICK TO RADIATOR
999
BRACKET OI DIPSTICK GUIDE TUBE
999
RADIATOR"BEHR", NOT USED
999
CLAMP , Replaced By: N916017011000
999
RADIATOR
