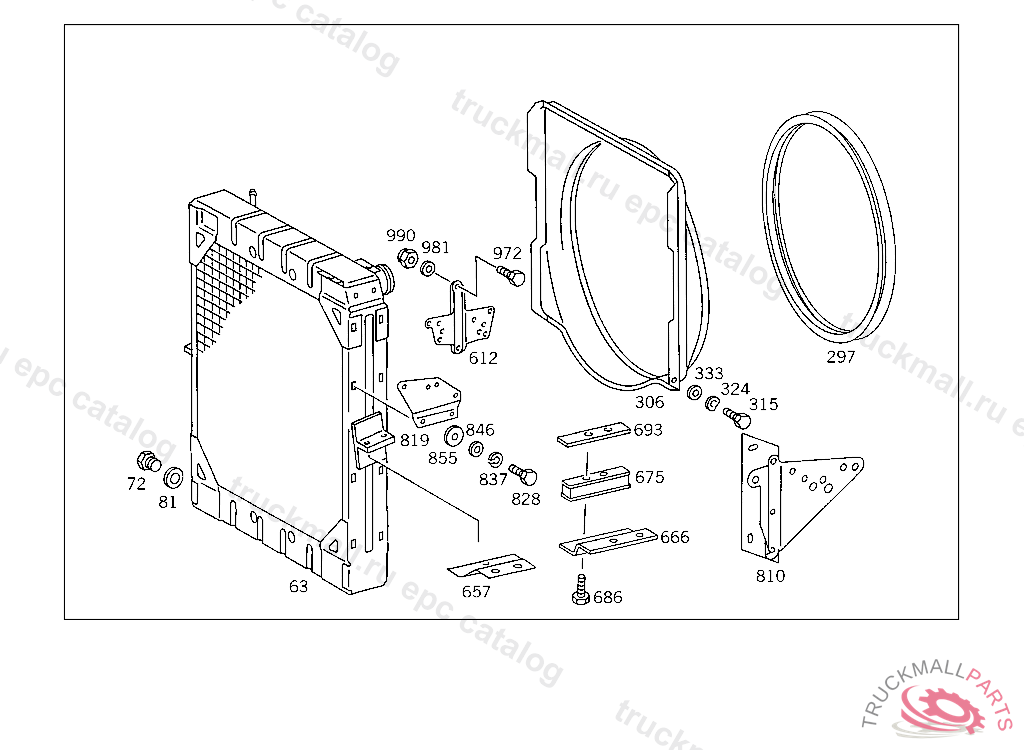

Поз.
Артикул
Описание
63
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
63
RADIATOR"BEHR", NOT USED
63
RADIATOR WATER BEHR
63
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
63
RADIATOR LESS TANK
63
RADIATOR WATER BEHR
63
RADIATOR , Replaced By: A0015010801
63
RADIATOR , Replaced By: A3875002903
72
SCREW PLUG , Replaced By: N007604014101
72
SCREW PLUG WATER DRAIN
81
SEAL RING FUEL LINE TO FEED PUMP
81
SEAL RINGTO 000 553 03 05,000 553 18 05,
297
BOOT FAN SHROUD TO FAN RING
306
AIR BAFFLE
306
AIR BAFFLE FAN SHROUD
306
AIR BAFFLE
306
FAN SHROUD RADIATOR
306
FAN SHROUD RADIATOR
306
FAN SHROUD RADIATOR
315
SCREW , Replaced By: N304017006018
315
SCREW , Replaced By: N304017006016
315
SCREW COVER PLATE TO COVER PLATE M 6 X 12
315
SCREW PUMP TO BRACKET
324
SPRING WASHER LICENSE PLATE TO BRACKET
333
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
612
BRACKET OIL DIPSTICK GUIDE TUBE
657
SUPPORT RADIATOR
657
SUPPORT RADIATOR,RIGHT
657
SUPPORT RADIATOR
657
SUPPORT RADIATOR,LEFT
666
SUPPORT RADIATOR,LEFT
666
SUPPORT RADIATOR,RIGHT
675
RUBBER MOUNTING RADIATOR
686
SCREW END PIECE TO EXHAUST PIPE M 10X25
686
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
686
SCREW EXHAUST PIPE TO BRACKET
686
SCREW , Replaced By: N304017010028
686
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
693
SHIM RUBBER MOUNTING TO BRACKET
693
SHIM RADIATOR TO RIGHT RUBBER MOUNTING
810
BRACKET OIL DIPSTICK TO RADIATOR
810
BRACKET OIL DIPSTICK TO RADIATOR
819
BRACKET OIL DIPSTICK TO RADIATOR
828
SCREW , Replaced By: N304017006020
828
SCREW LICENSE PLATE TO BRACKET
837
SPRING WASHER LICENSE PLATE TO BRACKET
846
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
855
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
855
WASHER COMPRESSED AIR LINE TO BRACKET
972
SCREW REDUCTION VALVE TO BRACKET
972
SCREW , Replaced By: A0079900801
981
WASHER , Replaced By: N000125008443
981
WASHER EXHAUST MUFFLER TO STRAP
990
NUT , Replaced By: N913004008001
990
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
990
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
RADIATOR WATER BEHR
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
CLAMP LINE MOUNTING
999
CLAMP LINE MOUNTING
999
BRACKET OIL LINE TO TRANSMISSION,REAR LEFT
999
BRACKET OI DIPSTICK GUIDE TUBE
999
BRACKET OIL DIPSTICK TO RADIATOR
999
RADIATOR , Replaced By: A3815010801
999
BRACKET , Replaced By: A3604280243
999
HOSE FROM RADIATOR TO WATER PUMP
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
SHIM RUBBER MOUNTING TO BRACKET
999
BRACKET OIL LINES
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
RADIATOR , Replaced By: A3855010401
999
RADIATOR , Replaced By: A3875002903
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
HOSE DE-AERATION, FROM FLANGE TO COOLING WATER EXPANSION TANK
999
RADIATORBEHR,5 121637
999
NUT , Replaced By: N913004008001
