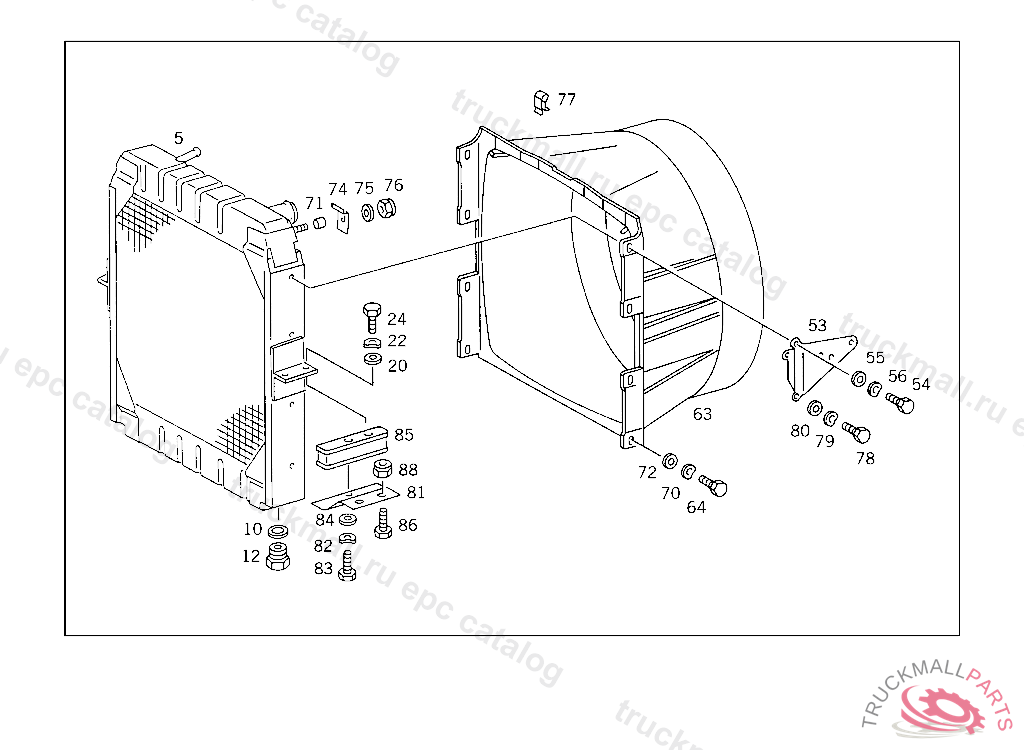

Поз.
Артикул
Описание
5
RADIATOR ,4 232358
5
RADIATOR ,4 428845
5
RADIATOR ,4 428844
5
RADIATOR ,4 428844
5
RADIATOR ,4 428845
5
RADIATOR ,4 428845
10
SEAL RING FUEL LINE TO FEED PUMP
12
SCREW PLUG WATER DRAIN
12
SCREW PLUG , Replaced By: N007604014101
20
WASHER , Replaced By: N000125010532
20
WASHER RADIATOR TO RUBBER MOUNTING
22
SPRING WASHER STEERING COLUMN BRACKET TO CAB
24
SCREW END PIECE TO EXHAUST PIPE M 10X25
53
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
53
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
54
SCREW CLAMP TO BRACKET AND TO PIPE
55
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
56
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
63
FAN SHROUD , SHORTEN BY 65 MM ON REPALCEMENT DELIVERY UP TO CHASSIS 4 232358, Replaced By: A3835050355
63
FAN SHROUD ,4 232359
64
SCREW , Replaced By: N304017006018
64
SCREW COVER PLATE TO BRACKET
64
SCREW COVER PLATE TO COVER PLATE M 6 X 12
70
SPRING WASHER LICENSE PLATE TO BRACKET
71
SPACER RING , Replaced By: A3469910040
71
SPACER SLEEVE. SPACER TUBE FAN SHROUD TO RADIATOR,4 1619994 428844
72
WASHER , Replaced By: N009021006208
72
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
72
WASHER COMPRESSED AIR LINE TO BRACKET
74
SUPPORTING PLATE FAN SHROUD TO RADIATOR,4 1619994 428844
75
WASHER , Replaced By: N009021006208
75
WASHER COMPRESSED AIR LINE TO BRACKET
76
NUT , Replaced By: N913004006001
76
NUT PUMP TO BRACKET
77
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
78
SCREW COVER PLATE TO BRACKET
78
SCREW LICENSE PLATE TO BRACKET
78
SCREW , Replaced By: N304017006020
79
SPRING WASHER LICENSE PLATE TO BRACKET
80
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
81
SUPPORT RADIATOR MOUNTING,4 242404
81
SUPPORT RADIATOR MOUNTING,4 428845
81
BRACKET RADIATOR MOUNTING,4 428844
82
SPRING WASHER STEERING COLUMN BRACKET TO CAB
83
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
83
SCREW , Replaced By: N304017010028
83
SCREW RADIATOR TO BUFFER
84
WASHER , Replaced By: N000125010532
84
WASHER RADIATOR TO RUBBER MOUNTING
85
RUBBER MOUNTING RADIATOR MOUNTING,4 428845
85
RUBBER MOUNTING RADIATOR
86
SCREW HEATING WATER LINE TO SIDE MEMBER, 380.0/1,381.0/1,383.0/1,385.0/1 UP TO CHASSIS 4 661119,380.2,381.2/3,385.2 UP TO CHASSIS 4 661211
88
NUT SUPPORT TO SIDE MEMBER
999
SHIM RUBBER MOUNTING TO BRACKET
999
SUPPORT RADIATOR MOUNTING,4 242404
999
SHIM RUBBER MOUNTING TO BRACKET
999
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
999
BRACKET , Replaced By: A3855010220
