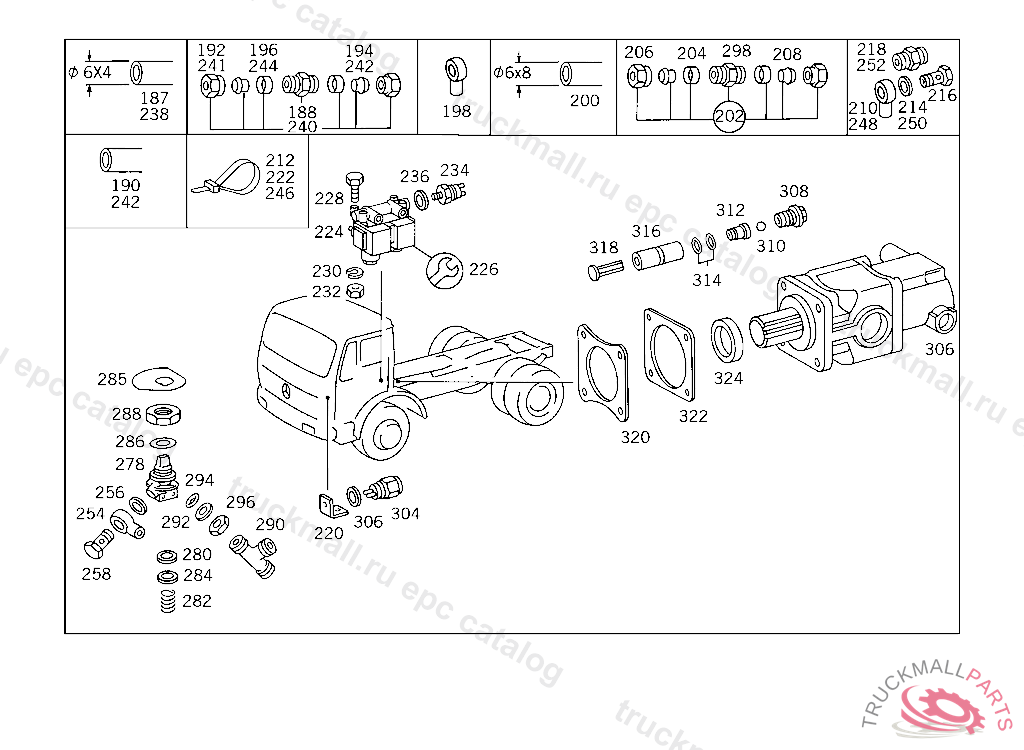

Поз.
Артикул
Описание
187
PLASTIC PIPE RISING PIPE 4X6 MM
187
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
188
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
190
INSULATING HOSE8X0,01 MM
190
INSULATING HOSE COLOR CODE BLUE 2X0,01 MM
192
UNION NUT LINE CONNECTIONS
194
GLAND BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
196
SLEEVE LEAK LINE
196
BUSHING , Replaced By: N915062004000
198
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
198
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
198
BANJO UNION , Replaced By: N915052004006
200
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
202
FITTING , Replaced By: A0029905971
202
FITTING (PARTS KIT),LINE RUPTURE
204
SLEEVE , Replaced By: N915062006000
204
SLEEVE LINE CONNECTION
206
UNION NUT LINE CONNECTION
208
GLAND LINE CONNECTION
210
BANJO UNION , Replaced By: N915052006013
210
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
212
LOOM TIE LINE MOUNTING 280 MM
214
SEAL RING , Replaced By: N007603010110
214
SEAL RING PNEUMATIC VALVE
214
SEAL RING LINE CONNECTION
216
HOLLOW SCREW LINE TO OIL RADIATOR
216
HOLLOW SCREW , Replaced By: N915047012100
216
HOLLOW SCREW , Replaced By: N915047008100
216
HOLLOW SCREW LINE CONNECTION
216
HOLLOW SCREW LINE CONNECTION
218
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
220
BRACKET SENSOR CABLE TO FRONT AXLE
222
LOOM TIE LINE MOUNTING
224
VALVE (SOLENOID VALVE), FOR 24-V SYSTEM,SEE SA 25498
226
REPAIR KIT SOLENOID VALVE HERION,9417237/0734/12V
226
REPAIR KIT SOLENOID VALVE HERION,9417232/0711/12V
228
SCREW , Replaced By: N304017006026
230
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
232
NUT BALL PIVOT TO LEVER
234
SWITCH , Replaced By: A0015455314
234
SWITCH NEUTRAL POSITION
236
SEAL RING , Replaced By: N007603010110
236
SEAL RING PNEUMATIC VALVE
238
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
240
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
241
UNION NUT
242
SEAL CONE
242
GLAND , Replaced By: A0019901667
244
BUSHING , Replaced By: N915062004000
244
SLEEVE LEAK LINE
246
LOOM TIE LINE MOUNTING
248
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
248
BANJO UNION , Replaced By: N915052004006
250
SEAL RING LINE CONNECTION
252
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
254
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
256
SEAL RING , Replaced By: N007603010110
256
SEAL RING PNEUMATIC VALVE
258
HOLLOW SCREW LINE CONNECTION
278
VALVE 3/2-WAY VOSS
278
VALVE 3/2-WAY WABCO
278
VALVE 3/2-WAY BOSCH
278
VALVE 3/2-WAY KNORR
280
SEAL RING INSIDE WABCO
282
SPRING INSIDE WABCO
284
SEAL RING TOP WABCO
285
UNIT IDENTIFICATION PLATE SYMBOL FOR P.T.O. DUMPER PUMP
286
WASHER 3/2-WAY VALVE TO BRACKET
288
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
290
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
292
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
294
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
296
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
298
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
298
FITTING , Replaced By: N915039008100
304
SWITCH EXHAUST BRAKE,K 251255
306
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 266
308
SCREW PLUG , Replaced By: A0019974430
308
SCREW PLUG
310
BALL10 MM
312
VALVE CHECK VALVE
314
SEAL RING
316
PISTON
318
VALVE
320
GASKET CASE PART I TO CASE PART II
322
GASKET CONNECTION FLANGE
324
SEAL RING
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
SCREW BRACKET TO ENGINE MOUNTING
999
SCREW , Replaced By: N308676016015
999
SCREW COVER PLATE TO BRACKET
999
SCREW CONNECTOR
999
BOOT , Replaced By: A3892680097
999
BOOT , Replaced By: A3892680097
999
COVERING
999
COVERING CONNECTING FLANGE
999
COVERING , 714.200-202,230,234 UP TO TRANSMISSION 008391,714.203-205,231-233 UP TO TRANSMISSION 001680,714.3 UP TO TRANSMISSION 000922 FROM TRANSMISSION SEE UNIT MICROFICHE,MODEL 714.2 OR 714.3, Replaced By: A3852610388, +001A3852611040, +001A3852682274, +002N000931006036, +001N000934008010, +001N912004008102
999
COVERING GEAR-CLUSTER/SHIFT-PATH INTERLOCK, 002,006 FROM CHASSIS 4 263014, 034,134 FROM CHASSIS 4 276784 714.231 UP TO TRANSMISSION 001680,714.301 UP TO TRANSMISSION 000922,FROM TRANSMISSION SEE MICROFICHE,MODEL 714.2 OR 714.3
999
SPRING , ONLY USED ON DUMP TRUCK ASSEMBLIES
999
SPRING CHECK VALVE, ONLY USED ON DUMP TRUCK ASSEMBLIES
999
REPAIR KIT SHIFT LEVER VALVE
