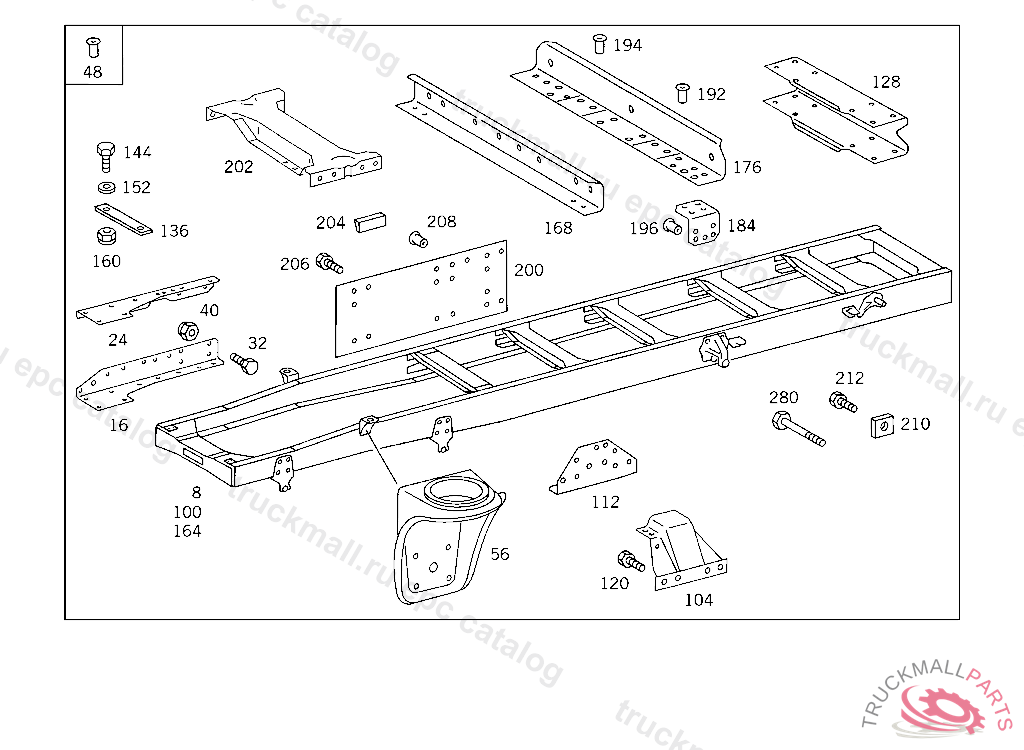

Поз.
Артикул
Описание
8
FRAME
8
FRAME
16
GUSSET PLATE LEFT BOTTOM
16
GUSSET PLATE RIGHT BOTTOM
24
GUSSET PLATE RIGHT TOP
24
GUSSET PLATE LEFT TOP
32
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
40
NUT , Replaced By: N910113014000
48
RIVET BRACKET TO FRAME
56
BODY SUPPORT CAB SUSPENSION,FRONT
100
FRAME
104
REINFORCEMENT
112
ANGLE RIGHT
112
ANGLE LEFT
120
SCREW GUSSET PLATE TO SIDE MEMBER
128
CROSS MEMBER (REAR CROSS MEMBER)
136
REINFORCEMENT BRACKET TO CROSS MEMBER,024208
144
SCREW PROPELLER SHAFT BEARING TO CROSS MEMBER
152
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
160
NUT , Replaced By: N910113010002
164
FRAME
164
FRAME
164
FRAME
164
FRAME
164
FRAME
164
FRAME
168
CROSS MEMBER AT DRIP PAN
176
CROSS MEMBER TO TRANSFER CASE
184
ANGLE LEFT
184
ANGLE RIGHT
184
ANGLE LEFT
184
ANGLE RIGHT
184
ANGLE RIGHT
184
ANGLE LEFT
184
ANGLE LEFT
184
ANGLE RIGHT
192
RIVET10X28 MM, TO BE ADAPTED DURING ASSEMBLY
194
RIVET10X24
196
RIVET FRAME TRUSS TO SIDE MEMBER
196
RIVET14X55 MM, TO BE ADAPTED DURING ASSEMBLY
200
REINFORCEMENT CROSS MEMBER NO.3
202
CROSS MEMBERN.04
202
CROSS MEMBERNO. 6
204
SHIM CROSS MEMBER TO SIDE MEMBERS
206
SCREW , Replaced By: N308676014012
208
RIVET14X42 MM
210
SHIM FRONT SPRING FRONT AND REAR BRACKETS TO SIDE MEMBER
212
SCREW BRACKET TO SIDE MEMBER
280
SCREW BRACKET TO FRAME SIDE MEMBER M 14X1.5X60
280
SCREW , Replaced By: N308676014012
280
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
280
SCREW BATTERY CASE TO SIDE MEMBER
280
SCREW MOUNTING TO CONSOLE M 14X55
999
FRAME
999
FRAME
999
FRAME
999
BRACKET BRACKET TO CROSS MEMBER NO.4
999
SPRING LEAF
999
WASHER BRACKET TO FRAME
999
FRAME
999
BRACKET TO INTERMEDIATE SHAFT BEARING
999
FRAME
999
FRAME
999
FRAME ,D 426186
999
FRAME ,D 426186
999
FRAME ,D 426186
