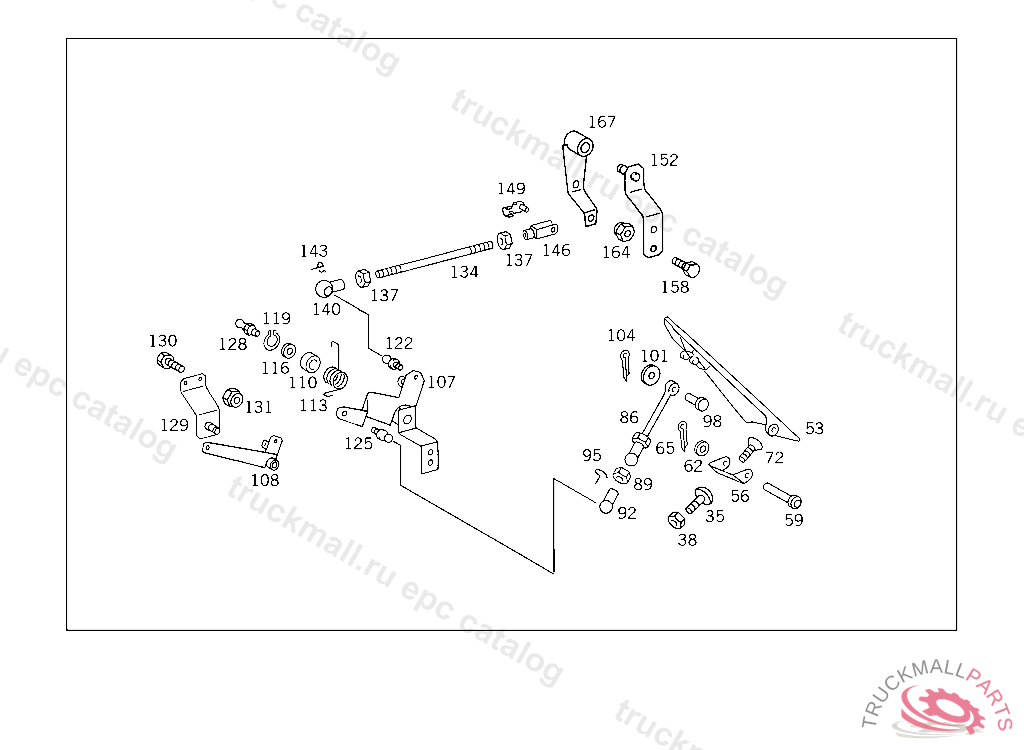

Поз.
Артикул
Описание
35
STOP
35
STOP
38
NUT ,B 884219
53
PEDAL PLATE ACCELERATOR PEDAL
56
ARTICULATION PIECE ACCELERATOR PEDAL
59
PIN ACCELERATOR PEDAL TO JOINT
62
WASHER GROUND CABLE
65
COTTER PIN STRAP TO BRACKET
86
ROD ACCELERATOR PEDAL TO LEVER 151 MM,D 351515
86
ROD ACCELERATOR CONTROL
89
NUT BATTERY CASE
92
BALL SOCKET ROD TO BALL PIVOT
95
SECURING CLIP. CIRCLIP
98
PIN ROD TO PEDAL PLATE
101
WASHER6,4
104
COTTER PIN ROLLER TO LEVER
107
LEVER BRACKET
110
BUSHING , USED WITH AIR BRAKE
113
SPRING REVERSING LEVER
116
FITTED WASHER , USED WITH AIR BRAKE
119
LOCK RING PIN TO BEARING BRACKET, 380.017,080,081,180,181 ONLY FOR SHORT CAB MERCEDES-BENZ
122
BALL PIVOT , Replaced By: A3129910120
122
BALL PIVOT
125
BALL PIVOT
128
GREASE NIPPLE PROTECTIVE TUBE
134
ROD , Replaced By: N900331006172, +001A3009910022, +002N000934006006, +002N071752006001, +001N071805010402
134
PULL ROD FROM REVERSING LEVER TO CONTROL LEVER 6X670X30/30
137
NUT
140
BALL SOCKET FROM REVERSING LEVER TO CONTROL LEVER
143
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
146
YOKE ACCELERATOR CONTROL
149
PIN OPERATING ROD TO BRACKET
152
BRACKET AT LEFT SIDE MEMBER
158
SCREW AIR DUCT TO CAB
164
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
167
LEVER ACCELERATOR PEDAL CONTROL
999
GREASE NIPPLE
