Поз.
Артикул
Описание

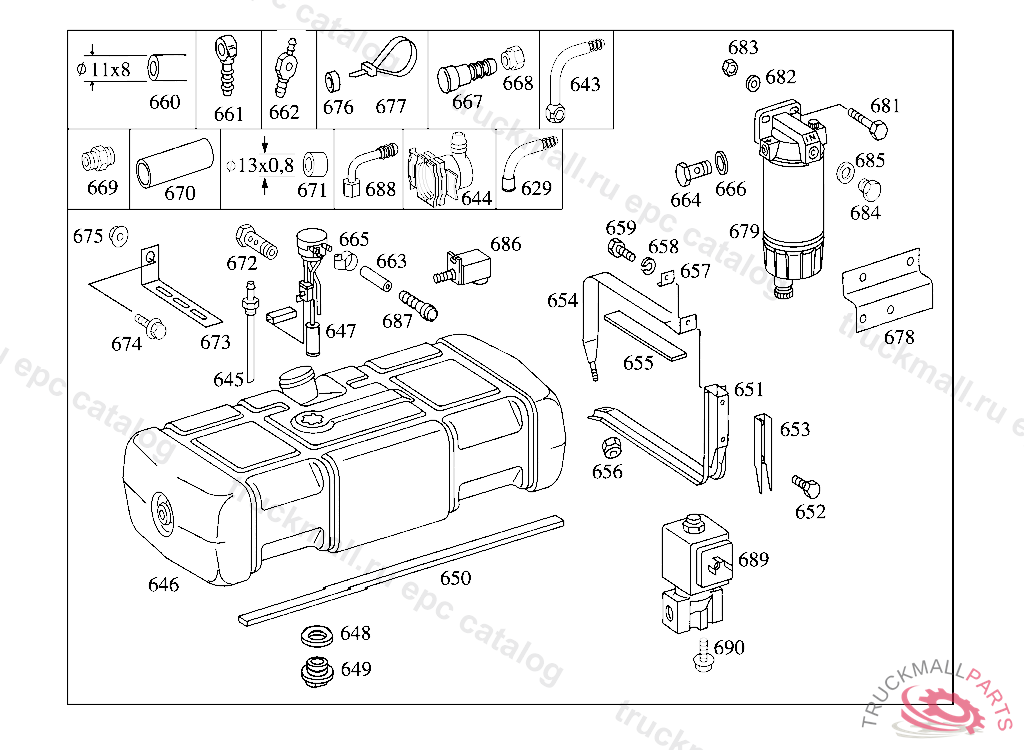

629
ELBOW FITTING FUEL LINES TO FITTING CONEXAO ESPIGAO - "L"
629
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
643
HOSE
643
HOSE FUEL LINES TO FITTING ESPIGAO COM OLHAL - "L"
644
FITTING
645
LINE
646
FUEL TANK LESS SENDER UNIT
646
FUEL TANK100 L
647
SENDER UNIT
647
SENDER UNIT
647
FUEL GAUGE DASH UNIT
648
SEAL RING FUEL STRAINER SCREEN
649
FITTING
649
FITTING
649
FITTINGTO A 695 470 00 01
649
FITTING FINE THREADM 35X1,5 MMTO A6884700103
650
REINFORCEMENT
651
SUPPORT FUEL TANK,FRONT AND REAR
652
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
652
SCREW BRACKET TO FRAME
653
BRACKET
654
STRAP FUEL TANK TO SUPPORT
655
PAD SUPPORT TO SIDE MEMBER
656
NUT BRACKET TO RETARDER
656
NUT , Replaced By: N913023010002
657
PLATE STRAP TO CONSOLE
658
LOCK WASHER BRACKET TO SUPPORTING ARM
659
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
659
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
660
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
661
BANJO UNION
662
HOSE
662
BANJO UNION10/14
662
BANJO UNION
663
HOSE FEED LINE AND RETURN LINE
664
HOLLOW SCREW
665
CLAMP HOSE TO FITTING AND TO OIL TANK
665
CLAMP , Replaced By: N000000000667
665
CLAMP , Replaced By: N916017011001
665
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
666
SEAL RING INJECTION PUMP
666
SEAL RING FUEL LINE TO FEED PUMP
667
CONNECTOR LINE CONNECTION
668
NUT. UNION NUT RETURN
668
UNION NUT RETURN LINE
669
CONNECTION FITTING , Replaced By: A0049971772
669
FITTING AT VALVE
670
INSULATING HOSE CHECK VALVE,CONNECTION "2"
670
HOSE VIOLET
670
HOSE GREEN
670
HOSE WITHE
670
INSULATING HOSE , ORDER BY THE METER
671
HOSE WITHE
672
HOLLOW SCREW FUEL LINE TO FUEL TANK
673
BRACKET BATTERY CABLE
674
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
675
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
676
WASHER BRACKET TO LEFT SIDE MEMBER
676
WASHER , Replaced By: A3609902340
677
LOOM TIE LINE MOUNTING
677
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
677
LOOM TIE ELECTRIC CABLE MOUNTING
677
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
677
LOOM TIE CABLE TO ALTERNATOR
677
LOOM TIE AIR INTAKE HOSE TO CLAMP
677
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
677
LOOM TIE LINE TO BRACKET 508 MM
678
BRACKET WATER SEPARATOR
679
SEPARATOR WATER SEPARATOR PARKER HANNIFIN
681
SCREW CROSS MEMBER TO SIDE MEMBERS
682
WASHER GROUND CABLE
683
NUT BRACKET TO SIDE MEMBER,XB209706
684
SCREW PLUG
685
SEAL RING INJECTION PUMP
686
VALVE (VENT VALVE)
687
SEAL CONE
688
ELBOW FITTING AT VALVE
689
VALVE (SOLENOID VALVE)
690
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
999
SEPARATORTO 374 094 00 02
999
POWER CYLINDER EXHAUST BRAKE
999
CABLE ACCELERATOR PEDAL TO A 688 300 00 30
999
CABLE INJECTION PUMP SIDE TO A 688 300 00 30
999
CABLE INJECTION PUMP SIDE TO 6883000132
999
CABLE ACCELERATOR PEDAL TOA6883000132
999
NUT FOLLOWER FLANGE TO PROPELLER SHAFT TO 000 410 03 30
999
FLANGE
999
RETAINING STRAP TO A 688 490 11 01
999
BRACKET TO A 688 490 11 01
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
PLASTIC PIPE FRONT AXLE PNEUMATIC SUSPENSION 12X9 MM, ORDER BY THE METER
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
SEAL RING SPRING LOAD ACCUMULATOR CYLINDER TO M10 / VOSS 230,D 259885
999
LOCK SPRING LOAD ACCUMULATOR CYLINDER TO M10 / VOSS 230,D 259885
999
LOCK CLUTCH HOSE
999
CLAMP BOWDEN CABLE TO CAB
999
UNION SCREW SPRING LOAD ACCUMULATOR CYLINDER M10X1 / VOSS 230,D 259885
999
GREASE NIPPLE
999
DRAG LINK ENDTO 688 460 83 05, 86 05
999
RUBBER BUFFER COVERING TO FRAME
999
CONNECTOR
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ELBOW FITTINGTO M10 / 4MM /VOSS 230
999
HOSE , Replaced By: A0009872827
999
CAP OIL REFILLING
999
NUT
999
STOP FULL THROTTLE
999
BUSHING CONTROL LEVER,B 892892
999
GROMMET
999
PLASTIC SECTION SELF-ADHESIVE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
FILTER ELEMENT ADDITIONAL TO 376 090 82 04
999
SHIM TOOLS AND ACCESSORIES
999
MERCEDES STAR
999
CLAMP TOOLS AND ACCESSORIES
999
CLIP TOOLS AND ACCESSORIES
999
NUT
999
LINE NO.1-TO-NO.2-CONNECTING-POINT LOW-PRESSURE OIL-LINE "15 MM", NOT USED
999
LINE FROM OIL TANK TO HYDRAULIC PUMP, NOT USED
999
BRACKET TAIL LAMP
999
RUBBER MOUNTING
999
BOOT STEERING COLUMN PANELLING, BLACK,NO.9051, STATE COLOR WHEN ORDERING
999
LOCKING CAP AIR COMPRESSOR
999
OIL FILLER NECK ,B 797839
999
HOSE
999
FILTER WATER SEPARATOR
999
FITTING. FILTER
999
FILTER
999
SUPPORTING ARM
999
SUPPORTING ARM
999
GUIDE SHIFTING TUBE
999
CROSS MEMBER
999
LINE , NOT USED
999
LINE
999
EXHAUST PIPE
999
FRONT EXHAUST PIPE
999
BRACKET
999
BRACKET OIL COOLER
999
BRACKET OIL COOLER
999
SPACER TUBE CHARGING AIR INTERCOOLER TO 664 501 86 01
999
CONTROL UNIT
999
SPACER RING
999
SNAP RING
999
HOSE FROM AIR CLEANER TO AIR COMPRESSOR
999
CLAMP AIR INTAKE PIPE
999
WASHER , Replaced By: A4039900040
999
STOP
999
BANJO UNION
999
OIL COOLER (OIL COOLER)
999
PIPE REMOTE GEARSHIFT MECHANISM
999
LINE FROM HOSE TO TANK, Replaced By: A6644200136
999
HOLLOW SHAFT
999
WASHER
999
LOCK
999
VALVE REMOTE GEARSHIFT MECHANISM
999
BRACKET
999
RUBBER BUFFER CAB TO FRONT CONSOLE
999
STOP CAB TO FRONT CONSOLE
999
SPACER TUBE CAB TO FRONT CONSOLE
999
BEARING BRACKET TO SHACKLE
999
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
AIR CLEANER"MANN",B 797839
999
LEVER , Replaced By: A6883010120, +001N006799009002
999
LEVER
999
CROSS MEMBERNO. 1
999
COVER CAB SUSPENSION
999
WASHER CAB TO FRONT CONSOLE
999
SHIM CAB SUSPENSION
999
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING 1616 MM
999
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
HOSE SUCTION LINE CONNECTION
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
STRAP FUEL TANK MOUNTING
999
BRACKET EXHAUST MUFFLER SUPPORT TO SIDE MEMBER TO A 688 490 08 01,D 462817
999
SUPPORT
999
REAR EXHAUST PIPE ,D 250888 NOT USED
999
REAR EXHAUST PIPE ,D 250888 NOT USED
999
SUPPORT RIGHT
999
SUPPORT LEFT
999
RADIATOR WATER
999
BRACKET
999
BRACKET
999
HOSE FROM RADIATOR TO INTERMEDIATE PIECE
999
HOSE FROM CONNECTING PIPE TO EXPANSION TANK
999
HOSE
999
STRUT
999
AIR INTAKE PIPE ,B 862668
999
BRACKET BRACKET TO MOUNTING PLATE
999
BRACKET BUMPER BRACKETS
999
COVERING
999
BUMPER
999
HOSE TO AIR CLEANER
999
HOSE FROM AIR INTAKE PIPE TO AIR COMPRESSOR
999
INTAKE CASE
999
HOSE
999
BRACKET LEFT, ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER, Replaced By: A9795410140
999
TYPE DESIGNATION , Replaced By: A6938170315
999
WASHER CAB TO FRONT CONSOLE
