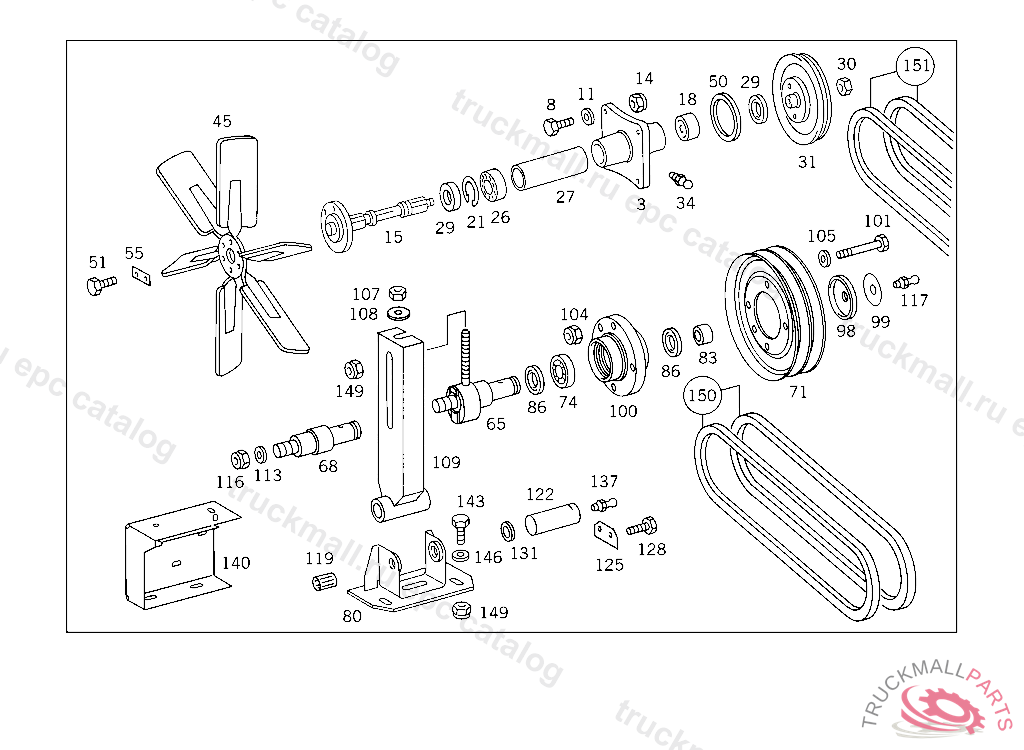

Поз.
Артикул
Описание
8
SCREW REGULATING VALVE TO BRACKET
8
SCREW ,R 034014
11
WASHER TRAILER PLUG SOCKET TO BRACKET
14
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
15
FAN SHAFT ,D 276362
26
BALL BEARING. GROOVED BALL BEARING FAN DRIVE,D 276362
26
BALL BEARING FAN DRIVE
27
SPACER TUBE
29
SEAL RING CASE COVER
29
RADIAL SEAL RING
29
SEAL RING
29
SEAL RING FAN DRIVE
50
WASHER
65
LEVER BELT TIGHTENER PULLEY
68
PIN BELT TIGHTENER
71
PULLEY BELT TIGHTENER PULLEY
71
PULLEY BELT TIGHTENER
74
BALL BEARING BELT TIGHTENER PULLEY
74
BALL BEARING BELT TIGHTENER PULLEY
80
STAY ,D 180260
83
SPACER TUBE BELT TIGHTENER PULLEY
86
SEAL RING BELT TIGHTENER PULLEY
98
EXPANSION PLUG BELT TIGHTENER PULLEY
99
LOCK BELT TIGHTENER PULLEY
100
HUB BELT TIGHTENER PULLEY
101
SCREW BELT TIGHTENER PULLEY
104
NUT BRACKET TO SIDE MEMBER
105
WASHER , Replaced By: N000125008443
107
NUT HUB CAP TO BRACKET
108
WASHER , Replaced By: A3829907140
109
SUPPORT ,D 196082
113
WASHER , Replaced By: N000125017016
116
NUT
117
GREASE NIPPLE INTERMEDIATE LEVER
119
NEEDLE BEARING (TIGHTENER ARM)
122
PIN
122
PIN (TIGHTENER ARM)
125
LOCK
128
SCREW EXHAUST BRAKE SEPARATION POINT
131
WASHER (TIGHTENER ARM)
131
WASHER (TIGHTENER ARM)
131
WASHER (TIGHTENER ARM)
140
SUPPORT TIGHTENER PULLEY TO SUPPORT,D 196083
140
SUPPORT , Replaced By: A3825047501
143
SCREW ANGLE TO CROSS MEMBER M 10X30
146
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
149
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
151
V-BELT , Replaced By: A3829970392
151
V-BELT13.5X1350
999
V-BELT FAN DRIVE,D 180261
