Главная
›
Mercedes
›
BUS
›
OH 1621 L,OH 1623 LG
›
382.068
›
30 CONTROL
›

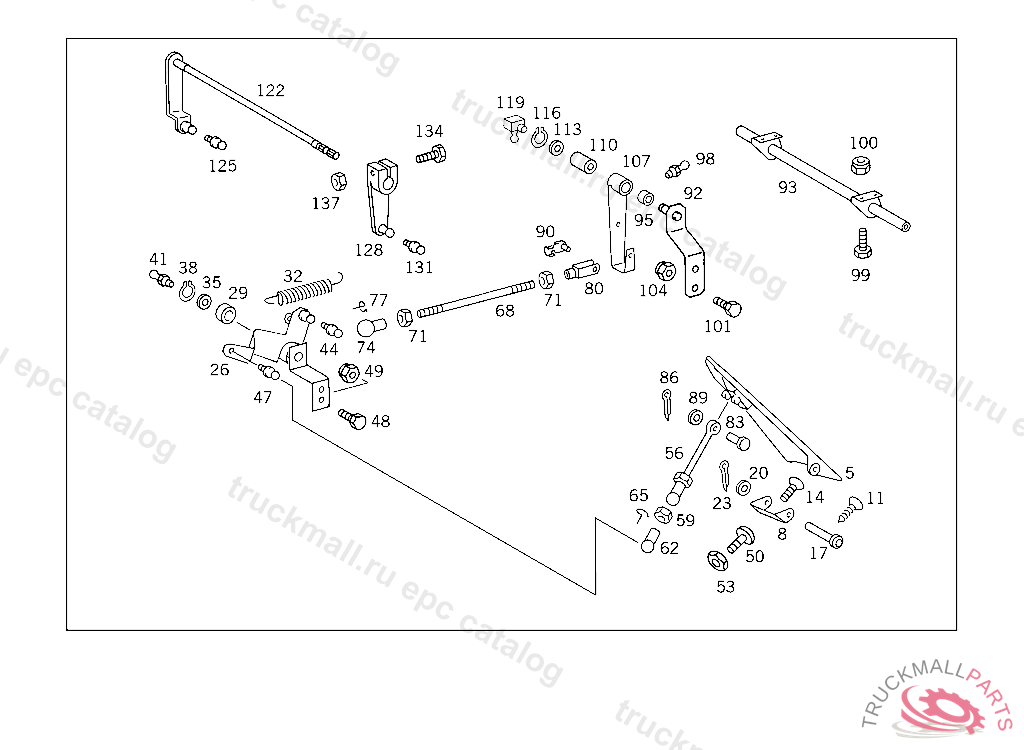

060 ACCELERATOR PEDAL CONTROL IL. 1
Mercedes N071805013203 - Втулка
OH 1621 L,OH 1623 LG 382.068
30 CONTROL - 060 ACCELERATOR PEDAL CONTROL IL. 1
Поз.
Артикул
Описание
5
A3073010002
PEDAL PLATE ACCELERATOR PEDAL
8
A3013010305
ARTICULATION PIECE ACCELERATOR PEDAL
11
N007972006002
SHEET METAL SCREW ACCELERATOR PEDAL TO FLOOR PLATE
14
N000963008000
SCREW ARTICULATION ELEMENT TO FLOOR M8X20,D 209703
17
N001434010120
PIN ACCELERATOR PEDAL TO JOINT
20
N000125010518
WASHER , Replaced By: N000125010532
23
N000094003202
COTTER PIN STRAP TO BRACKET
50
A3822917041
STOP
50
A3822917141
STOP
53
N000439008201
NUT ,B 884219
56
A3823005615
ROD ACCELERATOR PEDAL TO LEVER 151 MM,D 351515
59
N000934008000
NUT LEVER TO SHIFTING SHAFT
62
N071805013203
BALL SOCKET ROD TO BALL PIVOT
65
N071805013402
SECURING CLIP. CIRCLIP
83
N001434006099
PIN ROD TO PEDAL PLATE
86
N000094001609
COTTER PIN BATTERY COVER TO 388 540 70 14
89
N009021006104
WASHER6,4
999
N000934006012
NUT L.H. THREAD
