Поз.
Артикул
Описание

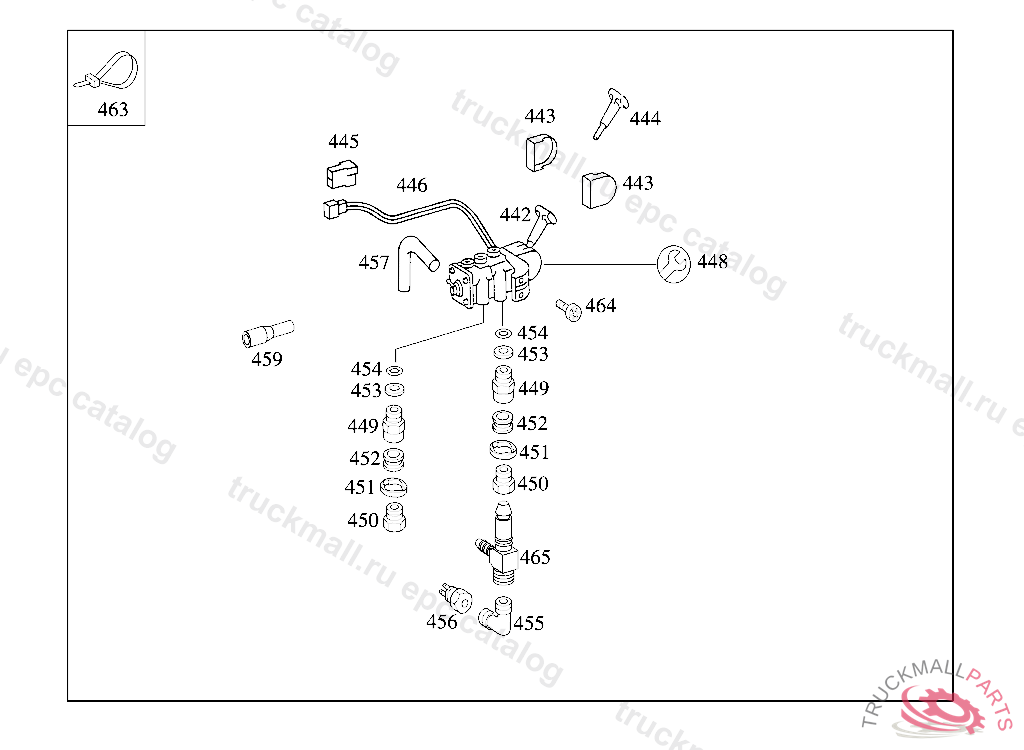

442
VALVE (PARKING BRAKE VALVE)
442
VALVE (PARKING BRAKE VALVE)
442
BRAKE VALVE (PARKING BRAKE VALVE)
442
BRAKE VALVE (PARKING BRAKE VALVE) KNORR
442
BRAKE VALVE (PARKING BRAKE VALVE)
442
BRAKE VALVE (PARKING BRAKE VALVE) WABCO
443
PROTECTIVE CAPTO 384 430 76 09, NO.8650I.......I I I II .......INO.9985I I I II I
444
HANDLETO 693 431 71 05
444
HANDLE PARTS KIT TO 695 431 75 05
444
KNOB (PARTS KIT) TO 384 430 76 09, NO.8650I.......I I I II .......INO.9985I I I II I
444
HANDLE PARTS KIT TO 693 431 72 05
445
PLUGTO 693 431 71 05
446
ELECTRIC CABLE PARTS KIT TO A 693 431 72 05
448
RS PARKING BRAKE VALVETO 693 431 71 05
448
REPAIR KITTO 384 430 76 09
448
REPAIR KIT PARKING BRAKE VALVE TO 695 431 75 05
448
VALVE REPAIR KIT TO 695 431 70 05
448
REPAIR KITTO 693 431 7205
448
REPAIR KITTO 384 430 73 09
448
REPAIR KITTO 693 431 71 05, Replaced By: A0004302509
449
FITTING PARKING BRAKE VALVE
450
SCREW. UNION SCREW , Replaced By: A0009973734
451
LOCK , Replaced By: A0009945448
452
SEAL RING , Replaced By: A0009940747
453
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
454
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
455
FITTING , Replaced By: A0019909871
456
SWITCH PARKING BRAKE VALVE,CONNECTION: "11"
457
HOSE WATER SEPARATOR
457
HOSE HAND BRAKE VALVE
459
HOSE HAND BRAKE VALVE
463
LOOM TIE ELECTRIC CABLE MOUNTING
463
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
464
HEXALOBULAR BOLT. SCREW HAND BRAKE VALVE TO BRACKET M 8X12
464
HEXALOBULAR BOLT EXPANSION TANK M8X20
465
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
999
SLEEVE LINE CONNECTION
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
SCREW , Replaced By: N910143008002
999
GLAND , Replaced By: A0019901967
999
BRACKET AT RIGHT SIDE MEMBER
999
CLAMP BATTERY POS. CABLE TO BRACKET
999
LEDGE
999
LEDGE
999
HOSE EXHAUST BRAKE CYLINDER
999
WEB BRAKE BOOSTER ASSEMBLY TO FIRE WALL
999
BRAKE HOSE REAR AXLE
999
SPRING RETAINER
999
CONNECTOR AIR RESERVOIR,CONNECTION: "3"
999
BRACKET LINE TO SIDE MEMBER
999
BRACKET BRAKE LINE TO REAR AXLE
999
DISTRIBUTOR REAR AXLE
999
COVERING AT CONSOLE, NO.8650I.......I.......I I II .......INO.9985I.......I I II
999
LINE
999
LINE FROM VALVE TO BRAKE HOSE,D 070925
999
BRAKE CABLE FRONT RIGHT
999
LINE FROM MASTER CYLINDER TO PRESSURE RETAINING VALVE
999
BRAKE CABLE FRONT LEFT
999
LINE FROM BRAKE MASTER CYLINDER TO FRONT AXLE BRAKE HOSE,RIGHT,D 070925
999
BRAKE CABLE FRONT RIGHT
999
LINE FROM BRAKE MASTER CYLINDER TO FRONT AXLE BRAKE HOSE,LEFT,D 070925
999
LINE FROM DISTRIBUTOR TO LEFT WHEEL BRAKE CYLINDER
999
BRAKE CABLE FRONT LEFT
999
LINE
999
VALVE (SOLENOID VALVE)
999
LINE FROM DOUBLE FITTING TO PRESSURE REGULATOR, NOT USED
999
LINE FROM AIR COMPRESSOR TO DOUBLE FITTING, NOT USED
999
LINE FROM CHECK VALVE TO CONNECTOR,LEFT
999
LINE SERVICE BRAKE VALVE
999
LINE FROM CHECK VALVE TO CONNECTOR,RIGHT
999
BRAKE LEVER
999
CONNECTOR (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER
999
BRACKET
999
HOSE BRAKE LINE TO CAB SIDE MEMBER,D 065341
999
GROMMET
999
SPRING BRAKE CABLE
999
BRACKET BRAKE LINE TO FIRE WALL
999
COVERING AT CONSOLE, NO.8650I.......I.......I I II .......INO.9985I.......I I II
999
COVERING , NO.8650I.......I.......I I II .......INO.9985I.......I I II
999
PIN BRAKE CABLE TO BRAKE LEVER
999
NUT BRAKE CABLE TO BRAKE LEVER
999
GUIDE PLATE REAR BRAKE CABLE TO BRACKET
999
BRACKET BRAKE HOSE TO SIDE MEMBER
999
BRACKET RELAY VALVE
999
LOOM TIE LINE MOUNTING
999
BRAKE HOSE FROM FITTING TO LEFT COMBINATION CYLINDER,CONNECTION: "11"
999
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER
999
BRAKE HOSE FROM FITTING TO LEFT COMBINATION CYLINDER,CONNECTION: "11"
999
SHELL
999
WASHER , Replaced By: A3609902340
999
MUFFLER 3/2-WAY VALVE,CONNECTION: "3"
999
BRACKET , Replaced By: A3464296040
999
CONNECTOR SOLENOID VALVE,CONNECTION: "2"
999
BRACKET BATTERY CABLE
999
LOOM TIE , Replaced By: A3459977390
999
CONNECTOR THREE-WAY VALVE
999
BRACKET AT CROSS MEMBER
999
GROMMET LINE THRU LEFT SIDE MEMBER
999
CLAMP BRAKE LINE MOUNTING
999
ADAPTER FITTING BETWEEN THE LINES
999
T-FITTING
999
WASHER CONSOLE TO CAB
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
999
BRAKE BOOSTER ASSEMBLY
999
FITTING VACUUM LINE TO VACUUM PUMP
999
SWITCH HAND BRAKE CONTROL
999
GROMMET PLUG SOCKET
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
VALVE
999
VALVE , Replaced By: A1214290134
999
VALVE (CHECK VALVE)
999
TEST CONNECTION
999
ADAPTER FITTING AUXILIARY BRAKE AND SUPPLY,5 116582
999
DISTRIBUTOR BRAKE LINE TO BRAKE MASTER CYLINDER
999
RETAINING SCREW. NUT
999
HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
