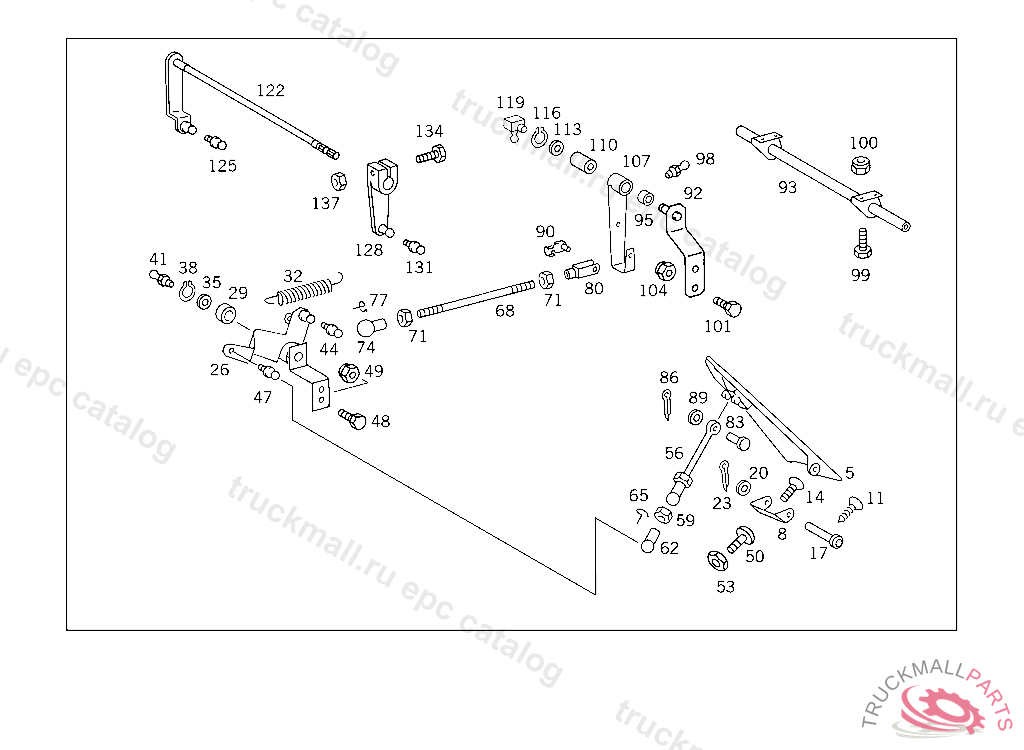

Поз.
Артикул
Описание
5
PEDAL PLATE ACCELERATOR PEDAL
8
ARTICULATION PIECE ACCELERATOR PEDAL
11
SHEET METAL SCREW ACCELERATOR PEDAL TO FLOOR PLATE
14
SCREW ARTICULATION ELEMENT TO FLOOR M8X20,D 209703
17
PIN ACCELERATOR PEDAL TO JOINT
20
WASHER , Replaced By: N000125010532
23
COTTER PIN STRAP TO BRACKET
26
LEVER (DOUBLE LEVER)
26
LEVER , Replaced By: A3823007028
26
BRACKET , Replaced By: A3823007028
26
LEVER , Replaced By: A3823008128
29
BUSHING , USED WITH AIR BRAKE
32
SPRING REVERSING LEVER
35
FITTED WASHER , USED WITH AIR BRAKE
38
LOCK RING PIN TO BEARING BRACKET, 380.017,080,081,180,181 ONLY FOR SHORT CAB MERCEDES-BENZ
41
GREASE NIPPLE PROTECTIVE TUBE
44
BALL PIVOT , Replaced By: A3129910120
47
BALL PIVOT
53
NUT ,B 884219
56
ROD ACCELERATOR CONTROL
59
NUT LEVER TO SHIFTING SHAFT
62
BALL SOCKET ROD TO BALL PIVOT
65
SECURING CLIP. CIRCLIP
68
PULL ROD LEVER TO LEVER
68
PULL ROD FROM ACCELERATOR CONTROL BRACKET TO REVERSING LEVER 6X235X30/30,D 196082
74
BALL SOCKET PULL ROD TO LEVER
74
BALL SOCKET FROM REVERSING LEVER TO CONTROL LEVER
74
BALL SOCKET AT CONTROL LEVER
77
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
80
YOKE FROM REVERSING LEVER TO CONTROL LEVER
83
PIN ROD TO PEDAL PLATE
86
COTTER PIN BATTERY COVER TO 388 540 70 14
89
WASHER GROUND CABLE
90
PIN OPERATING ROD TO BRACKET
92
BRACKET CONTROL,FRONT
92
BRACKET CONTROL,FRONT,D 027930
101
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
101
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
104
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
107
LEVER ACCELERATOR PEDAL CONTROL
110
BUSHING , USED WITH AIR BRAKE
113
FITTED WASHER , USED WITH AIR BRAKE
116
LOCK RING PIN TO BEARING BRACKET, 380.017,080,081,180,181 ONLY FOR SHORT CAB MERCEDES-BENZ
119
GREASE NIPPLE
999
NUT L.H. THREAD
999
STOP PEDAL STOP,C 086581
