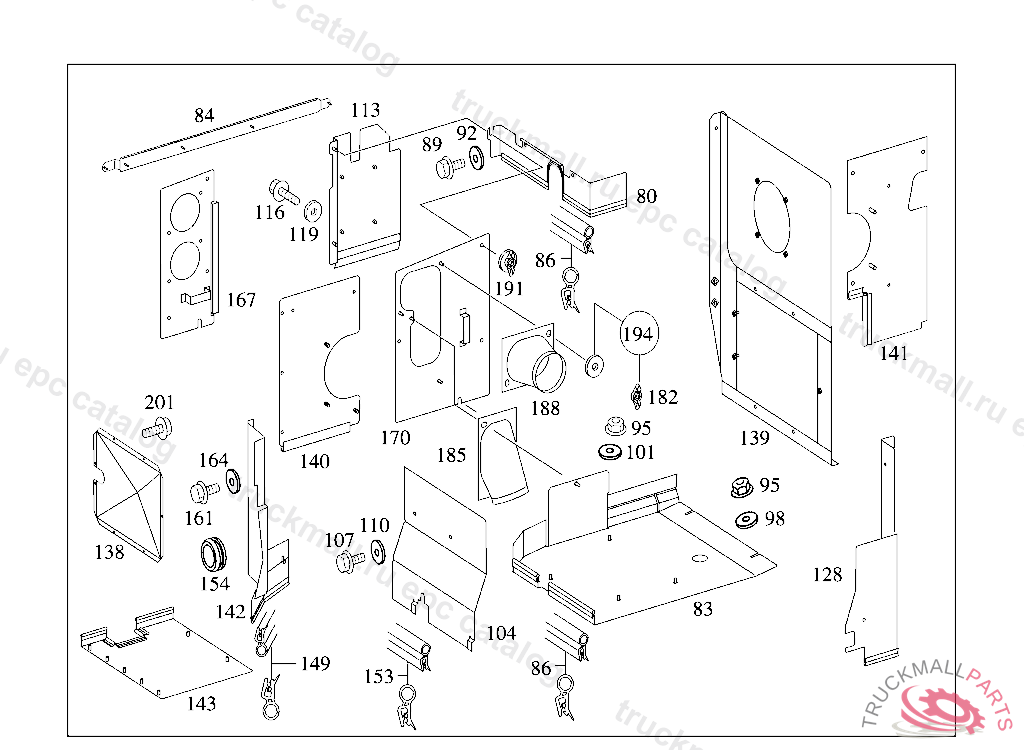

Поз.
Артикул
Описание
80
AIR BAFFLE ON RADIATOR,TOP
83
PANELLING RADIATOR BOTTOM
83
PANELLING , Replaced By: A3825001135
86
RUBBER SEAL , ORDER BY THE METER
86
RUBBER SEAL , ORDER BY THE METER
89
SCREW , Replaced By: N914146006102
92
WASHER , Replaced By: N009021006208
95
NUT , Replaced By: N913023006001
98
WASHER BRACKET TO SIDE MEMBER
101
WASHER BRACKET TO CAB REAR PANEL
104
COVER PLATE , Replaced By: A3825000935
104
PANELLING (HEAT SHIELD)
107
SCREW , Replaced By: N914146006102
110
WASHER BRACKET TO SIDE MEMBER
113
PANELLING (HEAT SHIELD)
113
PANELLING , Replaced By: A3825001035
116
SCREW , Replaced By: N914146006102
119
WASHER BRACKET TO SIDE MEMBER
128
PANELLING (HEAT SHIELD),D 372681
128
PANELLING (HEAT SHIELD),D 372682
161
SCREW , Replaced By: N914146006102
164
WASHER BRACKET TO SIDE MEMBER
167
PANELLING (HEAT SHIELD)
182
NUT HEAT SHIELD TO HEAT SHIELD
185
RADIATOR COVERING AT HEAT SHIELD
188
RADIATOR COVERING AT HEAT SHIELD
191
LOCKING MECHANISM
194
LOCKING MECHANISM
