Поз.
Артикул
Описание

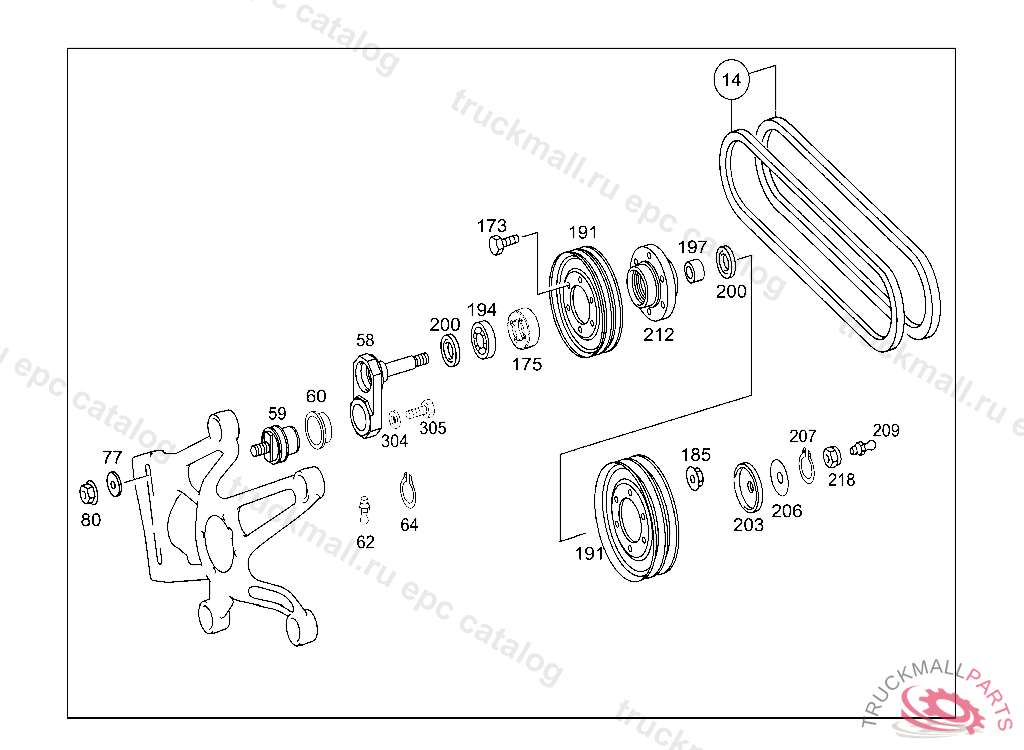

14
V-BELT BETWEEN PULLEY AND FAN 1665 MM
58
DRIVE SHAFT
58
SHAFT , Replaced By: A3742000038
59
PIVOT PIN , Replaced By: A3742060020
59
BEARING JOURNAL
60
BUSHING
60
BUSHING ,D 403853
60
BUSHING , Replaced By: A3742050015
62
GREASE NIPPLE
64
LOCK RING P.T.O.
80
NUT CONSOLE TO SUPPORT
173
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
175
SPACER RING
185
NUT ENGINE MOUNTING M8
191
PULLEY BELT TIGHTENER PULLEY
194
BALL BEARING BELT TIGHTENER PULLEY
194
BALL BEARING BELT TIGHTENER PULLEY
197
SPACER TUBE BELT TIGHTENER PULLEY
200
SEAL RING BELT TIGHTENER PULLEY
203
EXPANSION PLUG BELT TIGHTENER PULLEY
206
LOCK BELT TIGHTENER PULLEY
207
LOCK RING P.T.O.
209
GREASE NIPPLE INTERMEDIATE LEVER
212
HUB BELT TIGHTENER PULLEY
304
PLANE PARALLEL WASHERTO A374 200 0038 - 52 X 9 X 2 MM
305
SCREW STOP TO BATTERY CASE
