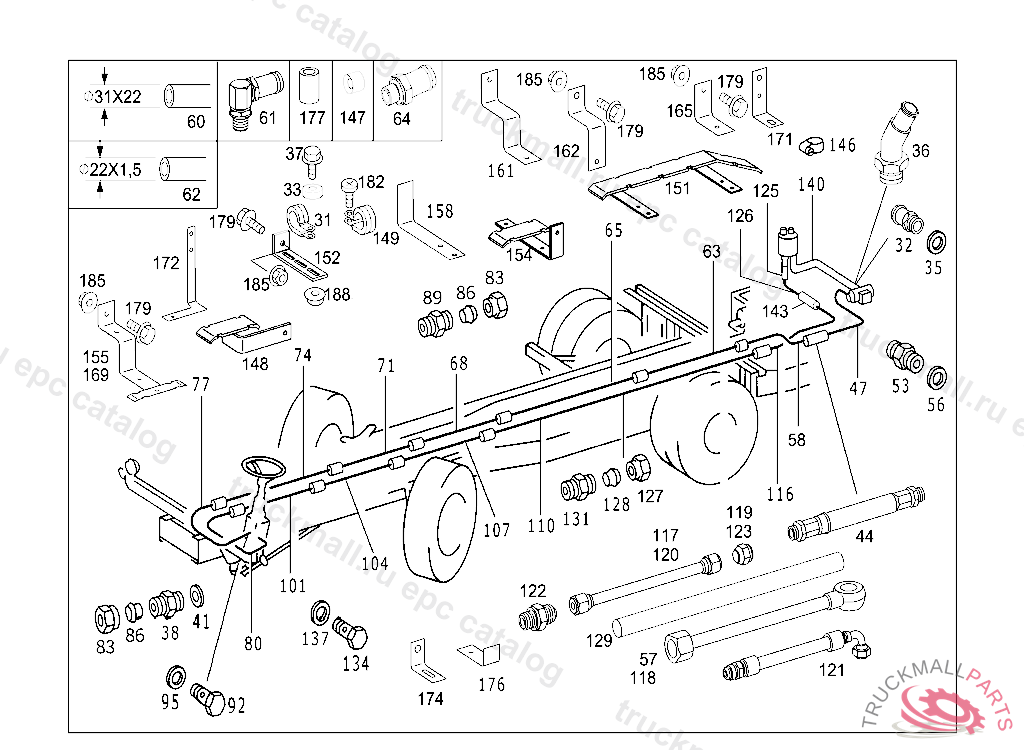

Поз.
Артикул
Описание
36
ELBOW FITTING
60
HOSE FROM PIPE LINE TO PIPE LINE,D 291813 TO BE ADAPTED DURING ASSEMBLY
60
HOSE ASSEMBLY FROM OIL TANK TO HYDRAULIC PUMP 31 X 22 X 1100 MM
61
61
SEAL CONE LOW PRESSURE LINE TO STEERING
61
FITTING LINE TO OIL PUMP
125
HOSE LOW-PRESSURE OIL LINE TO OIL TANK,D 366548
125
HOSE LOW-PRESSURE OIL LINE TO OIL TANK,D 366549
140
HOSE FROM OIL TANK TO HYDRAULIC PUMP,D 304526
146
CLAMP HOSE TO FITTING AND TO OIL TANK
146
CLAMP , Replaced By: N000000000667
149
CLAMP DE-AERATION LINE
149
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
149
CLAMP
149
CLAMP FUEL LINE TO FRAME 32/25
149
CLAMP OIL DIPSTICK TO RADIATOR
149
CLAMP LINES TO BRACKET
155
BRACKET AT SIDE MEMBER
158
BRACKET MOUNTING OF CABLE HARNESS ON FRAME
165
BRACKET FUEL LINE TO SIDE MEMBER
169
BRACKET MOUNTING OF CABLE HARNESS ON FRAME
179
SCREW SUPPORTING RAIL TO SUPPORT
179
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
179
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
179
SCREW. HEXALOBULAR BOLT BRACKET TO RIGHT FRONT FENDER M8X30
182
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
185
NUT ENGINE MOUNTING M8
185
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
188
NUT BRACKET TO FIRE WALL
