Поз.
Артикул
Описание

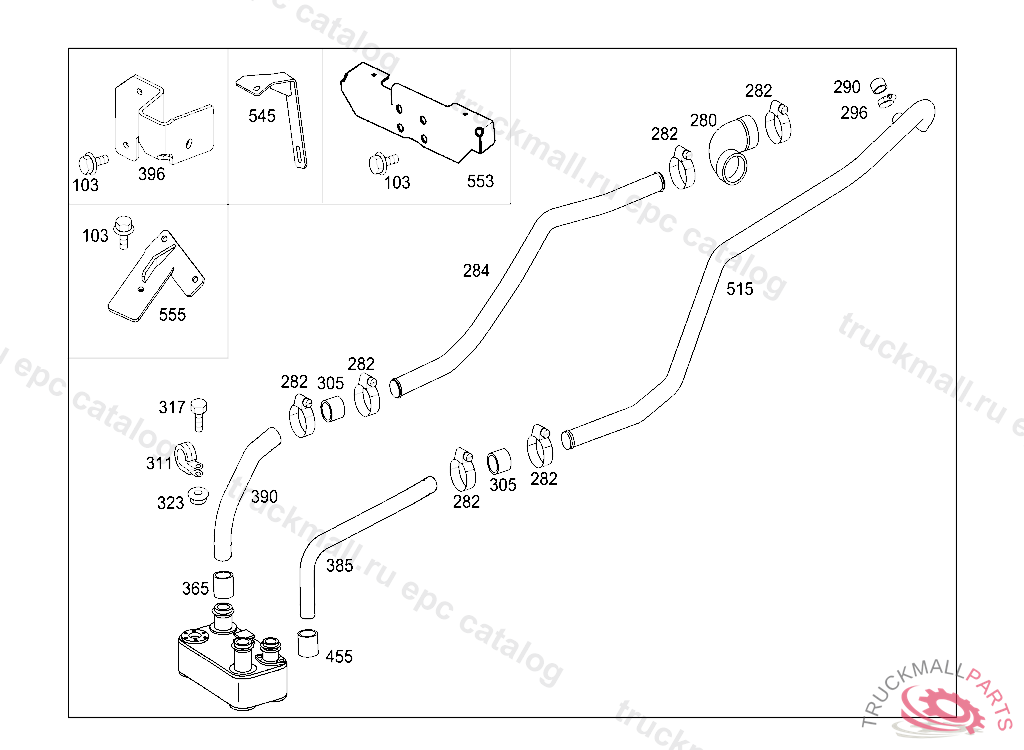

103
SCREW , Replaced By: N910143008000
103
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
280
HOSE LINES TO ENGINE
280
282
CLAMP HOSE FASTENING 50-70X13 MM
284
284
284
COOLANT LINE FROM ENGINE TO TRANSMISSION OIL COOLER
284
COOLANT LINE FROM ENGINE TO TRANSMISSION OIL COOLER
284
290
LOCKING CAP SHUT-OFF VALVE
296
CLAMP
296
CLAMP
305
HOSE LINE TO RETARDER
305
HOSE RETURN, FROM RETARDER TO ENGINE
305
MOLDED HOSE
305
HOSE RETURN, FROM RETARDER TO ENGINE
311
CLAMP
317
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
323
NUT HORN TO BRACKET M8
365
HOSE RETURN, FROM RETARDER TO ENGINE
365
HOSE LINE TO RETARDER
385
COOLANT LINE FROM TRANSMISSION TO ENGINE
385
COOLANT LINE FROM TRANSMISSION TO ENGINE
390
COOLANT LINE FROM ENGINE TO TRANSMISSION OIL COOLER
390
COOLANT LINE FROM ENGINE TO TRANSMISSION OIL COOLER
396
BRACKET COOLING WATER PIPE
455
HOSE LINE TO RETARDER
455
HOSE RETURN, FROM RETARDER TO ENGINE
515
COOLANT LINE FROM TRANSMISSION TO ENGINE
515
COOLANT LINE FROM TRANSMISSION TO ENGINE
515
515
515
545
BRACKET COOLING WATER PIPE TO TRANSMISSION
553
BRACKET COOLING WATER PIPE TO TRANSMISSION
555
BRACKET COOLING WATER PIPE TO TRANSMISSION
