OH 3736 MDA/RFA 8X2
›
382.157
›
32 SPRINGS AND SUSPENSION
›
545 PNEUMATIC SUSPENSION & STABILIZATION ON FRONT AXLE IL. 1
Mercedes A6343300107 -

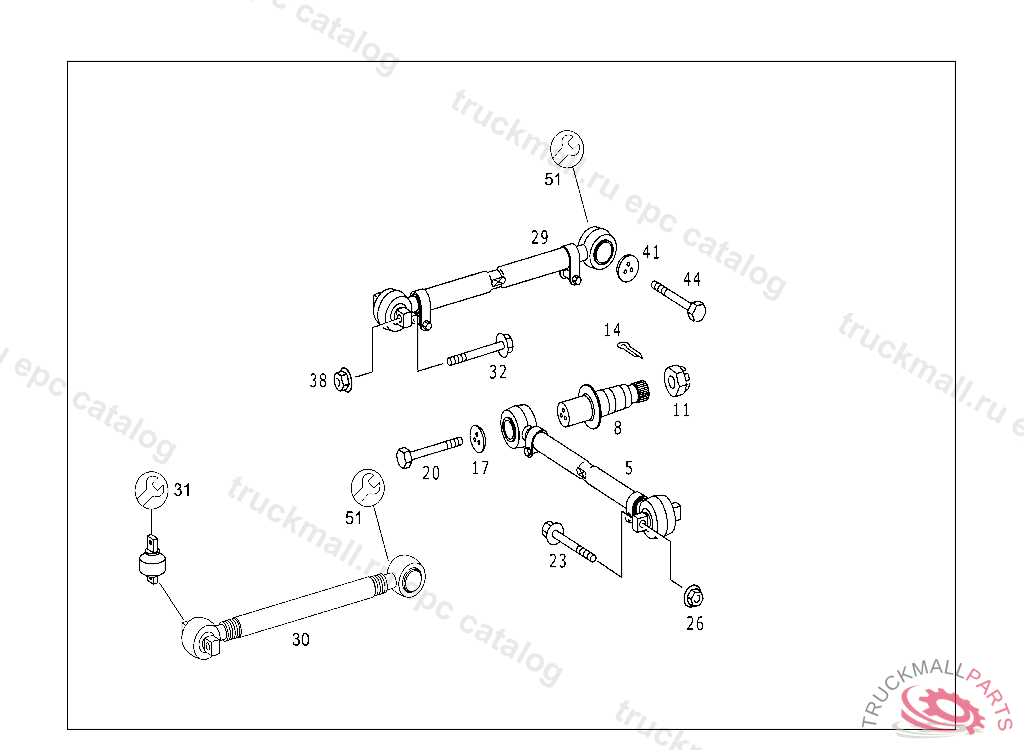

OH 3736 MDA/RFA 8X2 382.157
32 SPRINGS AND SUSPENSION - 545 PNEUMATIC SUSPENSION & STABILIZATION ON FRONT AXLE IL. 1
Поз.
Артикул
Описание
5
A6343300107
TRANSVERSE CONTROL ARM
5
A6343307007
TRANSVERSE CONTROL ARM
8
A3643337030
PIN CONTROL ARM TO FRONT AXLE,C 073141
11
N000937040001
NUT LEVER TO TORSION BAR
14
N000094006320
COTTER PIN PISTON ROD TO LIFTING ARM
17
A3643337162
THRUST WASHER PIN TO STRUT,C 073141
20
N000000005517
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X50
23
N910105016009
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M16 X 1.5 X 100
26
N000000005738
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
29
A6343300311
THRUST ARM
29
A6343300211
THRUST ARM
30
A6343300711
RADIUS ROD
31
A0003302911
RS RADIUS ROD BALL PIVOTTO A6343300711 ZF LEMFORDER
32
N910105016036
HEXAGON HEAD BOLT. SCREW PLATE TO SIDE MEMBER M 16X1.5X140
38
N000000005738
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
41
A3643337162
THRUST WASHER PIN TO STRUT,C 073141
44
N000000005517
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X50
51
A6343300207
RS CONTROL ARM TO A6343300107/ 0211/0411 LEMFORDER
