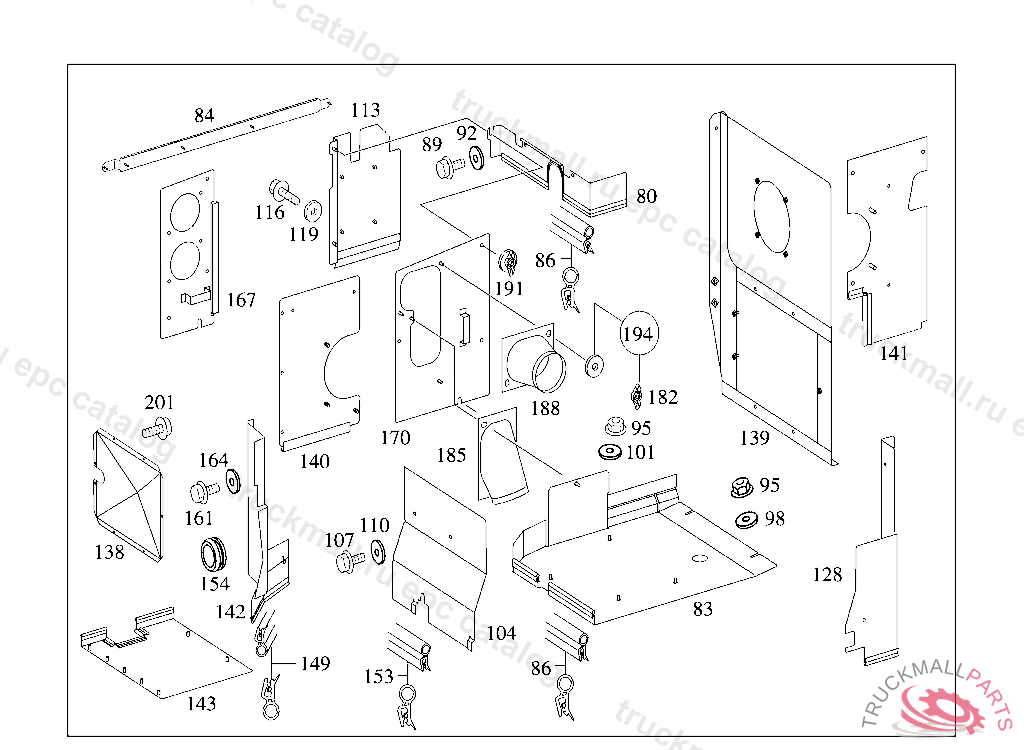

Поз.
Артикул
Описание
80
AIR BAFFLE ON RADIATOR,TOP
83
PANELLING RADIATOR BOTTOM
84
86
RUBBER SEAL , ORDER BY THE METER
86
RUBBER SEAL , ORDER BY THE METER
89
SCREW , Replaced By: N914146006102
92
WASHER , Replaced By: N009021006208
95
NUT , Replaced By: N913023006001
98
WASHER BRACKET TO SIDE MEMBER
101
WASHER BRACKET TO CAB REAR PANEL
104
PANELLING (HEAT SHIELD)
107
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
107
SCREW , Replaced By: N914146006102
107
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
110
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
110
WASHER BRACKET TO SIDE MEMBER
113
PANELLING (HEAT SHIELD)
116
SCREW , Replaced By: N914146006102
119
WASHER BRACKET TO SIDE MEMBER
138
138
139
139
140
141
142
PANELLING (HEAT SHIELD)
143
149
RUBBER SEAL , ORDER BY THE METER
153
RUBBER SEAL , ORDER BY THE METER
154
GROMMET ,D 314239
161
SCREW , Replaced By: N914146006102
164
WASHER BRACKET TO SIDE MEMBER
170
182
NUT HEAT SHIELD TO HEAT SHIELD
185
RADIATOR COVERING AT HEAT SHIELD
188
RADIATOR COVERING AT HEAT SHIELD
188
RADIATOR COVERING AT HEAT SHIELD
191
LOCKING MECHANISM
194
LOCKING MECHANISM
201
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
