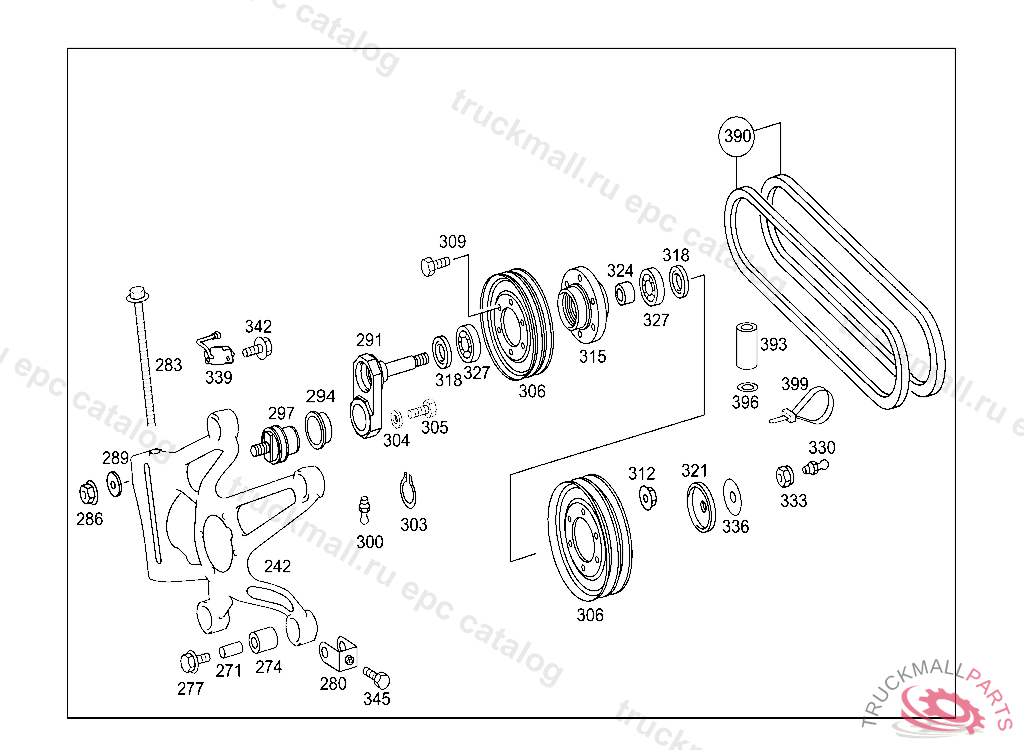

Поз.
Артикул
Описание
242
271
SLEEVE
274
MOUNTING
277
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
280
CLAMP
283
SCREWM12X1.5X275 MM
286
NUT CONSOLE TO SUPPORT
289
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
291
DRIVE SHAFT
291
DRIVE SHAFT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3741500412
291
SHAFT , Replaced By: A3742000038
294
BUSHING , Replaced By: A3742050015
294
BUSHING
297
BEARING JOURNAL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3742340021
297
BEARING JOURNAL
297
PIVOT PIN , Replaced By: A3742060020
300
GREASE NIPPLE
303
LOCK RING P.T.O.
304
PLANE PARALLEL WASHERTO A374 200 0038 - 52 X 9 X 2 MM
305
SCREW STOP TO BATTERY CASE
306
PULLEY BELT TIGHTENER PULLEY
309
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
312
NUT HORN TO BRACKET M8
315
HUB BELT TIGHTENER PULLEY
318
SEAL RING BELT TIGHTENER PULLEY
321
EXPANSION PLUG BELT TIGHTENER PULLEY
324
SPACER TUBE BELT TIGHTENER PULLEY
327
BALL BEARING BELT TIGHTENER PULLEY
327
BALL BEARING BELT TIGHTENER PULLEY
330
GREASE NIPPLE INTERMEDIATE LEVER
333
NUT CONSOLE TO SUPPORT
336
LOCK BELT TIGHTENER PULLEY
339
SENDER UNIT ELECTRIC BELT MONITORING INDICATOR,C 082498
342
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
345
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
390
393
BUSHING AIR CONDITIONER
396
WASHER , Replaced By: A3829907140
399
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
