Поз.
Артикул
Описание

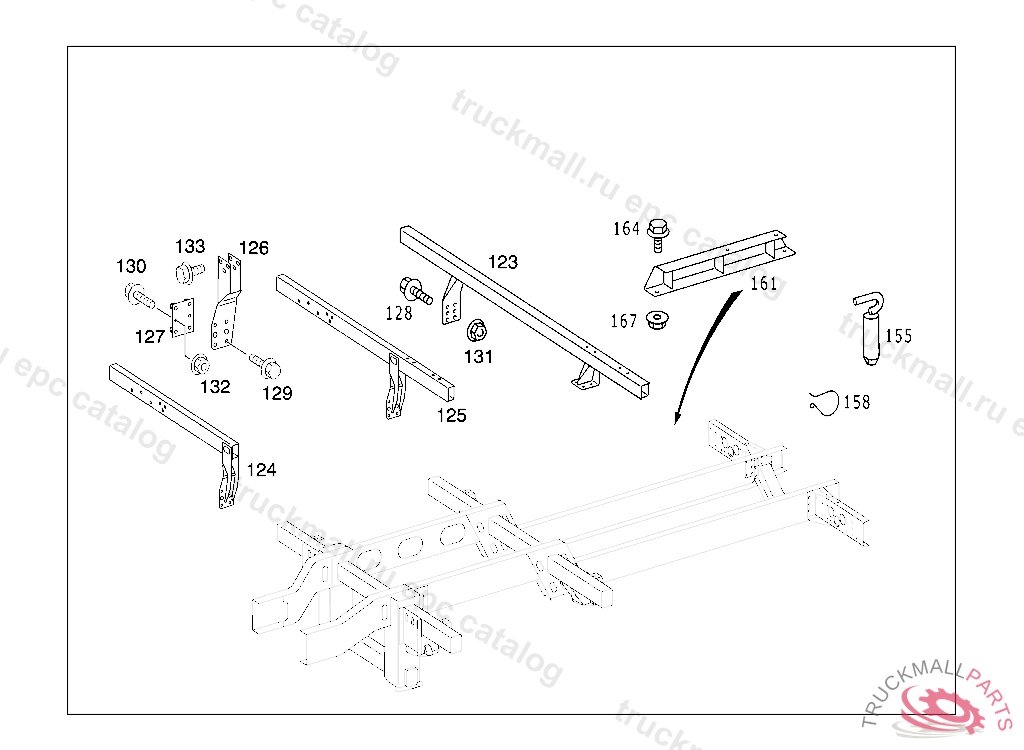

123
CROSS MEMBER TRANSMISSION MOUNTING
124
CROSS MEMBER TRANSMISSION MOUNTING
125
CROSS MEMBER TRANSMISSION MOUNTING
126
BRACKET RIGHT
127
STIFFENING TRANSMISSION CROSS MEMBER TO FRAME SIDE MEMBERS
129
HEXAGON HEAD BOLT AT FRAME, REAR M16X1.5X40
130
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
131
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
131
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
132
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
133
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
133
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X50
133
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
155
COUPLING PIN
158
LOCK
161
BRACKET AT EXHAUST PIPE
164
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
167
NUT BRACKET TO SIDE MEMBER M12X1.5
