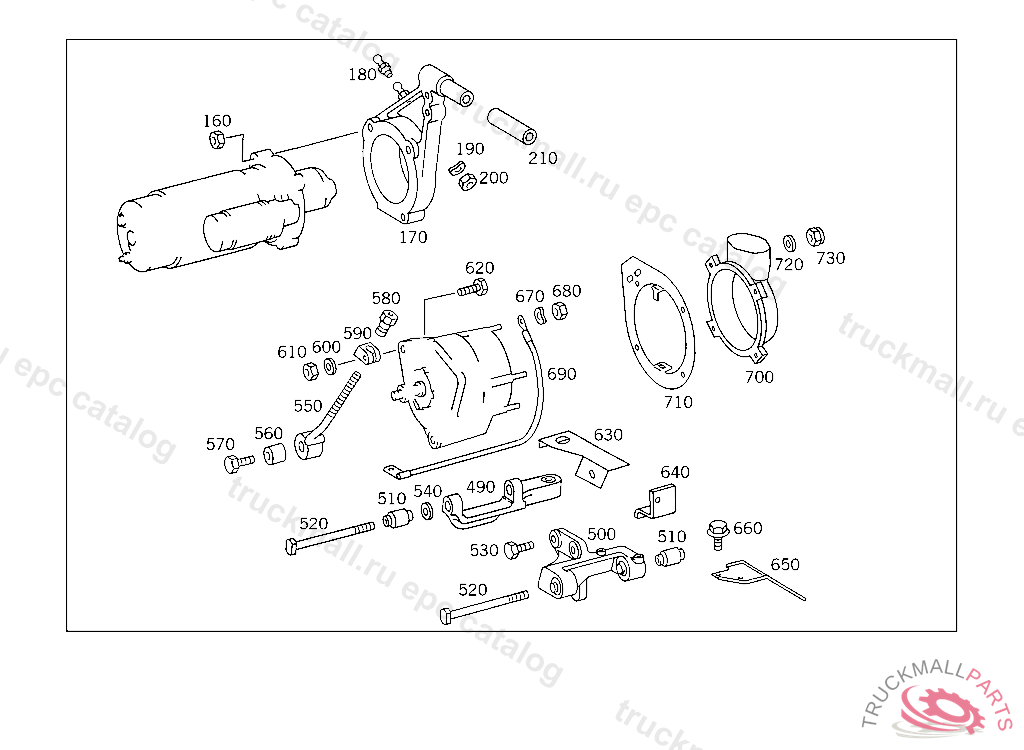

Поз.
Артикул
Описание
160
NUT
170
FLANGE , Replaced By: A3521501444
180
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
190
SPRING WASHER , Replaced By: N000137008212
200
HEXAGON NUT. NUT , Replaced By: N913023008002
210
BEARING
490
BRACKET
510
BUSHINGTO 355 150 03 72,366 150 13 72
510
BUSHINGTO 366 150 06 73
520
SCREW , Replaced By: A0049906504
520
SCREW SUPPORT TO ALTERNATOR TO 366 150 06 73
540
WASHER RADIATOR TO RUBBER MOUNTING
540
WASHER , Replaced By: N000125010532
550
CLAMPING BOLT , Replaced By: A3551500372
550
CLAMPING BOLT (CLAMPING BOLT)
560
BUSHINGTO 355 150 03 72,366 150 13 72
570
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
580
NUT TIGHTENER PULLEY TO LEVER
590
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
600
WASHER PROPELLER SHAFT TO BRACKET
610
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
620
SCREW CLAMPING BOLT TO ALTERNATOR M 12X1.5X60
620
SCREW CLAMP TO 693 460 70 05,71 05
630
BRACKET CABLE HARNESS MOUNTING
670
SPRING WASHER ALTERNATOR BRANCH-OFF TO ALTERNATOR
680
NUT , Replaced By: N304032005005
690
ELECTRIC CABLE GROUND CABLE TO GENERATOR
