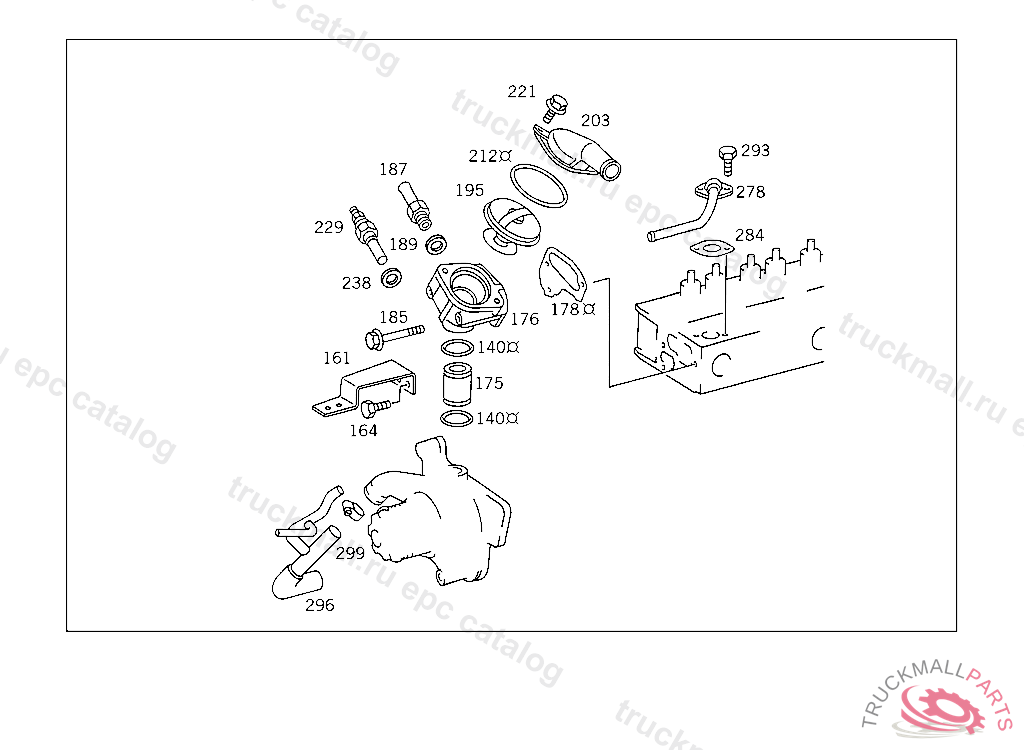

Поз.
Артикул
Описание
140
SEAL RING
161
BRACKET HYDRAULIC LINE, UP TO ENGINE 036635,FROM ENGINE,SEE STANDARD MICROFICHE
164
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
164
SCREWM 10X20
175
PIPE THERMOSTAT HOUSING TO WATER PUMP
176
HOUSING THERMOSTAT
176
HOUSING THERMOSTAT
178
GASKET THERMOSTAT HOUSING TO CYLINDER HEAD
185
SCREW THERMOSTAT HOUSING TO CYLINDER HEAD M 8X95
185
SCREW CABLE HARNESS MOUNTING
187
CONNECTOR PIPE SOCKET TO THERMOSTAT HOUSING
189
SEAL RING DELIVERY LINE
195
THERMOSTAT ELEMENT
195
THERMOSTAT ELEMENT , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 430461YEAR OF MANUFACTURE 1996, Replaced By: A0052032675
195
THERMOSTAT ELEMENT
195
THERMOSTAT ELEMENT
203
COVER THERMOSTAT HOUSING
212
SEAL RING AT WATER PUMP
212
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0209971148
212
SEAL RING , Replaced By: A0249972848
221
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
229
SENDER UNIT COOLING WATER TEMPERATURE
238
SEAL RING
278
PIPE SOCKET HOT WATER HEATING CONNECTION
284
GASKET PIPE SOCKET TO CYLINDER HEAD, UP TO IDENT NO.5 448662, FROM IDENT NO. 5 448663 SEE UNIT MICROFICHE
293
SCREW PIPE CLAMP
