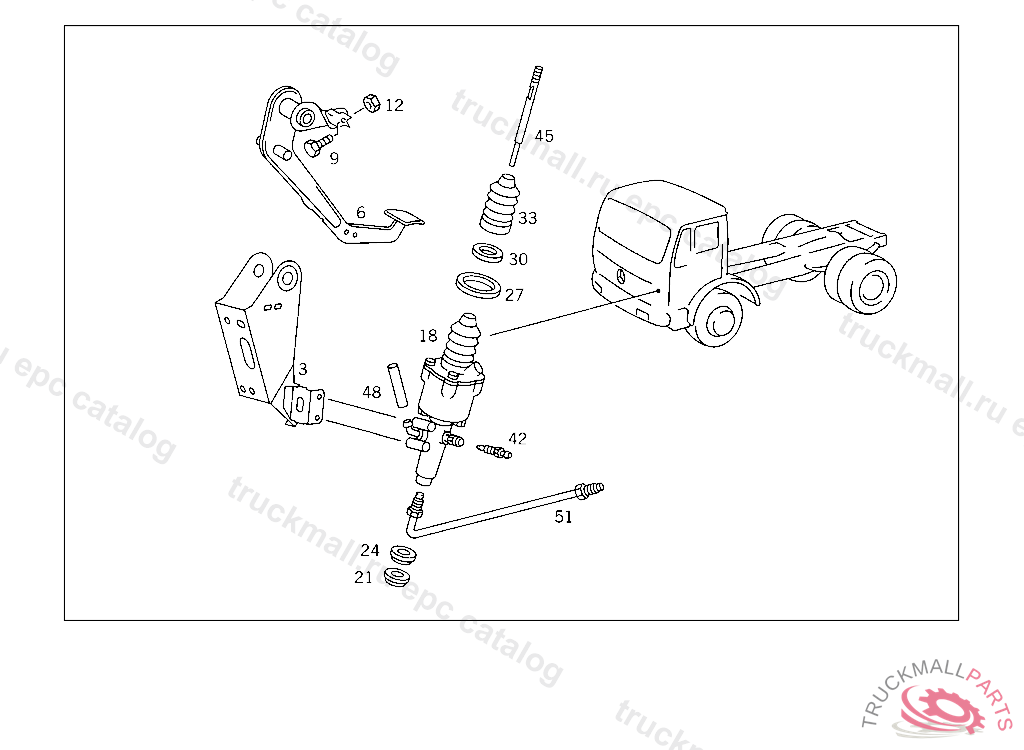

Поз.
Артикул
Описание
3
BEARING BRACKET PEDAL BEARING, TO BE ADAPTED DURING ASSEMBLY
3
BEARING BRACKET PEDAL BEARING, TO BE ADAPTED DURING ASSEMBLY
3
BEARING BRACKET CLUTCH PEDAL
6
PEDAL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 910000, Replaced By: A6202901216
6
PEDAL CLUTCH,5 238024
9
SCREW CLUTCH PEDAL
12
NUT SWITCH TO FLOOR PLATE
18
MASTER CYLINDER CLUTCH
21
SEAL RING
24
SEAL RING
27
SEAL RING
30
SEAL RING
33
BOOT
42
VALVE , Replaced By: A3075530107
42
VALVE CLUTCH SLAVE CYLINDER
42
BLEEDER VALVE , Replaced By: A0004310265
45
ROD MASTER CYLINDER TO PEDAL ASSEMBLY
48
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
48
HOSE , Replaced By: A0009978952
51
LINE , Replaced By: A3812903214
51
LINE , Replaced By: A3812901714
51
LINE FROM VALVE TO CONNECTION FITTING,K 172343
51
LINE FROM ENGINE-MOUNTING BRACKET TO CLUTCH BOOSTER 550 MM, TO BE ADAPTED DURING ASSEMBLY
51
LINE , Replaced By: A3812901614
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
SCREW BRACKET ON LOAD SENSOR
999
SCREW CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET,5 238025
999
BRACKET 3/2-WAY VALVE
999
PEDAL CLUTCH
999
PEDAL CLUTCH,5 238025
999
PEDAL CLUTCH
999
PEDAL CLUTCH,5 238025
999
PEDAL , 415 5 014669 416 5 000516 417 4 972024, Replaced By: A6202900216
999
GROMMETD6/32
