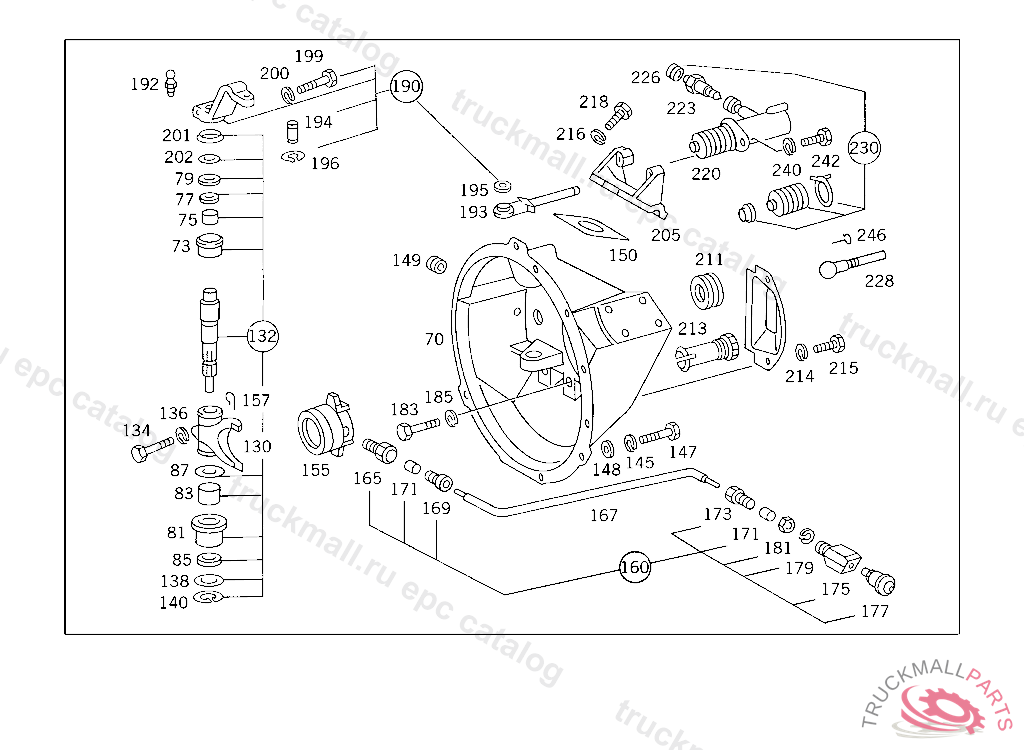

Поз.
Артикул
Описание
70
HOUSING BELL HOUSING WITH BUSHINGS
70
HOUSING BELL HOUSING WITH BUSHINGS
70
HOUSING , THE OLD ENGINE SUPPORTS CAB STILL BE USED WHEN REBORTED FROM 17 MM TO 19 MM4 743985, Replaced By: A3972500305, +001A6202420601, +001A6202420701, +004N000960018027, +004N000960018107
70
HOUSING , THE OLD ENGINE SUPPORTS CAB STILL BE USED WHEN REBORTED FROM 17 MM TO 19 MM4 753305, Replaced By: A3972500405, +002A3852420905, +008N000961018019
70
HOUSING ,4 7439865 285575, Replaced By: A6202501205, +001A6202500155
70
HOUSING ,5 285575, Replaced By: A6202501105, +001A6202500155
73
BUSHING ,4 401411, Replaced By: A3852510450, +001A0119978846
73
BUSHING ,5 285575, Replaced By: A6202510050, +001A6202500155, +001A0099971547
73
BUSHING RELEASE SHAFT,TOP
75
BUSHING RELEASE SHAFT,TOP 35X39 MM
77
SEAL RING RELEASE SHAFT,BOTTOM 40X52X11 MM
77
SEAL RING RELEASE SHAFT,TOP
77
SEAL RING RELEASE SHAFT,TOP 40X52X7 MM
79
COVER PLATE RELEASE SHAFT,TOP
81
BUSHING RELEASE SHAFT,BOTTOM
83
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
85
SEAL RING BOTTOM
87
WASHER AS REQUIRED 1.20 MM
87
WASHER AS REQUIRED 1.10 MM
87
WASHER AS REQUIRED 1.00 MM
87
WASHER AS REQUIRED 0.90 MM
87
WASHER AS REQUIRED 1.3 MM
87
WASHER AS REQUIRED 0.80 MM
130
RELEASE LEVER CLUTCH ACTUATION
130
RELEASE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A6202540108
132
SHAFT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IM REPAIR KIT, Replaced By: A3895860025
132
SHAFT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 285575, Replaced By: A3852500014
132
REPAIR KIT , Replaced By: A3892500014
132
SHAFT (PARTS KIT),RELEASE SHAFT
134
SCREW , Replaced By: N304017012018
134
SCREW , Replaced By: N000933012102
136
LOCK WASHER FITTING TO BRACKET
138
SPACER WASHER RELEASE SHAFT,BOTTOM
140
LOCK RING RELEASE SHAFT,BOTTOM
145
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
147
SCREW RADIATOR M 10X45
148
WASHER RADIATOR TO RUBBER MOUNTING
148
WASHER , Replaced By: N000125010532
149
PLUG BELL HOUSING
149
PLUG BELL HOUSING
150
COVER BELL HOUSING,4 743985
155
RELEASE BEARING CLUTCH ACTUATION
155
RELEASE BEARING CLUTCH ACTUATION
155
RELEASE BEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A0002507415
155
RELEASE BEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A0002507415
157
SPRING RELEASE BEARING TO RELEASE LEVER
160
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
165
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
167
HOSE RELEASE COLLAR LUBRICATION 220 MM
169
UNION SCREW RELEASE COLLAR LUBRICATION
171
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
173
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
175
GREASE NIPPLE RELEASE COLLAR LUBRICATION
175
INTERMEDIATE PIECE ,5 190179, Replaced By: A6209970088, +001A6209880135
177
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
177
CAP RELEASE BEARING LUBRICATION
179
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
181
NUT JOINT TO BRACKET
181
NUT , Replaced By: N308675014001
183
SCREW , Replaced By: N308676018010
185
LOCK WASHER BELL HOUSING TO TRANSMISSION
190
LEVER (PARTS KIT),CLUTCH ACTUATION
190
LEVER ,4 601609, Replaced By: A6202900534, +001A0009966440
192
BALL PIVOT CLUTCH ACTUATION,4 601609
193
ROD END CLUTCH ACTUATION
194
PIN CLUTCH ACTUATION
195
SEAL RING CLUTCH ACTUATION
195
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019972141
196
LOCK RINGTO 000 553 37 01,000 553 39 01,
199
SCREW , Replaced By: N304017010053
200
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
201
WASHER LEVER TO RELEASE SHAFT,5 285575
201
COVER RELEASE SHAFT,TOP
201
WASHER , Replaced By: A6202540176
202
SEAL RING LEVER TO RELEASE SHAFT,5 285575
205
BRACKET CLUTCH ACTUATION
205
BRACKET , Replaced By: A3072950840
211
COVER PLATE , Replaced By: A3852510210
211
COVER PLATE , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3972510083, +002A0002510183
211
PLUG BELL HOUSING
213
PLUG BELL HOUSING
214
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
215
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
215
SCREW , Replaced By: N304017008016
216
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
218
SCREW BRACKET TO SIDE MEMBER
218
SCREW , Replaced By: N304017010002
220
SLAVE CYLINDER ,4 601609, Replaced By: A0012950307, +001A6202900534, +001A0009966440
220
SLAVE CYLINDER , Replaced By: A0012955307
220
SLAVE CYLINDER CLUTCH ACTUATION
220
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 669429, Replaced By: A0022950407
220
SLAVE CYLINDER CLUTCH ACTUATION
223
VALVE CLUTCH SLAVE CYLINDER
223
VALVE , Replaced By: A3075530107
226
PROTECTIVE CAP , Replaced By: A0004210887
226
PROTECTIVE CAP ,5 962906
226
PROTECTIVE CAP , Replaced By: A0004210887
226
PROTECTIVE CAP , Replaced By: A0004217187
228
PIN CLUTCH SLAVE CYLINDER
230
REPAIR KIT CLUTCH SLAVE CYLINDER
230
REPAIR KIT , Replaced By: A0002900911
240
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
242
SCREW BRACKET TO SIDE MEMBER
242
SCREW , Replaced By: N304017010002
246
SECURING CLIP , Replaced By: N073130019300
246
SNAP RING CLUTCH SLAVE CYLINDER
246
SNAP RING LEVER TO RELEASE SHAFT,4 601609
999
CLAMP , Replaced By: A0002523227
999
HOUSING
999
CLAMP RELEASE FLANGE TO RELEASE LEVER
999
PRESSURE PLATE
999
LOCK
999
BOOT , Replaced By: A0005863129
999
LEVER CLUTCH ACTUATION,4 601610
999
BRACKET , Replaced By: A3072950840
