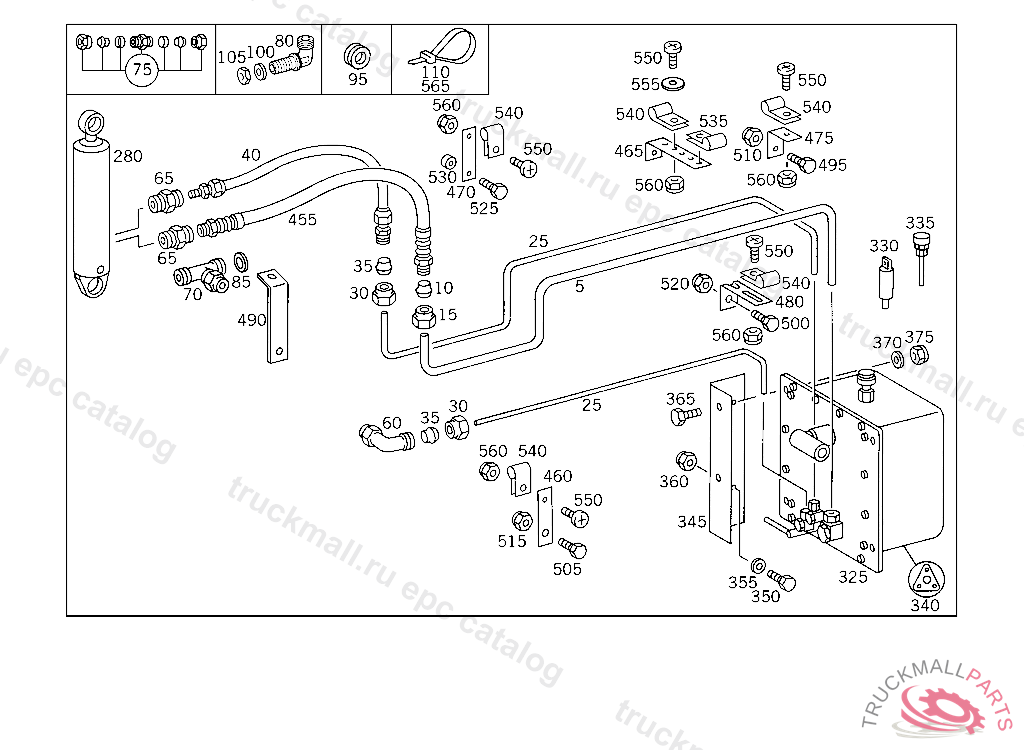

Поз.
Артикул
Описание
5
TUBE FROM HIGH PRESSURE HOSE TO STEERING
10
SEAL CONE LINE CONNECTION
10
GLAND , Replaced By: A0019901967
15
UNION NUT LINE CONNECTION
15
UNION NUT LINE CONNECTION, Replaced By: N000000006239
25
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
30
UNION NUT
35
SEAL CONE
35
GLAND , Replaced By: A0019901667
40
HOSE FROM HYDRAULIC LINE TO CYLINDER
40
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
40
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER,K 301549
40
HOSE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9305530682
60
TS DOUBLE FITTING SOLENOID VALVE
60
FITTING , Replaced By: A0029906071
60
DOUBLE FITTING , Replaced By: A0019972872
65
FITTING 3/2-WAY VALVE,CONNECTION: "30"
65
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
65
CONNECTION FITTING , Replaced By: A0039979172
70
T-FITTING. FITTING AT INJECTION PUMP
75
FITTING (PARTS KIT),LINE RUPTURE
75
CONNECTION FITTING , Replaced By: A0049971772
80
ELBOW FITTING COMPRESSED AIR LINE THRU FRAME, Replaced By: N000000006195
80
FITTING COMPRESSED AIR LINE THRU FRAME
85
SEAL RING LINE CONNECTION
95
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
95
GROMMET FRAME MOUNTED CABLE HARNESS, THIS CABLE HARNESS IS A COMPONENT OF FRAME MOUNTED CABLE HARNESS ASSEMBLY AND CAN BE MADE AVAILABLE AS A SPARE ATTENTION: WHEN PLACING ORDERS, PLEASE QUOTE VEHICLE IDENT NO. ONLY IF FRAME MOUNTED CABLE HARNESS IS REQUIRED AS AN ASSEMBLY
100
WASHER COVERING TO BEARING BRACKET
105
NUT SHIFTING ROD UNLOCKING HIGH-PRESSURE HOSE
110
LOOM TIE LINE MOUNTING
280
CYLINDER HYDRAULIC CYLINDER,K 301548
280
CYLINDER HYDRAULIC CYLINDER,K 301549
325
PUMP , Replaced By: A0015532401
325
PUMP HAND PUMP
330
PISTON
335
FILTER
340
GASKET KIT HAND PUMP
345
BRACKET HAND PUMP
345
BRACKET HAND PUMP
350
SCREW , Replaced By: N308676012015
350
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
350
SCREW CONSOLE TO SIDE MEMBER
350
SCREW , Replaced By: N308676014020
350
SCREW LEFT AND RIGHT CONSOLES TO CAB
350
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
355
WASHER , Replaced By: N007349013005
355
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
360
NUT SUPPORT TO SIDE MEMBER
360
NUT BRACKET TO SIDE MEMBER
360
NUT , Replaced By: N910113014001
365
SCREW , Replaced By: N304017010002
365
SCREW BRACKET TO SIDE MEMBER
370
WASHER , Replaced By: N000125010532
370
WASHER RADIATOR TO RUBBER MOUNTING
375
NUT STRAP TO BRACKET
375
NUT , Replaced By: N910113010000
455
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
455
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
455
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
455
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
455
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
455
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
460
BRACKET , Replaced By: A3124761535
460
BRACKET , Replaced By: A3124292440
460
BRACKET HEATING WATER LINE
465
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
465
BRACKET , Replaced By: A3604292940
470
BRACKET OIL DELIVERY LINES
475
BRACKET HEATING WATER LINE
475
BRACKET FEED AND RETURN LINES TO RETARDER 110 MM LANG, TO BE ADAPTED DURING ASSEMBLY
475
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
475
BRACKET , Replaced By: A3604292940
475
ANGLE LINE MOUNTING
475
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
475
BRACKET OIL LINE MOUNTING
480
BRACKET OIL LINE MOUNTING
480
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
480
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
480
BRACKET BATTERY CABLE MOUNTING,5 193595
480
BRACKET , Replaced By: A3872950240
480
BRACKET OIL LINES TO FRAME SIDE MEMBERS
490
BRACKET HIGH PRESSURE HOSE
495
SCREW , Replaced By: N308676012012
495
SCREW , Replaced By: N308676012026
495
SCREW , Replaced By: N308676014020
495
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
495
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
495
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
495
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
500
SCREW , Replaced By: N304017008027
500
SCREW , Replaced By: N304017008034
500
SCREW , Replaced By: N304017010043
500
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
500
SCREW BRACKET TO CONSOLE
505
SCREW END PIECE TO EXHAUST PIPE M 10X25
505
SCREW , Replaced By: N304017010002
505
SCREW BRACKET TO SIDE MEMBER
510
NUT STRAP TO BRACKET
510
NUT SUPPORT TO SIDE MEMBER
510
NUT BRACKET TO SIDE MEMBER
510
NUT , Replaced By: N910113010000
510
NUT , Replaced By: N910113014001
515
NUT STRAP TO BRACKET
515
NUT , Replaced By: N910113010000
520
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
520
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
520
NUT , Replaced By: N913004008001
525
SCREW , Replaced By: N304014008007
525
SCREW FRONT AXLE REGULATING SOLENOID VALVE
530
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
535
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
535
CLAMP SENSOR CABLE TO BRACKET
540
CLAMP LINE MOUNTING
550
SCREW CLAMP MOUNTING M 6X16
550
SCREW COVER PLATE TO BRACKET
550
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
550
SCREW , Replaced By: N000000001146
550
SCREW CLAMP TO BRACKET
555
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
555
WASHER COMPRESSED AIR LINE TO BRACKET
555
WASHER , Replaced By: N009021006208
555
WASHER COMPRESSED AIR LINE TO BRACKET
560
NUT PUMP TO BRACKET
560
NUT , Replaced By: N913004006001
565
LOOM TIE LINE MOUNTING 280 MM
565
LOOM TIE LINE MOUNTING
565
LOOM TIE , Replaced By: A0019978490
999
PIN PULL TO FASTENER
999
BUSHING LEVER TO CAB
999
ROD CENTRAL LOCK
999
SEAL ROD THRU CAB
999
BRACKET ROD THRU CAB
999
CONSOLE ADDITIONAL WORK ON FRAME
999
HANDLE CAB LOCKING MECHANISM
999
LEVER CAB LOCKING MECHANISM
999
SUPPORT
999
SHIM BEARING BRACKET TO FRAME
999
SCREW , Replaced By: N304017008034
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
CLAMP LINE MOUNTING
