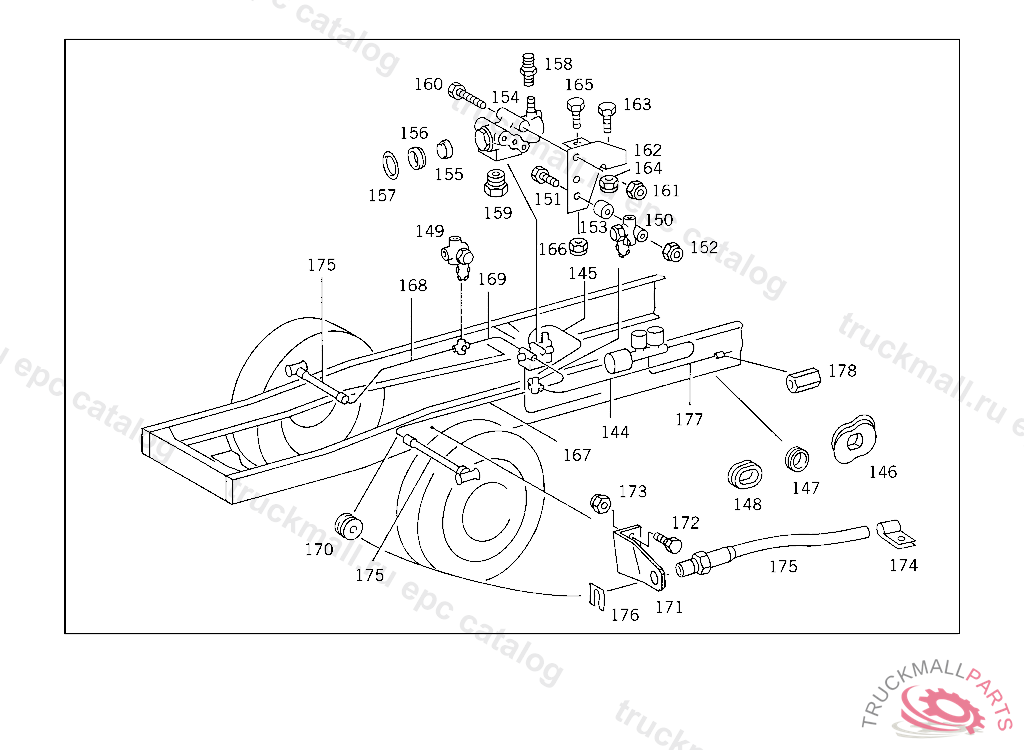

Поз.
Артикул
Описание
144
LINE FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION 900 MM
144
LINE FROM PRESSURE CONTROL VALVE TO FRONT AXLE BRAKE HOSE,LEFT
145
LINE FROM TEST CONNECTION TO VALVE 400 MM,4 478330
146
GROMMET FUEL LINE THRU FRAME SIDE MEMBER,4 367061
147
GROMMET OIL DELIVERY LINE THRU FENDER SUPPORT
148
GROMMET BATTERY CABLE THRU SIDE MEMBER
149
TEST CONNECTION FRONT AXLE
149
TEST CONNECTION FRONT AXLE
150
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
150
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
151
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
151
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
152
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
152
NUT , Replaced By: N913004008001
153
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
154
VALVE PRESSURE REGULATOR,4 478330
154
VALVE PRESSURE REGULATOR,4 478330
155
SEAL RINGTO 000 431 46 13,4 478330
156
SEAL RINGTO 000 431 46 13,4 478330
157
SEAL RINGWABCO
157
SEAL RING , Replaced By: A0019975945
158
VALVE , Replaced By: A3075530107
158
VALVE CLUTCH SLAVE CYLINDER
159
SCREW PLUG CONNECTION "1","2",4 478330
160
SCREW REAR AXLE REGULATING SOLENOID VALVE
161
NUT , Replaced By: N913004008001
161
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
162
BRACKET (REGULATING VALVE),4 478330
163
SCREW BRACKET TO CROSS CONNECTION STRUT
163
SCREW , Replaced By: N304017008034
164
NUT , Replaced By: N913004008001
164
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
165
SCREW END PIECE TO EXHAUST PIPE M 10X25
166
NUT , Replaced By: N910113010000
166
NUT STRAP TO BRACKET
167
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL 2200 MM,4 478329
167
LINE FROM VALVE TO BRAKE HOSE 1500 MM
168
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL 1700 MM,4 478329
168
LINE FROM VALVE TO BRAKE HOSE 1600 MM
169
LINE FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE 500 MM
170
GROMMET LINE MOUNTING 19/13 MM
171
BRACKET BRAKE HOSE,FRONT
174
CLAMP ,K 147121, Replaced By: N000000000319
174
CLAMP , Replaced By: N916016008200
175
BRAKE HOSE , Replaced By: A0004288935
175
BRAKE HOSE FRONT 700 MM,4 615089-4 629024
175
BRAKE HOSE FRONT 700 MM,4 615089-4 629024
176
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
176
BRACKET. LOCK , Replaced By: A6525040038
177
LINE FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER 700 MM,4 644237
177
LINE FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE 1100 MM
178
CONNECTOR OIL DELIVERY LINE
999
CLAMP , Replaced By: N916026020001
999
NUT , Replaced By: N913004008001
999
CLIP , NOT USED
999
LOCK WASHER BRAKE LINE TO REAR AXLE, NOT USED
999
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
PULL ROD , Replaced By: N900331008420
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
FITTING , Replaced By: A0009907771
999
NUT CHECK VALVE TO AIR RESERVOIR
999
INSULATING HOSE
999
SNAP RING GEAR INDICATOR TO INSTRUMENT PANEL
999
FITTING , Replaced By: A0019902771
999
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
999
SCREW PEDAL TO CAB FLOOR
999
NUT BALL PIVOT TO LEVER
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017008034
999
LOCK RING22X1.2,TO 001 431 71 14
999
ADHESIVE FOIL GUIDE SIGN
999
BRACKET BUMPER,RIGHT, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
BRACKET PRESSURE GAUGE LINE TO BRACKET
999
BRACKET , NOT USED
999
STRAP , NOT USED
999
BRACKET SENSOR CABLE TO FRONT AXLE
999
PIN , NOT USED
999
BRACKET , NOT USED
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
BRACKET , Replaced By: A3604292940
999
BRACKET , Replaced By: A3184280240
999
NUT RETAINER BRACKET MOUNTING
999
BRACKET LINE MOUNTING
999
CLAMP BRAKE LINE MOUNTING
999
SPHERICAL PIECE , Replaced By: A3025860242
999
SEAL RINGTO 000 431 46 13,4 478330
999
SEAL RING
999
SEAL RINGTO 000 431 43 12,000 431 44 12, NO LONGER AVAILABLE
999
WHEEL BRAKE CYLINDER , WITH OFFSET BLEEDER CONNECTION WITH 8-MM,OR 10-MM,MOUNTING SCREWS EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 847617, Replaced By: A0044206818
999
WHEEL BRAKE CYLINDER , WITH 8-MM,OR 10-MM,MOUNTING SCREWS, Replaced By: A0074202018
999
SEAL RINGTO 000 439 95 14,4 847617
999
SPRING
999
FITTING ,4 261891
999
ELBOW FITTING DELIVERY LINE TO PUMP
999
SPRING
999
SEAL RINGTO 000 431 86 14
999
PLUG
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
F-FITTING BRAKE PRESSURE REGULATOR CONNECTION, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
ELBOW FITTING , Replaced By: A0029901271
999
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
999
NUT RETAINER , Replaced By: A3229900091
999
T-FITTING RELAY VALVE,CONNECTION: "12"
999
CAPTO 001 431 71 14
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
FELT STRIPTO 000 431 43 12,000 431 44 12
999
SEAL RING
999
SEAL RINGTO 000 431 43 12,000 431 44 12
999
CUP , Replaced By: A0015864342
999
PISTONTO 000 431 43 12,000 431 44 12
999
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
999
LEVER
999
LEVER TOOTHED
999
GUIDE BUSHING
999
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
999
FILTER BOTTOMTO 000 431 24 14
999
SLIDETO 000 431 50 14,000 431 24 14
999
SPACER RING ,4 428462
999
ELBOW FITTING
999
SEAL RING , Replaced By: N915045012100
999
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
PROTECTIVE CAP , Replaced By: A0004210887
999
BLEEDER VALVE , Replaced By: A0004310265
