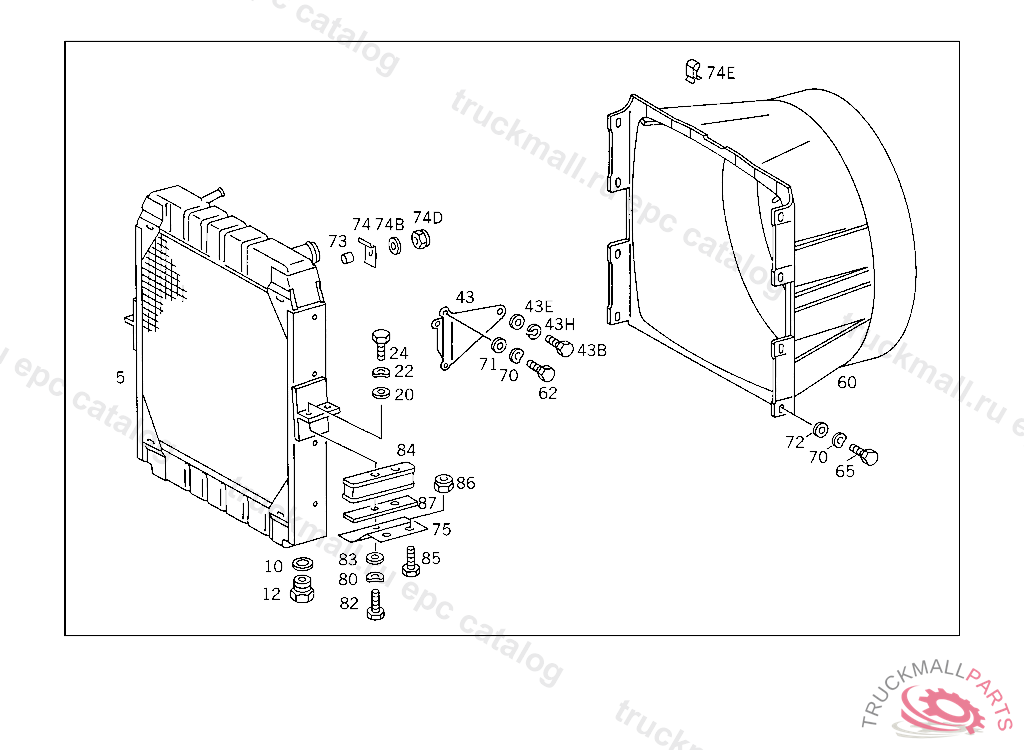

Поз.
Артикул
Описание
5
RADIATOR ,4 428845
5
RADIATOR ,4 428844
5
RADIATOR ,4 428844
5
RADIATOR ,4 232358
5
RADIATOR ,4 428845
5
RADIATOR ,4 428845
10
SEAL RING FUEL LINE TO FEED PUMP
12
SCREW PLUG , Replaced By: N007604014101
12
SCREW PLUG WATER DRAIN
20
WASHER RADIATOR TO RUBBER MOUNTING
20
WASHER , Replaced By: N000125010532
22
SPRING WASHER STEERING COLUMN BRACKET TO CAB
24
SCREW END PIECE TO EXHAUST PIPE M 10X25
43
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
43
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
60
FAN SHROUD ,4 232359
62
SCREW LICENSE PLATE TO BRACKET
62
SCREW , Replaced By: N304017006020
62
SCREW COVER PLATE TO BRACKET
65
SCREW COVER PLATE TO COVER PLATE M 6 X 12
65
SCREW , Replaced By: N304017006018
65
SCREW COVER PLATE TO BRACKET
70
SPRING WASHER LICENSE PLATE TO BRACKET
71
WASHER OIL DIPSTICK TO RADIATOR,4 410133
72
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
73
SPACER RING , Replaced By: A3469910040
73
SPACER SLEEVE. SPACER TUBE FAN SHROUD TO RADIATOR,4 1619994 428844
74
SUPPORTING PLATE FAN SHROUD TO RADIATOR,4 1619994 428844
75
SUPPORT RADIATOR MOUNTING,4 428845
75
SUPPORT RADIATOR MOUNTING,4 242404
75
BRACKET RADIATOR MOUNTING,4 428844
80
SPRING WASHER STEERING COLUMN BRACKET TO CAB
82
SCREW EXHAUST PIPE TO BRACKET
82
SCREW REAR EXHAUST PIPE TO MUFFLER
82
SCREW END PIECE TO EXHAUST PIPE M 10X25
83
WASHER RADIATOR TO RUBBER MOUNTING
83
WASHER , Replaced By: N000125010532
84
RUBBER MOUNTING RADIATOR MOUNTING,4 428845
84
RUBBER MOUNTING RADIATOR
85
SCREW HEATING WATER LINE TO SIDE MEMBER, 380.0/1,381.0/1,383.0/1,385.0/1 UP TO CHASSIS 4 661119,380.2,381.2/3,385.2 UP TO CHASSIS 4 661211
86
NUT SUPPORT TO SIDE MEMBER
87
SHIM RUBBER MOUNTING TO BRACKET
87
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
87
SHIM RUBBER MOUNTING TO BRACKET
999
TANK , Replaced By: A3815000749
999
BRACKET , Replaced By: A3815012720
999
HOSE FROM HEATING LINE TO HEATING LINE
999
CLAMP , Replaced By: A3609950601
999
CLAMP , Replaced By: A3609951201
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
SHIM , Replaced By: A3815010295
999
FAN SHROUD , SHORTEN BY 65 MM ON REPALCEMENT DELIVERY UP TO CHASSIS 4 232358, Replaced By: A3835050355
999
SUPPORT RADIATOR MOUNTING,4 242404
999
BRACKET , Replaced By: A3855010220
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET,4 410133
999
WASHER BRACKET TO RIGHT FENDER, 415 5 014668 416 5 000515 417 4 972023
999
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
NUT STRAP TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT , Replaced By: N910113010000
