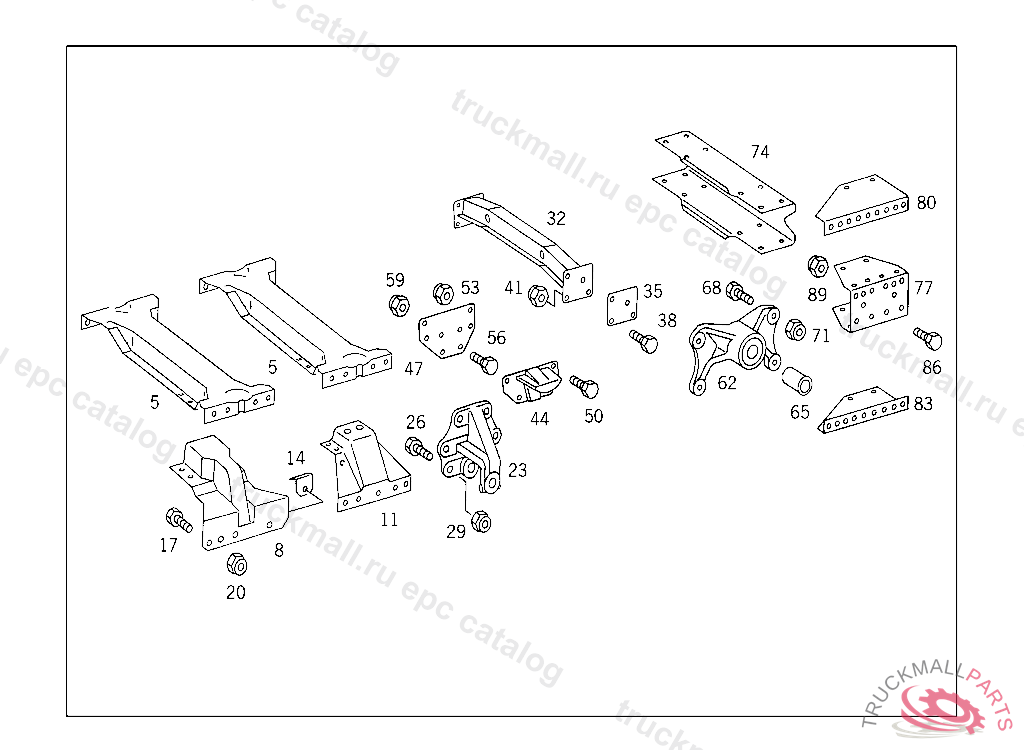

Поз.
Артикул
Описание
5
CROSS MEMBERNO.4
8
STRUTNO.4,5
14
SHIMNO.4,5
17
SCREW BATTERY CASE
20
NUT BRACKET TO BATTERY CASE
23
REAR SPRING BRACKET (REAR SPRING BRACKET),FRONT
26
SCREW MOUNTING TO CONSOLE M 14X55
29
NUT , Replaced By: N910113014000
32
CROSS MEMBER REAR SHOCK ABSORBERS NO.6
35
MOUNTING PLATE CROSS MEMBER TO SIDE MEMBERS
38
SCREW BRACKET TO RIGHT SIDE MEMBER
41
NUT BRACKET TO SIDE MEMBER
44
HELPER SPRING BRACKET REAR RIGHT
44
HELPER SPRING BRACKET REAR LEFT
44
HELPER SPRING BRACKET FRONT RIGHT
44
HELPER SPRING BRACKET FRONT LEFT
47
PLATE HELPER SPRING BRACKET,REAR
47
PLATE HELPER SPRING BRACKET,FRONT
47
PLATE , Replaced By: A3843257254, +001A3843257354
50
SCREW , Replaced By: N308676014012
53
NUT , Replaced By: N910113014000
56
SCREW BRACKET TO FRAME
59
NUT , Replaced By: N910113014000
62
SPRING BRACKET (REAR SPRING BRACKET),REAR
65
BUSHING
65
BUSHING
68
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER
68
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
71
NUT , Replaced By: N910113014000
74
CROSS MEMBER (REAR CROSS MEMBER)
77
GUSSET PLATE
86
SCREW GUSSET PLATE TO SIDE MEMBER
89
NUT BRACKET TO BATTERY CASE
