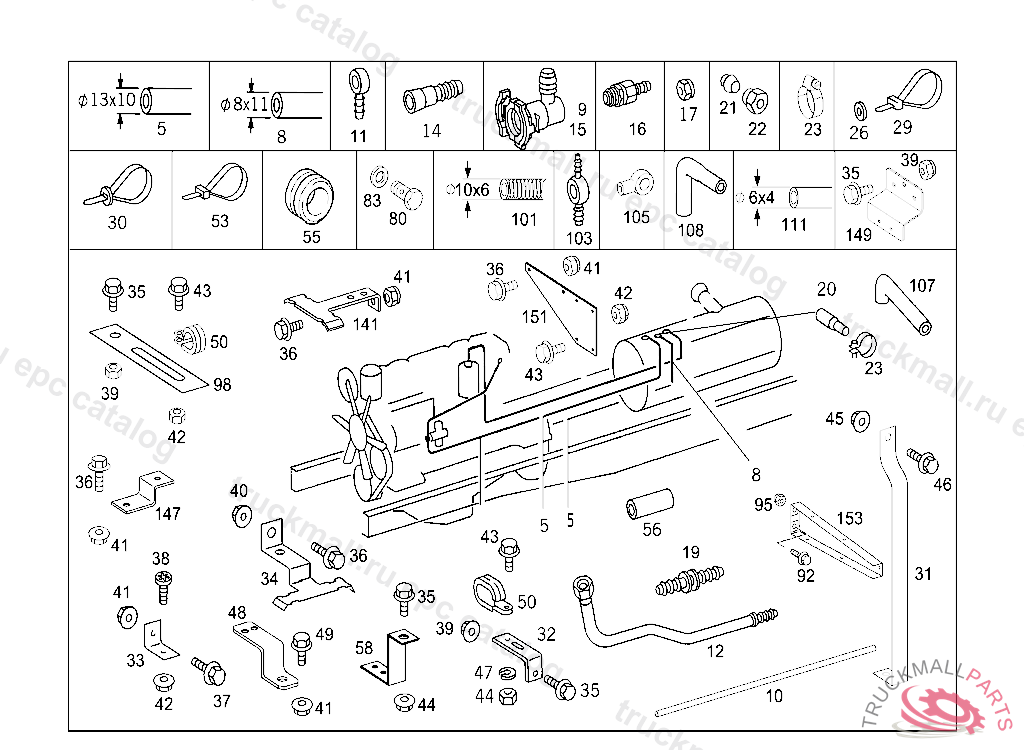

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
8
HOSE WATER DRAIN
8
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
9
FITTING
10
11
BANJO UNION10/14
11
BANJO UNION HOSE WIDTH, / I.D., 10/16 MM
12
LINE AT SENDER UNIT,D 372681
12
LINE FEED & RETURN
14
FITTING
14
CONNECTOR LINE CONNECTION
17
UNION NUT RETURN LINE
19
CONNECTOR AT AIR COMPRESSOR, NOT USED
20
HOSE
20
HOSE SENDER UNIT
22
NUT. UNION NUT RETURN
23
CLAMP , Replaced By: N000000000667
23
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
26
WASHER BRACKET TO LEFT SIDE MEMBER
26
WASHER , Replaced By: A3609902340
30
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
30
LOOM TIE LINE MOUNTING
31
35
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
36
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
40
NUT ENGINE MOUNTING M8
43
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
43
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
43
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
44
NUT BRACKET TO FIRE WALL
44
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
45
NUT BRACKET TO SIDE MEMBER M12X1.5
46
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
50
CLAMP20-30
50
CLAMP HOSE TO FLANGE AND TO VALVE
50
CLAMP COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
50
CLAMP LINES TO BRACKET
53
LOOM TIE ELECTRIC CABLE MOUNTING
53
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
56
HOSE VIOLET
56
HOSE WITHE
56
HOSE GREEN
58
BRACKET
80
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
80
HOLLOW SCREW OIL LINE
80
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
80
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
80
HOLLOW SCREW
83
SEAL RING INJECTION PUMP
83
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
92
HEXAGON HEAD BOLT. SCREW SPACER TUBE TO BRACKET M 14X1.5X100
95
THRUST RING LOCKING VALVE
95
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
107
HOSE FUEL LINE TO RETURN CONNECTION
141
BRACKET AT RIGHT SIDE MEMBER
