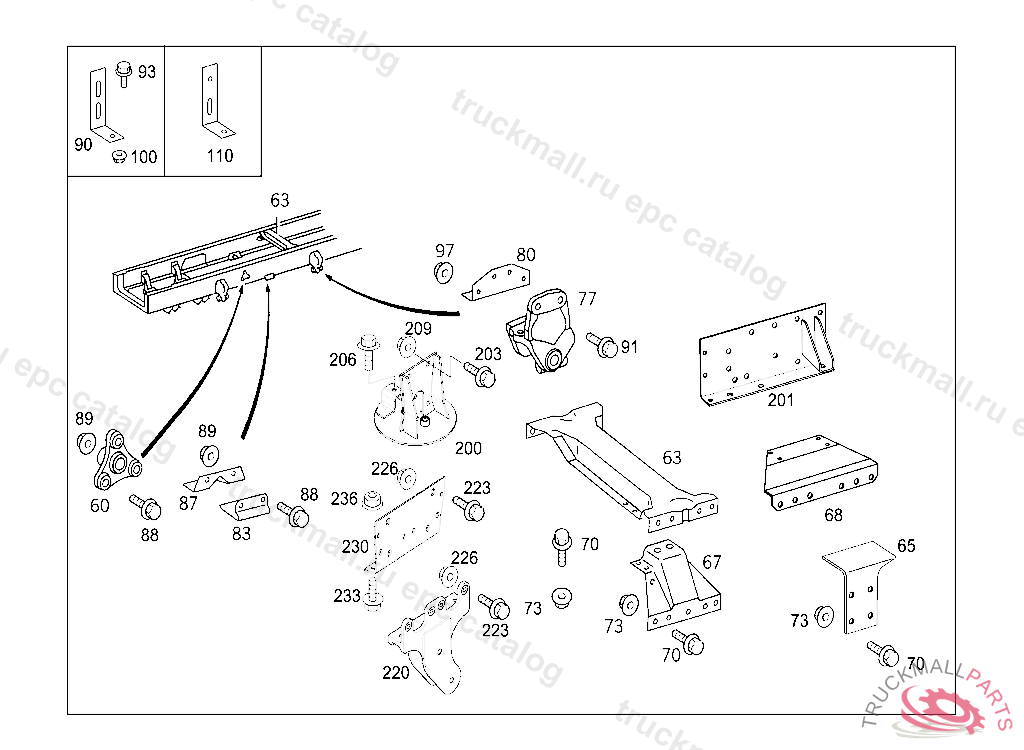

Поз.
Артикул
Описание
60
60
BEARING BRACKET STABILIZER MOUNTING
63
CROSS MEMBERNO.4
65
65
67
REINFORCEMENT
70
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
70
HEXALOBULAR BOLT. SCREW OIL TANK TO STRAP M 10X30
70
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
70
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
73
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
73
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
73
NUT SUPPORT TO FRAME
73
NUT STEERING SUPPORT TO FRAME
77
FRONT SPRING BRACKET FRONT SPRING,FRONT LEFT AND RIGHT, TO BE ADAPTED DURING ASSEMBLY
80
ANGLE RIGHT REAR
80
ANGLE LEFT REAR
83
STAY FRONT SPRING STOP
87
STAY FRONT SPRING STOP
88
SCREW BRACKET TO SIDE MEMBER M10X35
88
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
89
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
91
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M16 X 1.5 X 50
91
SCREW BEARING BRACKET TO SIDE MEMBER
91
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
97
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
97
NUT SUPPORT TO FRAME
97
HEXAGON NUT WHEEL CYLINDER TO BRAKE ANCHOR,DISC BRAKE
